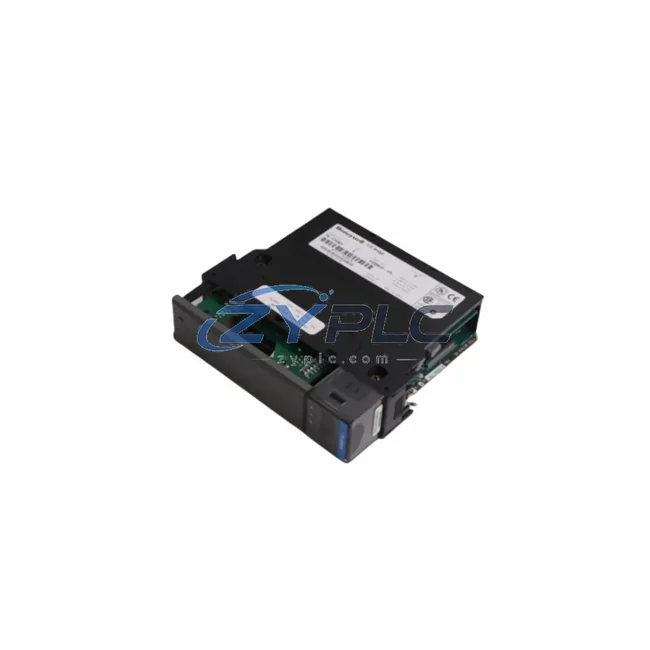

In modern safety-instrumented system (SIS) design, network-layer integrity is as critical as the logic solver itself. The Honeywell TK-FTEB01 51309512-175 Fault-Tolerant Ethernet Bridge is engineered to serve as the backbone of high-availability communication within the Honeywell Safety Manager platform — a SIL 3-capable safety controller widely deployed across oil and gas, petrochemical, power generation, and process manufacturing industries. This module does not operate in isolation; it is a precision-fit component within a layered control architecture where every node, from the field instrument to the enterprise historian, must communicate with deterministic reliability.

The TK-FTEB01 provides dual-path Ethernet redundancy at the network layer, ensuring that a single cable fault, switch failure, or port degradation does not interrupt safety-critical data transmission between the Safety Manager CPU and the supervisory control network. By maintaining two independent Ethernet paths simultaneously, the bridge enables seamless failover without operator intervention — a fundamental requirement in SIL-rated architectures where communication loss can trigger spurious shutdowns or, worse, mask a genuine process hazard.

From a system architecture perspective, the TK-FTEB01 occupies the network layer between the Safety Manager’s logic solver and the plant-wide DCS or SCADA infrastructure. It interfaces directly with the Honeywell Safety Manager SC CPU (TK-PRCB01) and communicates upstream to the Experion PKS distributed control system via standard Industrial Ethernet protocols. This system integration capability allows safety data — including diagnostic status, trip logs, and bypass states — to be surfaced in real time at the operator workstation without compromising the integrity of the safety loop itself.

Within the broader control cabinet, the TK-FTEB01 is typically installed alongside the TK-PRS021 Power Supply Module, which provides the regulated 24 VDC rail required for stable bridge operation. The power architecture itself is often configured in a redundant 1+1 arrangement using dual TK-PRS021 units, ensuring that a power supply fault does not propagate to the communication layer. This design philosophy — redundancy at every layer — is what distinguishes a properly engineered SIS from a basic interlock system.

At the I/O layer, the Safety Manager platform supports a range of digital and analog safety I/O modules, including the TK-SDI816 (8-channel digital input), TK-SDO816 (8-channel digital output), and TK-SAI816 (8-channel analog input), all of which feed process data to the CPU that the TK-FTEB01 then bridges to the supervisory network. The integrity of this data path — from field sensor through I/O module, CPU, and Ethernet bridge to the control room — is what the TK-FTEB01 is specifically designed to protect.

For installations requiring integration with third-party DCS platforms or legacy SCADA systems, the TK-FTEB01 supports standard Modbus TCP and OPC DA/UA communication, enabling system integration with historians, alarm management systems, and asset management platforms without requiring proprietary middleware. This open-protocol capability significantly reduces engineering hours during commissioning and simplifies long-term maintenance by allowing standard network diagnostic tools to monitor bridge health.

In high-demand applications such as offshore platform emergency shutdown systems, refinery fired heater protection, or turbine overspeed protection, the TK-FTEB01 is often paired with the TK-FTEB01 in a mirrored redundant configuration, where both bridges operate simultaneously and the system automatically selects the active path based on link quality. This architecture eliminates the Ethernet bridge as a single point of failure — a requirement under IEC 61511 for SIL 2 and SIL 3 loop certification.

From a maintenance and lifecycle perspective, the TK-FTEB01 supports hot-swap replacement without requiring a safety system shutdown, provided the redundant bridge remains active. This capability is critical in continuous-process industries where planned downtime windows are measured in hours per year. Spare module availability, combined with a warranty terms confirmed during quotation covering manufacturing defects and functional failures, ensures that maintenance teams can respond to module faults without extended lead times disrupting plant availability.

Engineering teams integrating the TK-FTEB01 into new or retrofit Safety Manager installations should also consider the TK-FTEB01 51309512-175 part number specificity — the suffix 51309512-175 identifies the exact hardware revision and firmware baseline, which is essential for maintaining system homogeneity across multi-cabinet or multi-train SIS architectures. Mixing hardware revisions without validation can introduce compatibility issues that only manifest under specific fault conditions, making precise part number matching a best practice in safety system procurement.

Product Specification Table

System Compatibility Notes

The TK-FTEB01 achieves its full value only when viewed within the complete Safety Manager system architecture. At the logic solver layer, the TK-PRCB01 Safety Manager CPU executes the safety application program and generates the process data that the TK-FTEB01 transmits to the supervisory network. The CPU communicates with the bridge via the internal Safety Manager backplane bus, which also hosts the TK-SDI816 digital input modules and TK-SDO816 digital output modules that interface with field-level sensors and final control elements.

Power integrity across the system is maintained by the TK-PRS021 Power Supply Module, typically deployed in a redundant pair to eliminate the power rail as a single point of failure. At the human-machine interface layer, the Honeywell Experion PKS Station or a dedicated safety overview display receives real-time process and diagnostic data from the TK-FTEB01 via the plant Ethernet backbone, enabling operators to monitor safety system status without direct access to the SIS cabinet.

For installations requiring field-level communication beyond hardwired I/O, the Safety Manager platform supports integration with FOUNDATION Fieldbus and HART instruments via dedicated interface modules, with diagnostic data aggregated at the CPU and forwarded through the TK-FTEB01 to the asset management system. In multi-train or multi-unit facilities, the TK-FTEB01 enables a single Experion PKS node to monitor multiple Safety Manager controllers simultaneously, reducing the operator interface footprint while maintaining full diagnostic visibility across all safety loops.

Industrial Application Notes

In oil and gas processing facilities, the TK-FTEB01 is deployed in emergency shutdown (ESD) and fire and gas (F&G) systems where continuous Ethernet connectivity between the Safety Manager and the control room is a regulatory requirement under IEC 61511 and local safety case documentation. The fault-tolerant bridge ensures that trip events, bypass states, and diagnostic alarms are transmitted to the DCS historian without interruption, supporting post-incident investigation and regulatory reporting.

In power generation applications — including gas turbine control, boiler management, and substation protection — the TK-FTEB01 provides the network-layer link between the Safety Manager and the plant SCADA system, enabling remote monitoring of turbine trip conditions and safety system health from the central control room. The sub-millisecond failover capability is particularly valuable in these applications, where communication latency can affect alarm response times.

In petrochemical and refinery environments, the TK-FTEB01 supports integration with Honeywell’s Safety Manager SC platform in high-process-demand applications such as reactor protection, fired heater safety, and compressor anti-surge control. The module’s ability to maintain system integration with the Experion PKS DCS allows process engineers to correlate safety system events with process trends in real time, accelerating root cause analysis and reducing mean time to repair.

In water and wastewater treatment facilities operating under IEC 61511 functional safety requirements, the TK-FTEB01 enables remote monitoring of pump protection and chemical dosing safety systems from a central SCADA platform, reducing the need for on-site safety system inspections and supporting predictive maintenance programs.

Product Compatibility FAQ

Q1: Is the TK-FTEB01 51309512-175 compatible with both the original Safety Manager and the Safety Manager SC platform?
The TK-FTEB01 is designed for the Honeywell Safety Manager platform family. Compatibility with the Safety Manager SC (System Controller) variant should be confirmed against the specific system revision and firmware baseline documented in the Honeywell Safety Manager System Release Notes. The part number suffix 51309512-175 identifies a specific hardware revision; always verify compatibility with your system integrator or Honeywell technical support before procurement to ensure architectural consistency across your SIS installation.

Q2: Can the TK-FTEB01 be replaced online without shutting down the Safety Manager system?
Yes — when deployed in a redundant pair configuration (two TK-FTEB01 modules operating in active-active mode), the failed module can be hot-swapped while the redundant bridge maintains Ethernet connectivity. This capability is a key design feature for continuous-process industries where safety system downtime is not operationally acceptable. Single-module installations require a controlled maintenance window for replacement. All replacement modules supplied by ZYPLC are covered under a warranty terms confirmed during quotation and are tested for functional compliance prior to shipment.

Q3: What network infrastructure is required to support the TK-FTEB01’s fault-tolerant Ethernet capability?
The TK-FTEB01 requires two independent Ethernet paths — typically implemented using separate managed industrial switches connected to physically separate network segments or VLANs. The bridge automatically monitors both paths and performs bumpless switchover in under 1 ms upon detecting a link fault. For maximum fault tolerance, the two Ethernet paths should be routed through separate cable trays, separate switch chassis, and separate UPS circuits. Standard Cat5e or Cat6 cabling is supported; fiber optic uplinks are recommended for long-distance runs or electrically noisy environments. system integration with Experion PKS or third-party SCADA systems is supported via standard Modbus TCP or OPC UA without additional gateway hardware.
