Honeywell TK-FXX102 Industrial Network Interface for Experion PKS Systems

Honeywell TK-FXX102: Industrial Data Link for Smart Factory Connectivity

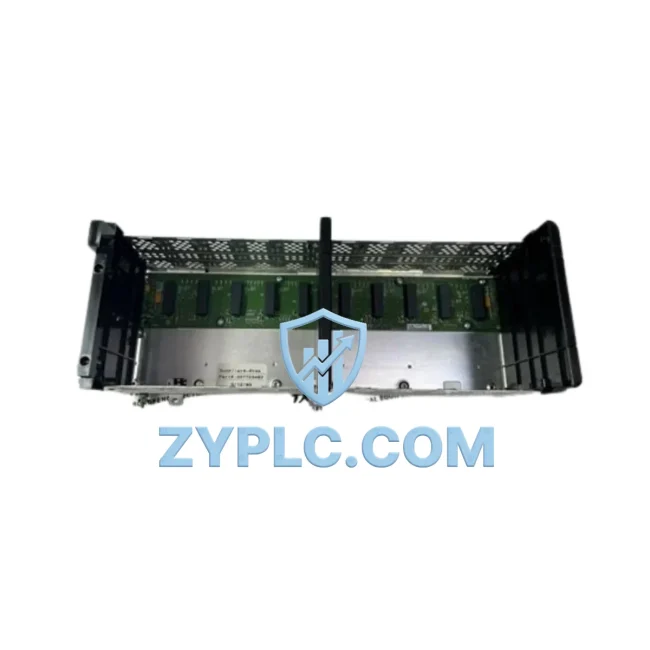

The Honeywell TK-FXX102 is a high-density 10-slot rack and backplane module engineered for the Experion PKS (Process Knowledge System) distributed control architecture. Designed to serve as the physical and logical backbone of field-level communication, the TK-FXX102 enables seamless data exchange between field instruments, I/O modules, controllers, and supervisory systems across complex industrial environments. Whether deployed in oil and gas processing, chemical manufacturing, power generation, or advanced discrete automation, this rack module delivers the structural integrity and signal integrity that modern smart factories demand.

At the heart of any Experion PKS installation, the TK-FXX102 backplane provides the high-speed internal bus that interconnects C300 Process Controllers, IOTA (I/O Termination Assemblies), and communication interface cards. This internal data highway ensures deterministic, low-latency signal routing from field transmitters and actuators up through the control layer and into the SCADA and HMI environment — eliminating the data isolation that plagues legacy point-to-point wiring architectures.

Network Communication Table

Connected Automation Data Flow

In a fully integrated Experion PKS environment, the TK-FXX102 rack sits at the convergence point of multiple data streams. Field-level sensors — including pressure transmitters, flow meters, and temperature sensors communicating over HART protocol — connect through Honeywell IOLIM (I/O Link Interface Modules) and SM-Series Safety Managers into the backplane slots of the TK-FXX102. The backplane then routes these signals to the resident C300 Process Controller, which executes control logic at scan rates optimized for process-critical applications.

Upstream, the C300 communicates over FTE (Fault Tolerant Ethernet) — Honeywell’s proprietary dual-ring Ethernet architecture — to the Experion PKS Server and connected HMIWeb Display Stations. Operators monitoring the plant floor through Experion Station HMI receive real-time process values, alarm states, and trend data with sub-second refresh rates. The TK-FXX102 backplane’s redundant signal paths ensure that even in the event of a single-point module failure, data continuity is maintained without process interruption.

For facilities integrating legacy equipment, the TK-FXX102 rack can host Modbus TCP/RTU Gateway Modules alongside native PKS I/O cards, enabling protocol bridging between older PLCs, variable frequency drives (VFDs), and the Experion DCS layer. This makes the TK-FXX102 an essential component in brownfield modernization projects where Allen-Bradley ControlLogix or Siemens S7-series PLCs must coexist with Honeywell process controllers under a unified SCADA umbrella. Remote I/O nodes connected via Honeywell PMIO (Process Manager I/O) modules extend the data reach to distant field junction boxes, with all signals converging back through the TK-FXX102 backplane for centralized processing.

At the edge, industrial Ethernet switches with managed VLAN segmentation ensure that FTE traffic remains isolated from corporate IT networks, preserving OT cybersecurity posture while enabling data handoff to MES (Manufacturing Execution Systems) and ERP platforms via OPC UA gateways. The TK-FXX102 thus forms the physical anchor of a data chain that stretches from the sensor on the pipe to the dashboard in the control room.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols, proprietary fieldbuses, and siloed control islands. The TK-FXX102 directly addresses this by providing a unified backplane infrastructure within the Experion PKS ecosystem, where all I/O modules — regardless of signal type (analog, digital, HART, serial) — share a common communication fabric managed by the C300 controller.

For plants operating mixed-vendor environments, the TK-FXX102’s slot flexibility allows integration of protocol conversion cards that bridge PROFIBUS DP, DeviceNet, and Foundation Fieldbus H1 devices into the PKS data model. This eliminates the need for standalone protocol converters and reduces wiring complexity, while giving SCADA operators a single unified tag namespace across all field devices.

Remote monitoring and diagnostics are equally enhanced. Through the Experion PKS server’s built-in asset management tools, maintenance engineers can perform online module health checks, review communication error logs, and execute firmware updates on I/O cards seated in the TK-FXX102 rack — all without interrupting live process control. This capability is critical for achieving the production line transparency and predictive maintenance goals that define Industry 4.0 deployments.

System expansion is straightforward: additional TK-FXX102 racks can be daisy-chained via the FTE network, scaling the I/O count without architectural redesign. Each new rack integrates seamlessly into the existing Experion PKS configuration database, with automatic tag discovery reducing commissioning time. All units supplied by ZYPLC undergo pre-shipment functional testing, verifying backplane continuity, slot communication, and module recognition before dispatch.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell TK-FXX102 support in an Experion PKS system?
The TK-FXX102 backplane natively supports Honeywell’s FTE (Fault Tolerant Ethernet) for controller-to-server communication, and can host I/O modules supporting HART, Modbus RTU/TCP, Foundation Fieldbus H1, PROFIBUS DP, and DeviceNet depending on the interface cards installed. OPC DA and OPC UA are supported at the server level for SCADA and MES integration.

Q2: How does the TK-FXX102 ensure network stability and redundancy in critical process environments?
The TK-FXX102 is designed for use within Honeywell’s FTE dual-ring Ethernet architecture, which provides automatic failover in the event of a network segment failure. The backplane itself supports redundant controller configurations (C300 pairs), ensuring that a single module or cable fault does not result in process control interruption. All ZYPLC-supplied units are tested for backplane signal integrity prior to shipment.

Q3: Can the TK-FXX102 be integrated with third-party SCADA systems and HMI platforms?
Yes. While the TK-FXX102 is optimized for the Experion PKS environment, data from the system is accessible to third-party SCADA platforms (including Wonderware, iFIX, and Ignition) via OPC DA/UA servers running on the Experion PKS host. Protocol gateway modules installed in the rack can also expose Modbus TCP endpoints for legacy SCADA connectivity.

Q4: What warranty and quality assurance does ZYPLC provide for the TK-FXX102?
Every Honeywell TK-FXX102 supplied by ZYPLC carries a 12-month warranty covering manufacturing defects and functional failures. Each unit undergoes pre-shipment testing including backplane continuity verification, slot communication checks, and visual inspection. Expedited global shipping via DHL and FedEx is available, with tracking provided upon dispatch. For RFQ and technical support, contact: +86 19859288691 | [email protected]
