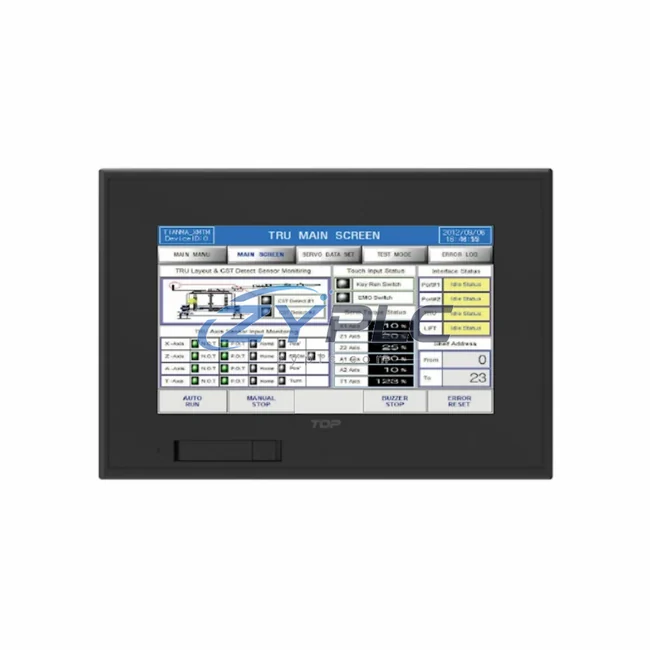

Honeywell TOPRE0700WD HMI Panel for TOPRE Series

Honeywell TOPRE0700WD HMI Panel: Control System and system integration

The Honeywell TOPRE0700WD is a 7-inch widescreen HMI operator panel engineered for seamless deployment within the TOPRE Series distributed control and PLC architecture. Rather than functioning as a standalone display device, the TOPRE0700WD is designed as an integral node within a layered automation system — bridging the human-machine interface layer with the control layer, I/O layer, network layer, and field execution layer to deliver unified operational visibility and command capability across the entire process.

In modern industrial automation, the HMI is no longer a peripheral accessory. It is the convergence point where real-time data from field instruments, I/O modules, communication gateways, and CPU processors is rendered into actionable information for operators and engineers. The TOPRE0700WD fulfills this role with precision, supporting the TOPRE Series control platform’s native communication protocols and tag-based data exchange architecture, ensuring that every signal — from analog input cards to digital output relays — is accurately represented on screen without latency or data loss.

System integrators working with the TOPRE Series architecture will find that the TOPRE0700WD reduces engineering overhead significantly. Its pre-configured compatibility with TOPRE Series CPUs, such as the TOPRE-CPU300 and TOPRE-CPU500 processor modules, eliminates the need for custom protocol bridging or third-party middleware. The panel communicates directly over the TOPRE backplane bus and supports Ethernet-based SCADA connectivity, enabling both local operator control and remote supervisory access within the same network topology.

From a system architecture perspective, the TOPRE0700WD occupies the HMI layer while maintaining tight coordination with the I/O layer through the TOPRE-DI16 digital input module, TOPRE-DO16 digital output module, and TOPRE-AI8 analog input module. Process variables collected by these I/O cards are passed through the TOPRE Series CPU and rendered on the TOPRE0700WD display in real time, supporting alarm management, trend visualization, and operator setpoint adjustment without requiring a separate SCADA workstation for routine operations.

Power architecture compatibility is equally important in system design. The TOPRE0700WD operates within the standard 24VDC supply range common to the TOPRE Series control cabinet, allowing it to share the same TOPRE-PSU24 power supply module used by the CPU rack and I/O expansion chassis. This simplifies cabinet wiring, reduces component count, and ensures that the HMI remains operational during partial power events when the power supply is configured with redundancy.

For applications requiring high-availability control, the TOPRE0700WD supports hot-standby CPU redundancy configurations. When paired with a redundant TOPRE-CPU500R processor pair and the TOPRE-RMU redundancy management unit, the HMI automatically reconnects to the active CPU following a failover event, maintaining operator visibility without manual intervention. This capability is critical in continuous process industries such as petrochemical refining, power generation, and water treatment, where operator awareness must be maintained even during controller switchover events.

Communication stability is a defining characteristic of the TOPRE0700WD’s integration profile. The panel supports Modbus TCP, EtherNet/IP, and the TOPRE proprietary fieldbus protocol, enabling it to interface not only with TOPRE Series PLCs but also with third-party variable frequency drives, motor control centers, and intelligent field devices within the same control network. This multi-protocol capability makes the TOPRE0700WD a versatile HMI solution for hybrid automation environments where legacy equipment must coexist with modern control platforms.

Long-term maintainability is a core design principle of the TOPRE0700WD. The panel’s modular construction allows for display replacement and backlight servicing without removing the entire unit from the control cabinet door. Configuration data is stored on a removable SD card, enabling rapid panel replacement in the field — a technician can swap a failed unit and restore full functionality within minutes by transferring the configuration card, minimizing unplanned downtime in production-critical environments.

All TOPRE0700WD units supplied by ZYPLC are fully tested prior to shipment, with functional verification of display output, communication ports, touch input calibration, and power supply compatibility. Each unit is covered by a warranty terms confirmed during quotation, providing engineering teams and procurement managers with the assurance needed for long-term project planning and spare parts inventory management.

Product Specification Table

System Compatibility Notes

The TOPRE0700WD achieves its full operational value when deployed as part of a coordinated TOPRE Series control system. A typical architecture begins with the TOPRE-CPU500 as the central processing unit, managing program execution, data acquisition, and communication scheduling across the control network. The TOPRE0700WD connects to this CPU via Ethernet, receiving real-time process data and transmitting operator commands with deterministic response times suitable for process control applications.

The I/O layer, composed of TOPRE-DI16 digital input modules, TOPRE-DO16 digital output modules, and TOPRE-AI8 analog input modules mounted on the TOPRE-BP08 backplane chassis, feeds field signal data to the CPU, which in turn updates the HMI display tags. Operators viewing the TOPRE0700WD screen see live process values — flow rates, temperatures, valve positions, motor run status — derived directly from field instruments without intermediate data conversion.

For applications requiring network-level integration, the TOPRE-GW100 communication gateway bridges the TOPRE fieldbus network to upstream SCADA systems or MES platforms via OPC-UA or Modbus TCP. The TOPRE0700WD complements this gateway by providing local operator control independent of the SCADA network, ensuring that operators retain full control capability even during network outages or SCADA server maintenance windows.

In cabinet-level design, the TOPRE0700WD is typically mounted on the control cabinet door alongside the TOPRE-PSU24 power supply, TOPRE-CPU500 rack, and I/O expansion chassis. Terminal modules such as the TOPRE-TM32 wiring terminal block simplify field wiring connections and support systematic cable management within the cabinet enclosure. This integrated cabinet architecture reduces installation time and supports structured maintenance procedures aligned with IEC 61439 low-voltage switchgear standards.

Industrial Application Notes

The TOPRE0700WD is deployed across a wide range of industrial automation sectors where reliable operator interface capability is essential to process safety and production efficiency.

In manufacturing and discrete production environments, the TOPRE0700WD provides machine-level operator control for assembly lines, packaging machinery, and conveyor systems. Operators use the touch interface to initiate production runs, acknowledge alarms, and monitor cycle counts without leaving the machine station, reducing response time to process deviations and improving overall equipment effectiveness (OEE).

In power generation and electrical distribution applications, the TOPRE0700WD serves as the local operator interface for generator control panels, transformer protection systems, and switchgear automation cabinets. Its IP65-rated front panel withstands the dust and humidity conditions common in substation environments, while its Modbus TCP connectivity enables integration with maintenance planning systems and power quality monitoring platforms.

In petrochemical and oil & gas process plants, the TOPRE0700WD is installed in field control stations and local equipment rooms where operators require immediate access to process variables without relying on the central control room DCS workstation. The panel’s compatibility with TOPRE Series redundant CPU configurations ensures continuous operator visibility during controller failover events, supporting the high-availability requirements of continuous process operations.

In water and wastewater treatment facilities, the TOPRE0700WD provides pump station operators with real-time monitoring of flow rates, tank levels, and chemical dosing parameters. Its compact 7-inch form factor fits within the space constraints of remote pump station control panels, while its Ethernet connectivity supports integration with SCADA systems managing distributed treatment infrastructure across multiple sites.

In mining and metallurgical applications, the TOPRE0700WD withstands the vibration, temperature variation, and electromagnetic interference characteristic of heavy industrial environments. Deployed in crusher control stations, conveyor drive panels, and ore processing control rooms, the panel provides operators with the process visibility needed to maintain throughput targets and respond to equipment fault conditions.

Product Compatibility FAQ

Q1: Is the TOPRE0700WD compatible with both TOPRE-CPU300 and TOPRE-CPU500 processors, and does it support CPU redundancy configurations?
Yes. The TOPRE0700WD is fully compatible with both the TOPRE-CPU300 and TOPRE-CPU500 processor modules via Ethernet communication. For redundancy configurations using the TOPRE-CPU500R paired with the TOPRE-RMU redundancy management unit, the HMI panel automatically reconnects to the active CPU following a failover event without operator intervention, maintaining continuous display of process data throughout the switchover sequence.

Q2: What engineering tools are required to configure the TOPRE0700WD, and how is configuration data managed for field replacement?
The TOPRE0700WD is configured using Honeywell’s TOPRE HMI Builder software, which supports tag import from the TOPRE Series PLC programming environment to eliminate manual tag re-entry. All configuration data, screen layouts, and communication settings are stored on a removable SD card. In the event of panel failure, a replacement unit can be restored to full operational status by transferring the SD card from the failed panel, significantly reducing mean time to repair (MTTR) in production environments.

Q3: What does the warranty terms confirmed during quotation cover, and what is the supply lead time for TOPRE0700WD units from ZYPLC?
All TOPRE0700WD units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment, covering manufacturing defects, communication port failures, display malfunctions, and touch input calibration issues identified under normal operating conditions. Units are functionally tested prior to dispatch. ZYPLC maintains stock inventory of TOPRE0700WD panels to support urgent project requirements, with standard lead times of 3–7 business days for availability confirmed by RFQ units. For procurement inquiries, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
