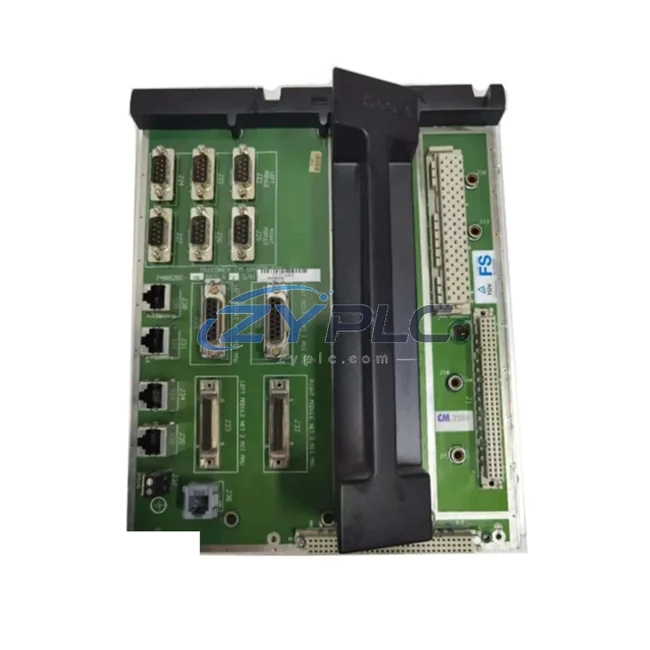

ICS TRIPLEX 7400206-100 TMR Controller Supply for T8000 Systems

ICS TRIPLEX 7400206-100: Industrial Data Link and Smart Factory Connectivity for T8000 Systems

The ICS TRIPLEX 7400206-100 is a high-integrity TMR (Triple Modular Redundancy) Controller Supply module engineered for the T8000 Series safety and control platform. Designed for mission-critical industrial environments, this module serves as a foundational element in the industrial data chain — bridging field-level instrumentation, PLC controllers, remote I/O subsystems, and upper-level SCADA/DCS systems with uncompromising reliability. Whether deployed in oil and gas processing, chemical plants, power generation facilities, or advanced smart manufacturing sites, the 7400206-100 ensures continuous, fault-tolerant power and communication integrity across the entire automation network.

In modern industrial connectivity architectures, the power supply and controller backbone are not passive components — they are active participants in the data flow. The ICS TRIPLEX 7400206-100 supports the T8000 platform’s native communication protocols, enabling seamless integration with Modbus TCP/IP, PROFIBUS DP, and Foundation Fieldbus networks. This allows real-time data exchange between field sensors, actuators, and the central control layer, eliminating latency bottlenecks that can compromise process safety and operational efficiency.

Compatibility & Integration Notes

Connected Automation Data Flow

The ICS TRIPLEX 7400206-100 sits at the heart of a layered industrial automation architecture. At the field level, process sensors — including pressure transmitters, temperature sensors, and flow meters — feed analog and digital signals into the T8000 I/O modules. These signals are conditioned and passed through the backplane to the TMR processor modules, where the 2oo3 voting logic ensures that any single-channel fault is automatically isolated without interrupting the control loop.

Within the T8000 chassis, the 7400206-100 works in concert with companion modules such as the ICS TRIPLEX T8110B TMR processor and the T8431 analog input module, ensuring that power integrity is maintained across all active slots. The controller supply’s redundant output rails feed both the primary and secondary processor boards simultaneously, so that even in the event of a partial power fault, the system continues to operate without triggering a spurious trip.

At the network layer, the T8000 platform communicates upstream via dedicated T8830 communication interface modules, which translate the internal backplane data into Modbus TCP/IP or PROFIBUS DP frames for transmission to the plant’s DeltaV DCS or Honeywell Experion PKS SCADA system. HMI terminals — such as those running Wonderware InTouch or Ignition SCADA — receive real-time process data, alarm states, and diagnostic information from the T8000 platform, enabling operators to monitor critical parameters from the control room or remotely via secure VPN connections.

For remote I/O expansion, the T8000 system supports integration with ICS TRIPLEX T8403 remote I/O modules connected over PROFIBUS DP segments, extending the reach of the safety control system to field junction boxes and marshalling cabinets located hundreds of meters from the main control room. Variable frequency drives (VFDs) and motor control centers connected via PROFIBUS or Modbus RTU also report their operational status — speed, current draw, fault codes — back through the T8000 gateway, providing a unified view of rotating equipment health within the SCADA dashboard.

Edge computing gateways, such as those based on the Moxa UC-8100 or Advantech WISE-5000 series, can be integrated downstream to perform local data preprocessing, buffering historian data during network interruptions, and forwarding aggregated datasets to cloud-based MES or ERP platforms. This end-to-end data chain — from field sensor through the ICS TRIPLEX 7400206-100 powered T8000 controller to the enterprise layer — forms the backbone of a fully transparent, data-driven smart factory.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — where field devices, safety systems, and business systems operate in separate silos with no reliable data exchange. The ICS TRIPLEX 7400206-100 and the T8000 platform directly address this problem through multi-protocol gateway capability and open communication standards.

In plants where older HART-based field instruments coexist with modern Ethernet-connected devices, the T8000 system acts as a protocol bridge, converting HART diagnostic data into OPC-UA tags that can be consumed by any modern SCADA or asset management system. This eliminates the need for costly parallel wiring infrastructure and allows maintenance teams to access valve diagnostics, sensor health data, and calibration records directly from their workstations.

For production line transparency, the 7400206-100 enables the T8000 platform to publish real-time KPIs — including process uptime, safety system demand rates, and inhibit status — to the plant historian (such as OSIsoft PI or Aspentech IP.21), where they can be trended, reported, and benchmarked against production targets. This level of visibility is essential for facilities pursuing IEC 61511 SIL compliance and continuous safety performance monitoring.

Remote diagnostics capability is another key advantage. Through the T8000’s built-in self-test routines and the communication transparency enabled by the 7400206-100, maintenance engineers can remotely interrogate module health, check power rail voltages, review fault logs, and initiate proof tests — all without requiring physical access to the control cabinet. This dramatically reduces the cost and risk associated with scheduled maintenance in hazardous areas.

System expansion is equally straightforward. The modular T8000 architecture allows additional I/O modules, communication cards, and redundant controller supplies to be added to the chassis without system shutdown, supporting phased capacity expansion as production demands grow. The 7400206-100 is fully backward compatible with existing T8000 installations, protecting the customer’s capital investment while enabling incremental modernization.

Every unit is fully tested prior to shipment, with functional verification of power output, redundancy switching, and communication integrity. Availability confirmed by RFQ inventory ensures short lead times, and our warranty terms confirmed during quotation covers all hardware defects and operational failures under normal industrial operating conditions.

Industrial Connectivity FAQ

Q1: What communication protocols does the ICS TRIPLEX 7400206-100 / T8000 platform support?
The T8000 platform supports Modbus TCP/IP, PROFIBUS DP, Foundation Fieldbus, and OPC-UA via dedicated communication interface modules such as the T8830. This enables direct integration with major DCS platforms (DeltaV, Experion PKS) and SCADA systems (Ignition, Wonderware) without additional protocol converters.

Q2: How does the TMR architecture ensure network stability and prevent spurious trips?
The Triple Modular Redundancy design uses 2oo3 voting logic across three independent processing channels. If one channel develops a fault or communication error, the remaining two channels maintain control output and continue normal operation. The 7400206-100 provides redundant power rails to all three processor channels simultaneously, ensuring that a power supply fault cannot cause a single-channel failure that might trigger a spurious shutdown.

Q3: Can the ICS TRIPLEX 7400206-100 be integrated into an existing SCADA or DCS system without replacing the entire control architecture?
Yes. The T8000 platform is designed for brownfield integration. The 7400206-100 controller supply can be installed into an existing T8000 chassis as a direct replacement or redundant addition. Communication with existing DCS or SCADA systems is maintained through the platform’s standard protocol interfaces, and no changes to the upper-level system configuration are typically required.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
