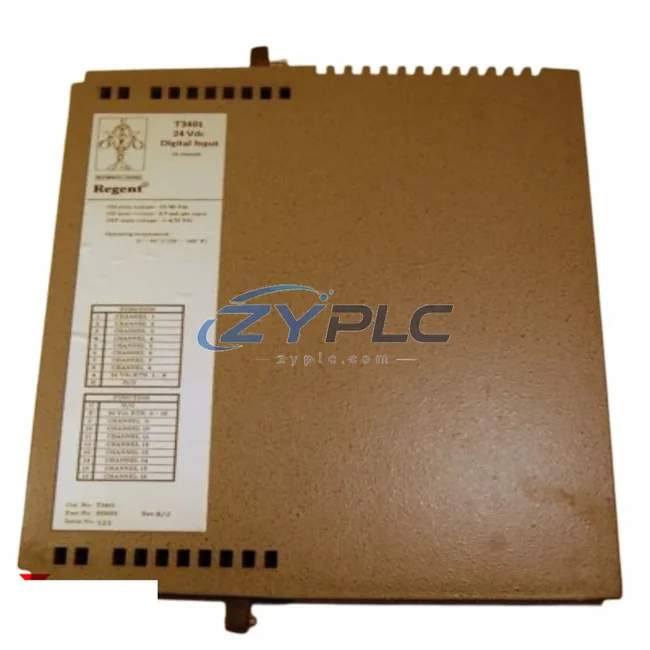

ICS Triplex T3401 Safety Shutdown for Trusted

ICS Triplex T3401 Safety Shutdown for Trusted Series

The ICS Triplex T3401 is a high-integrity safety shutdown module engineered for deployment within the Trusted Series fault-tolerant control platform. Designed to operate at the intersection of the control layer and the safety instrumented system (SIS) layer, the T3401 delivers deterministic response times, triple modular redundancy (TMR), and SIL 2/SIL 3 compliance in accordance with IEC 61511 and IEC 61508 standards. Rather than functioning as a standalone device, the T3401 is conceived as a system-level component — one that derives its full value from its coordinated role within a layered automation architecture spanning the field device layer, I/O layer, control layer, network layer, power layer, and human-machine interface layer.

In modern process safety environments — whether in oil and gas, petrochemical refining, power generation, water treatment, or mining — the integrity of the safety shutdown function depends not only on the module itself, but on the coherence of the entire control system architecture. The T3401 is built to support that coherence. Its TMR voting logic (2-out-of-3) ensures that no single-point failure can compromise the safety function, while its hot-standby redundancy capability allows maintenance activities to be performed without process interruption. This combination of fault tolerance and operational continuity makes the T3401 a preferred choice for engineers designing high-availability safety systems with stringent uptime requirements.

Product Specification Table

System Compatibility Notes

The T3401 achieves its highest value when integrated within a complete Trusted Series control system architecture. At the controller level, it interfaces directly with the ICS Triplex T3110 Trusted TMR Processor, which provides the central processing and voting arbitration for the safety logic. The T3401’s I/O channels are mapped through the T3481 Digital Input Module and T3491 Digital Output Module, which handle field signal conditioning and output switching for shutdown actuators such as solenoid valves and motor contactors.

Power integrity is maintained through the T8110 Trusted Power Supply Module, which provides redundant 24 VDC rails to the backplane, ensuring that a power supply failure does not propagate to the safety function. The backplane itself — the T8100 Trusted Chassis — provides the physical and electrical interconnect for all modules, supporting hot-swap capability for individual cards without requiring system shutdown.

At the network layer, the T3401 communicates upstream to the distributed control system (DCS) via the T8831 Modbus TCP Communication Module, enabling real-time status reporting, alarm annunciation, and diagnostic data transfer to the operator workstation. For facilities using OPC-UA-based SCADA integration, the T8840 OPC Gateway Module provides seamless protocol translation without introducing latency into the safety loop.

Human-machine interface integration is achieved through compatibility with Wonderware InTouch and Aveva System Platform HMI environments, where the T3401’s diagnostic registers are mapped to operator displays for real-time visibility of module health, voting status, and trip history. At the field device layer, the T3401 interfaces with HART-enabled transmitters and SIL-rated solenoid valve assemblies, completing the signal chain from process measurement to final element actuation.

This multi-layer integration — spanning the T3110 processor, T3481/T3491 I/O modules, T8110 power supply, T8100 chassis, T8831 communication module, and HMI platform — ensures that the T3401 operates not as an isolated safety device, but as a fully coordinated node within a coherent, auditable, and maintainable safety instrumented system.

Industrial Application Notes

The T3401 is deployed across a wide range of process industries where functional safety and system availability are non-negotiable requirements. In oil and gas upstream and midstream facilities, the T3401 serves as the core shutdown module for wellhead control panels, compressor station ESD systems, and pipeline isolation valve control, where SIL 3 performance is mandated by regulatory frameworks such as API 14C and IEC 61511.

In petrochemical and refining plants, the T3401 is integrated into burner management systems (BMS), high-integrity pressure protection systems (HIPPS), and reactor emergency shutdown systems, where its TMR architecture provides the fault tolerance required to meet process hazard analysis (PHA) risk reduction targets. In power generation facilities — including thermal, combined-cycle, and nuclear auxiliary systems — the T3401 supports turbine trip systems and generator protection relays, where response time and voting integrity are critical to grid stability.

For water and wastewater treatment plants, the T3401 provides overpressure and overflow protection for pumping stations and chemical dosing systems, integrating with SCADA platforms via Modbus TCP for centralized monitoring. In mining and mineral processing environments, the module is applied in conveyor emergency stop systems, crusher protection circuits, and ventilation safety interlocks, where harsh electrical environments demand robust noise immunity and wide operating temperature tolerance.

Across all these applications, the T3401’s support for system integration — the ability to share real-time diagnostic context with upstream DCS and SCADA systems — enables operations teams to move from reactive maintenance to predictive maintenance strategies, reducing unplanned downtime and extending the operational life of the safety system.

Product Compatibility FAQ

Q1: Is the T3401 compatible with existing Trusted Series chassis and backplanes from earlier generations?
The T3401 is designed for use within the ICS Triplex Trusted Series platform and is compatible with the T8100 chassis family. Compatibility with specific earlier-generation backplanes should be verified against the Trusted Series hardware compatibility matrix, as connector pinouts and backplane bus protocols may differ between major hardware revisions. Our technical team can assist with site-specific compatibility assessments prior to procurement.

Q2: How does the T3401 support long-term maintenance without process shutdown?
The T3401 supports online module replacement through its hot-swap architecture. Because the Trusted Series platform operates on TMR voting logic, a single module can be removed and replaced while the remaining two channels continue to maintain the safety function in a 1oo2 degraded mode. This capability significantly reduces the maintenance window risk and supports the long-term maintainability requirements of IEC 61511 lifecycle management. All replacement modules supplied by ZYPLC are covered under a warranty terms confirmed during quotation from the date of shipment.

Q3: What documentation is provided to support system integration and commissioning?
Each T3401 unit supplied by ZYPLC is accompanied by a factory test report and a certificate of conformance. Full integration support — including I/O mapping documentation, Modbus register maps, and commissioning checklists — is available upon request. Our engineering support team provides pre-sales architecture review and post-sales commissioning guidance to ensure seamless system integration with your existing DCS, SCADA, or ESD platform.
