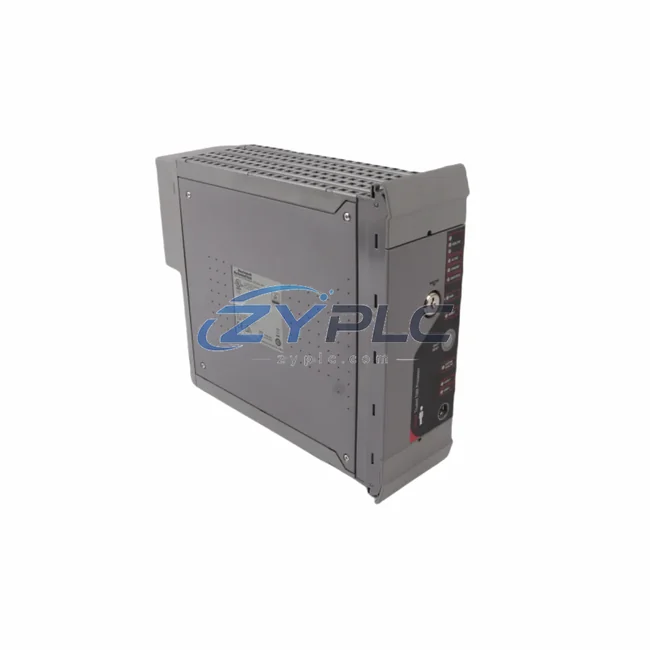

The ICS Triplex T8111C is a Triple Modular Redundancy (TMR) safety controller designed for mission-critical process automation within the Trusted platform architecture. As a core processing node in the T8000 series safety system, the T8111C coordinates real-time control decisions across redundant voting channels, ensuring deterministic fault tolerance in environments where uninterrupted operation is non-negotiable. This controller integrates seamlessly into layered safety instrumented systems (SIS) and distributed control system (DCS) frameworks, providing the computational backbone for high-integrity safety functions rated up to SIL3 per IEC 61508 and IEC 61511 standards.

Product Specification Table

System Compatibility Notes

Within a complete Trusted safety system architecture, the T8111C does not operate in isolation. Its role as the TMR processor is defined by its interaction with adjacent modules across multiple system layers. At the I/O level, the controller communicates with analog input modules such as the T8403 and digital output modules like the T8461, which handle field device signals for process variables and final element actuation respectively. These I/O modules connect through the Trusted chassis backplane, where the T8110B baseplate provides mechanical mounting and electrical interconnection for the entire rack assembly.

Power integrity is maintained through dedicated power supply modules such as the T8800, which delivers regulated and isolated DC power to all rack-mounted components. In configurations requiring extended I/O capacity, the T8151B communications interface module bridges the main controller chassis to remote expansion racks, enabling distributed I/O architectures across large plant installations without compromising scan time performance or data integrity.

For supervisory integration, the T8151B also facilitates connectivity to higher-level DCS platforms and SCADA systems, allowing the T8111C to exchange safety status, diagnostic data, and process values with engineering workstations and historian servers. The T8431 analog input module provides high-density signal acquisition for temperature, pressure, and flow transmitters, while the T8471 digital input module handles discrete field contacts from emergency shutdown switches, valve position indicators, and motor status feedback.

Network redundancy is achieved through dual Ethernet paths managed at the controller level, ensuring that communication loss on a single path does not interrupt safety function execution. The T8151B gateway module supports protocol translation between the proprietary Tribus communication bus internal to the Trusted rack and standard industrial Ethernet protocols used by plant-wide networks. This layered communication strategy ensures that the T8111C maintains deterministic control loop execution regardless of upstream network congestion or partial link failures.

The architectural philosophy of the Trusted platform emphasizes hot-swappable module replacement, meaning that individual I/O cards, communication interfaces, and even power supplies can be replaced during live operation without requiring a system shutdown. This capability is critical in continuous process industries where unplanned downtime carries significant safety and financial consequences.

Industrial Application Notes

The T8111C TMR controller finds its primary application in industries where process safety and regulatory compliance demand the highest levels of control system reliability. In petrochemical refining, the controller manages emergency shutdown (ESD) sequences for distillation columns, reactor vessels, and compressor stations, where a failure to act within milliseconds could result in catastrophic overpressure events. The 2oo3 voting architecture ensures that a single module fault does not generate spurious trips that would unnecessarily halt production, nor does it mask genuine hazardous conditions that require immediate protective action.

In offshore oil and gas platforms, the T8111C provides fire and gas detection system control, processing inputs from flame detectors, gas analyzers, and smoke sensors distributed across multiple hazardous zones. The controller’s wide operating temperature range and vibration tolerance make it suitable for installation in equipment rooms exposed to harsh marine environments. Power generation facilities utilize the Trusted platform for turbine protection systems, where the T8111C monitors critical parameters including bearing vibration, exhaust temperature, and rotor speed to initiate controlled shutdowns before mechanical damage occurs.

Water treatment and distribution networks deploy the T8111C for chlorination control and pump station safety interlocks, where consistent and reliable operation protects public health infrastructure. In metals and mining operations, the controller manages conveyor protection systems, mill drive interlocks, and furnace safety sequences that protect both equipment and personnel from hazardous energy releases.

The modular architecture of the Trusted platform allows system designers to scale from small single-rack safety systems to large multi-rack distributed architectures serving hundreds of safety loops, all managed from a unified engineering environment. This scalability, combined with the T8111C’s proven field reliability and comprehensive diagnostic capabilities, makes it a preferred choice for greenfield safety system installations and brownfield upgrades replacing legacy relay-based or first-generation programmable safety systems.

Product Compatibility FAQ

Q1: What companion modules are required to build a minimum viable safety loop with the T8111C?
A minimum safety loop configuration requires the T8111C TMR controller, at least one analog or digital input module (such as the T8403 or T8471) for field sensing, one output module (such as the T8461) for final element actuation, a T8800 power supply for rack power, and the T8110B baseplate for physical mounting. Communication to a DCS or engineering workstation requires the T8151B interface module. All components carry a warranty terms confirmed during quotation when sourced through ZYPLC.

Q2: Is the T8111C backward-compatible with earlier Trusted platform generations?
The T8111C is designed for the current Trusted platform generation and maintains compatibility with T8000-series I/O modules and communication interfaces. When integrating with legacy installations, the T8151B communication module provides protocol bridging capabilities. System architects should verify firmware revision compatibility during project engineering to ensure seamless system integration across mixed-generation racks.

Q3: How does the TMR architecture handle module degradation during operation?
The 2oo3 voting architecture allows the T8111C to continue safe operation even with one channel faulted. Diagnostic coverage continuously monitors all three processing channels, and any detected discrepancy triggers maintenance alerts through the communication network while maintaining full safety function execution on the remaining healthy channels. Hot-swap capability enables faulted module replacement without process interruption, supported by ZYPLC’s warranty terms confirmed during quotation and global inventory availability for rapid spare parts deployment.
