ICS Triplex T8312-7C Digital Input for T8000

ICS Triplex T8312-7C Digital Input for T8000

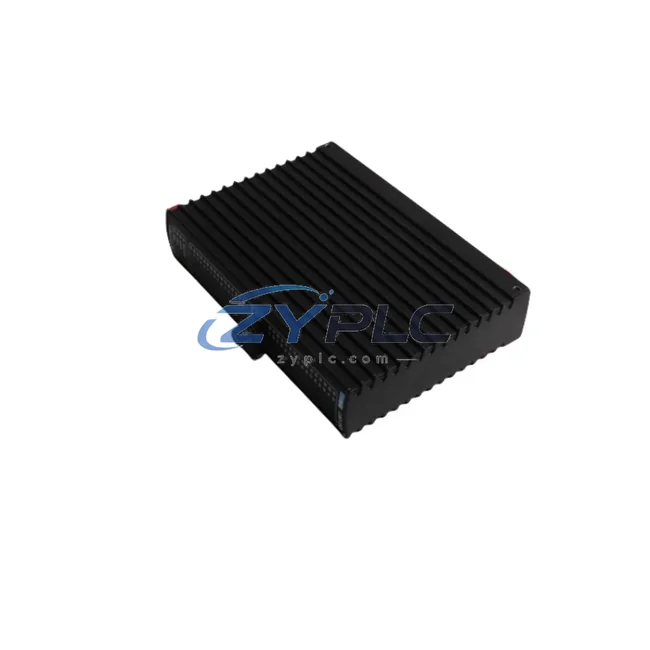

The ICS Triplex T8312-7C is a 40-channel 24V DC digital input module purpose-built for the T8000 Triple Modular Redundancy (TMR) Distributed Control System architecture. In safety-critical and high-availability industrial environments, every component in the control loop must be selected not only for its individual specification but for its role within the broader system hierarchy. The T8312-7C fulfills a foundational role in the I/O layer of the T8000 platform, providing reliable, high-density field signal acquisition that feeds directly into the redundant processing core of the system.

Understanding the T8312-7C requires understanding the T8000 architecture as a whole. The T8000 TMR platform is structured across multiple functional layers: the control layer (CPU and logic solvers), the I/O layer (input and output modules), the network and communications layer (fieldbus gateways and data highways), the power layer (redundant power supply modules), the human-machine interface layer (operator workstations and HMI panels), and the execution layer (actuators, drives, and final control elements). The T8312-7C sits precisely at the I/O layer, serving as the primary interface between field instrumentation and the TMR processing core.

Product Specification Table

System Compatibility Notes

The T8312-7C does not operate in isolation. Its value is realized only when it is correctly positioned within a fully coordinated T8000 control architecture. In a typical T8000 TMR deployment, the T8312-7C occupies one or more slots in the T8000 I/O chassis, which is managed by the T8110 TMR Controller — the central processing unit responsible for executing the 2oo3 voting logic across all three redundant channels. The T8110 continuously polls the T8312-7C for field status data, and any discrepancy between the three input channels triggers the system’s fault-tolerant response without interrupting process control.

On the power side, the T8312-7C is supplied through the T8800 series redundant power supply modules, which provide isolated, regulated 24V DC rails to the I/O backplane. Redundant power architecture ensures that a single power supply failure does not affect module operation or field signal integrity. The T8000 backplane itself — the T8100 series chassis — provides the physical and electrical interconnect between the T8312-7C and the controller, eliminating the need for external wiring between I/O and CPU modules and significantly reducing installation complexity.

For digital output coordination, the T8312-7C is typically paired with the T8431 or T8451 digital output modules, which drive field actuators, solenoid valves, and relay coils based on the logic decisions made by the T8110 controller. This input-output pairing forms the core of the discrete control loop in safety instrumented systems (SIS) and emergency shutdown (ESD) applications. For analog signal acquisition alongside discrete inputs, the T8321 analog input module can be installed in adjacent chassis slots, sharing the same backplane and controller resources while maintaining full channel isolation.

At the network and communications layer, the T8000 system connects to supervisory SCADA platforms and distributed control networks via the T8920 or T8930 communication gateway modules, which support Modbus TCP, PROFIBUS DP, and proprietary ICS Triplex data highway protocols. The T8312-7C’s field data is aggregated at the controller level and transmitted upstream through these gateways, enabling real-time process visibility at the operator workstation level. HMI integration is typically achieved through Wonderware InTouch or equivalent SCADA platforms connected via the T8000 data highway, providing operators with live status of all 40 digital input channels on a single module.

For terminal wiring, the T8312-7C interfaces with field cables through dedicated marshalling panels or T8000-compatible terminal modules, which provide surge protection, loop isolation, and convenient field wiring access without disturbing the module itself during maintenance. This design supports hot-swap capability in certain T8000 configurations, allowing the T8312-7C to be replaced under power without process interruption — a critical feature in continuous process industries where planned shutdowns are costly.

Industrial Application Notes

The T8312-7C is deployed across a wide range of safety-critical and high-availability industrial sectors. In oil and gas processing facilities, it serves as the primary discrete input interface for emergency shutdown systems, monitoring valve position feedback, pressure switch states, and flame detector signals. Its TMR architecture ensures that a single channel failure does not compromise the integrity of the safety function, meeting the requirements of IEC 61511 SIL 2 and SIL 3 applications.

In power generation and electrical substation automation, the T8312-7C monitors circuit breaker status, protection relay trip signals, and auxiliary contact states across high-voltage switchgear panels. The module’s 24V DC input compatibility aligns with standard substation auxiliary power systems, and its high channel density reduces the number of modules required per control cabinet, optimizing panel space in constrained substation environments.

In petrochemical and refinery applications, the T8312-7C is integrated into distributed control systems managing reactor interlocks, compressor protection circuits, and tank farm level switch monitoring. Its ability to operate continuously in high-temperature, high-humidity environments — common in process plant control rooms — makes it a reliable long-term component in systems designed for 20+ year operational lifespans.

Water and wastewater treatment facilities use the T8312-7C to monitor pump run/stop status, valve open/close feedback, and flow switch states across large distributed pump stations. The module’s compatibility with the T8000 remote I/O architecture allows it to be deployed in satellite control panels located far from the central control room, with data transmitted back to the master controller via the T8000 communications network.

In mining and mineral processing, the T8312-7C monitors conveyor belt status, crusher interlock circuits, and emergency stop chain inputs across large, geographically distributed plant areas. Its robust design and TMR redundancy make it suitable for environments where electrical noise, vibration, and temperature extremes are common operational conditions.

Product Compatibility FAQ

Q1: Is the T8312-7C compatible with all T8000 series chassis and backplanes?
The T8312-7C is designed for use within the ICS Triplex T8000 TMR platform and is compatible with T8100 series chassis and backplanes. Compatibility should be verified against the specific T8000 system revision and firmware version in use at the installation site. Our technical team can assist with system-level compatibility verification prior to procurement to ensure seamless integration with your existing T8110 controller and T8800 power supply configuration.

Q2: Can the T8312-7C be replaced without shutting down the control system?
In T8000 TMR configurations that support hot-swap I/O, the T8312-7C can be replaced under power without interrupting the control system’s operation, provided the system is operating in a degraded (2oo3 or 1oo3) mode during the replacement window. Full hot-swap capability depends on the specific system configuration, chassis revision, and controller firmware. We recommend consulting the ICS Triplex T8000 system manual and coordinating with your system integrator before performing any live module replacement in a safety-instrumented environment.

Q3: What does the warranty terms confirmed during quotation cover, and what testing is performed before shipment?
Every T8312-7C supplied by ZYPLC is subject to functional testing prior to shipment, verifying channel continuity, input signal response, and backplane communication integrity. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Modules are shipped with appropriate ESD protection and packaging to prevent transit damage. Our warranty support includes technical assistance for installation and commissioning issues, and replacement units can be dispatched rapidly to minimize system downtime in the event of a warranty claim.
