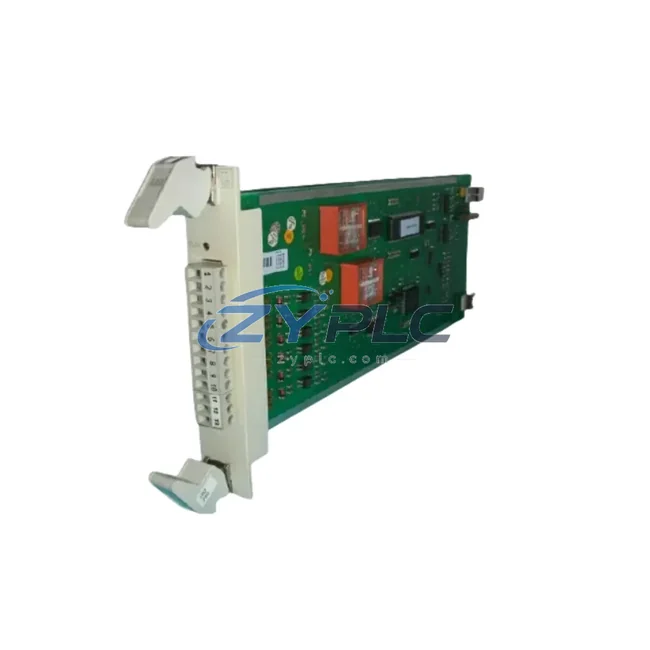

The ICS Triplex T9084U is a Triple Modular Redundancy (TMR) safety output module engineered for deployment within the Trusted safety controller platform — one of the most rigorously validated safety architectures in industrial automation. Designed to operate at the heart of Safety Instrumented Systems (SIS), the T9084U does not function as a standalone component; it is a precision-engineered element within a layered, fault-tolerant control architecture where every module, backplane slot, and communication pathway is interdependent. Understanding the T9084U means understanding the complete Trusted system architecture — from the controller chassis and power distribution to the field I/O, communication gateways, and human-machine interface layers that surround it.

In modern process safety environments — whether in oil and gas, petrochemical refining, power generation, water treatment, or advanced manufacturing — the demand for uninterrupted, verifiable safety logic execution is non-negotiable. The T9084U addresses this demand by providing triple-redundant digital output capability, where three independent processing channels vote on every output state before actuation. This 2-out-of-3 (2oo3) voting architecture ensures that a single channel failure neither causes a spurious trip nor allows a dangerous condition to pass undetected, achieving the highest levels of Safety Integrity Level (SIL3) compliance under IEC 61508 and IEC 61511.

Product Specification Table

System Compatibility Notes

The T9084U achieves its full operational value only when integrated within a complete Trusted TMR architecture. At the controller layer, the T9110 Trusted TMR Main Processor Module serves as the central logic execution engine, running the safety application program and coordinating all I/O modules across the chassis. The T9084U receives its output commands directly from this processor via the Trusted backplane bus — a high-speed, fault-tolerant internal communication pathway that maintains signal integrity even under single-channel fault conditions.

Power integrity is foundational to TMR safety system reliability. The T9800 Trusted Power Supply Module provides redundant 24 VDC distribution across the chassis, ensuring that neither a power supply failure nor a voltage transient can compromise the T9084U’s output state. In high-availability installations, dual T9800 power supplies are deployed in parallel, with automatic load sharing and fault isolation — a configuration that eliminates the power layer as a single point of failure.

On the input side, the T9082U Trusted TMR Digital Input Module mirrors the T9084U’s architecture, providing triple-redundant field signal acquisition. Together, the T9082U and T9084U form the complete I/O layer of the safety loop: the T9082U reads field sensor states (pressure switches, level transmitters, gas detectors), the T9110 processor executes the safety logic, and the T9084U drives the final elements — solenoid valves, motor contactors, emergency shutdown actuators — with voted, verified output signals.

For process control integration, the T9310 Trusted Communication Gateway Module bridges the Trusted safety system with the plant’s distributed control system (DCS) or SCADA network via Modbus TCP, PROFIBUS DP, or OPC DA/UA protocols. This gateway enables the T9084U’s output states and diagnostic data to be visible at the operator workstation level without compromising the safety system’s logical isolation — a critical requirement under IEC 61511 for SIS/BPCS separation.

Human-machine interface integration is typically achieved through dedicated safety HMI terminals or through the plant DCS, with the Trusted system’s diagnostic data — including T9084U channel health, output state, and fault codes — surfaced via the T9310 gateway. In facilities using Wonderware System Platform or Emerson DeltaV SIS as the supervisory layer, the Trusted system’s communication gateway provides the necessary protocol translation for seamless system integration across the automation hierarchy.

Chassis infrastructure is provided by the T9100 Trusted TMR Chassis, which accommodates the processor, I/O modules, power supplies, and communication gateways in a structured, slot-assigned backplane architecture. The chassis enforces module addressing and ensures that the T9084U’s three internal channels are physically separated across independent backplane segments — a hardware-level guarantee of channel independence that is fundamental to TMR fault tolerance.

For installations requiring analog output capability alongside the T9084U’s digital outputs, the T9086U Trusted TMR Analog Output Module provides SIL3-rated 4–20 mA output channels for modulating control valves, variable speed drives, and other proportional actuators within the same chassis. This combination of digital and analog output modules, governed by a single T9110 processor, enables the Trusted system to manage both on/off safety functions and continuous modulating control within a unified, redundant architecture.

Industrial Application Notes

In oil and gas processing facilities, the T9084U is deployed as the final output element in Emergency Shutdown (ESD) and High Integrity Pressure Protection Systems (HIPPS). When field sensors detect an overpressure condition, the T9110 processor evaluates the 2oo3 voted input signals from the T9082U, executes the safety function, and commands the T9084U to de-energize the solenoid valve driving the HIPPS actuator — all within the system’s defined Safety Instrumented Function (SIF) response time, typically under 100 milliseconds.

In power generation and utility applications, the T9084U controls turbine trip solenoids, generator protection relays, and boiler safety interlocks. The TMR architecture’s ability to perform online diagnostics and channel replacement without process interruption — known as online maintainability — is particularly valued in baseload power stations where planned outages are scheduled years in advance and unplanned shutdowns carry significant financial and grid-stability consequences.

In petrochemical and refinery environments, the T9084U is integrated into Burner Management Systems (BMS) and Compressor Anti-Surge Control systems, where the combination of SIL3 output integrity and fast response time is essential for protecting rotating equipment and fired heaters from catastrophic failure modes. The module’s galvanic output isolation prevents ground loop interference from high-power field devices from corrupting the safety output signal.

In water and wastewater treatment facilities, the T9084U manages pump protection interlocks, chemical dosing shutoffs, and overflow prevention systems. The Trusted system’s long operational lifecycle — with ICS Triplex providing extended support and spare parts availability — aligns with the 20–30 year asset lifecycles typical of municipal water infrastructure, making the T9084U a sound long-term investment for utility operators.

In mining and metals processing, the T9084U is applied in conveyor safety systems, crusher protection interlocks, and ventilation control for underground operations. The module’s robust electrical design tolerates the high-noise electromagnetic environments generated by large variable frequency drives and high-current motor starters common in mineral processing plants.

Product Compatibility FAQ

Q1: Is the T9084U compatible with all Trusted TMR chassis configurations, and can it be installed alongside non-TMR Trusted modules?
The T9084U is designed for the Trusted TMR chassis platform (T9100 Series) and is fully compatible with other TMR-rated modules including the T9082U digital input, T9086U analog output, T9110 processor, and T9800 power supply. ICS Triplex’s Trusted architecture enforces strict module compatibility through chassis slot assignment and firmware validation — non-TMR modules cannot be installed in TMR chassis slots. Always verify chassis revision and firmware version compatibility with your system documentation or contact ZYPLC for a pre-delivery compatibility assessment.

Q2: Can the T9084U be replaced online (hot-swapped) without shutting down the safety system, and what is the procedure for maintaining SIL3 integrity during module replacement?
Yes, the Trusted TMR architecture supports online module replacement — a key advantage of the 2oo3 voting design. When one of the three channels is removed for replacement, the system continues to operate in a degraded 1oo2 voting mode, maintaining safety function execution while the replacement module is installed and synchronized. The replacement procedure requires following ICS Triplex’s documented maintenance protocol, including channel isolation, module insertion, automatic self-test, and channel re-integration — all without process shutdown. ZYPLC’s warranty terms confirmed during quotation covers the T9084U through this maintenance lifecycle, and our technical team can provide procedure guidance for first-time replacements.

Q3: What documentation and certifications are available for the T9084U to support SIL3 safety case development and regulatory compliance submissions?
The T9084U is supported by ICS Triplex’s comprehensive safety documentation package, including the Safety Manual, Failure Modes and Effects Analysis (FMEA) report, and third-party SIL certification from TÜV or equivalent notified body. These documents provide the PFD (Probability of Failure on Demand) and PFH (Probability of Failure per Hour) data required for SIL verification calculations under IEC 61508 Part 2. ZYPLC supplies the T9084U with available documentation and can assist in sourcing supplementary certification records. All units are covered by our warranty terms confirmed during quotation and undergo functional testing prior to shipment to verify output channel integrity and backplane communication health.
