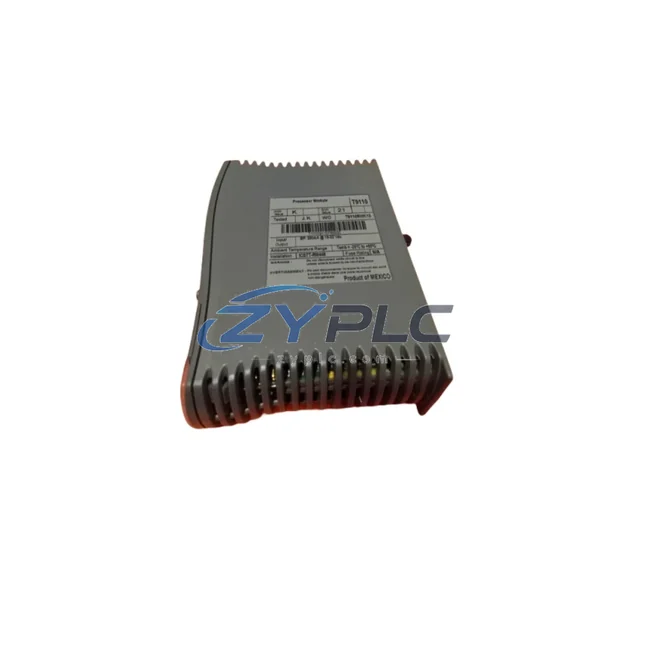

ICS Triplex T9110 Processor Module

ICS Triplex T9110 Processor Module for Triplex Automation

The ICS Triplex T9110 is a high-performance, fault-tolerant processor module engineered for energy-conscious industrial automation environments. Designed to operate within the ICS Triplex safety-rated control architecture, the T9110 delivers precise execution of control logic while minimizing processor idle cycles and redundant computation overhead — directly contributing to measurable reductions in panel energy draw and cooling load. In facilities where continuous process control is mandatory, the T9110’s triple-modular redundancy (TMR) design ensures that no single-point failure triggers an unplanned shutdown, eliminating the unplanned downtime and production loss associated with emergency restarts and unscheduled maintenance windows.

For plant engineers focused on equipment utilization rates and production line throughput, the T9110 provides deterministic scan cycle performance that keeps downstream actuators, drives, and I/O subsystems synchronized without unnecessary polling delays. When integrated with condition monitoring instrumentation and variable-speed drive networks, the processor’s fast response to process deviations allows the control system to trim motor loads in real time — reducing kilowatt-hour consumption during partial-load operating conditions. This capability is especially valuable in compressor control, turbine management, and pump station automation, where even a 3–5% reduction in motor runtime translates to significant annual operational stability.

Every T9110 unit supplied by ZYPLC is sourced from verified inventory channels, subjected to functional power-on testing prior to shipment, and covered by a warranty terms confirmed during quotation. Stock is maintained for prompt dispatch to support both planned maintenance schedules and urgent replacement requirements.

Product Specification Table

System Compatibility and Application

The T9110 processor module sits at the heart of a broader industrial control architecture. In a typical high-availability plant installation, the T9110 coordinates logic execution across the Triplex TMR chassis while communicating with field-level components that directly influence energy consumption. On the drive side, variable frequency drives such as the Rockwell PowerFlex 755 or equivalent multi-axis AC drives receive speed reference signals derived from the T9110’s PID output blocks, enabling precise motor speed regulation that eliminates the energy penalty of fixed-speed operation under variable load conditions.

For process measurement and energy data acquisition, the T9110 interfaces with analog input modules — including the ICS Triplex T8431 Analog Input Module — to collect real-time current, voltage, and power factor signals from field transmitters. These measurements feed directly into the processor’s control algorithms, allowing the system to detect inefficient operating points and issue corrective output commands before unplanned downtime accumulates. On the output side, the ICS Triplex T8451 Digital Output Module executes switching commands with millisecond-level precision, ensuring that contactors, solenoids, and motor starters are energized only when process conditions demand it.

Communication between the T9110 and plant-level SCADA or DCS platforms is facilitated through gateway modules compatible with Modbus TCP/IP and OPC-UA protocols, enabling energy KPI data — including specific energy consumption per production unit — to be streamed to historian servers and maintenance planning dashboards in real time. HMI panels such as the Wonderware InTouch or equivalent operator interface terminals display live energy trend data, giving operators immediate visibility into consumption anomalies. For safety instrumented system (SIS) integration, the T9110 can be coordinated with ICS Triplex T9100-series modules to maintain SIL-rated loop integrity without introducing additional scan cycle latency that would degrade control responsiveness.

Power supply redundancy — typically provided by dual ICS Triplex T9110-compatible power supply modules in a hot-standby configuration — ensures that the processor itself never becomes a single point of energy system failure. Upstream, 24VDC bus conditioners and EMC-rated panel power supplies maintain stable input voltage to the TMR chassis, protecting the T9110’s internal logic circuits from transient disturbances that could trigger spurious resets and the associated energy cost of system re-initialization.

Maintenance and Replacement Notes

In oil and gas compression stations, the T9110 has been deployed to manage anti-surge control loops where millisecond response times are critical. By maintaining compressor operation within the optimal efficiency envelope — rather than allowing the machine to surge and recover — the processor directly prevents the high-current inrush events that surge cycles generate, reducing both energy consumption and mechanical wear on impeller assemblies. Over a 12-month operating period, this translates to measurable reductions in both electricity costs and unplanned maintenance expenditure.

In power generation applications, the T9110 supports turbine governor control and load-sharing logic across multiple generating units. Its deterministic execution ensures that load dispatch commands are applied within the required response window, preventing over-generation conditions that waste fuel and increase emissions per unit of electrical output. The processor’s fault-tolerant architecture means that a module-level fault does not interrupt the governor control loop — the remaining two TMR legs continue executing control logic seamlessly, avoiding the fuel waste and grid instability that an uncontrolled turbine trip would cause.

For petrochemical plant operators managing rotating equipment fleets, the T9110’s integration with vibration monitoring I/O modules enables condition-based maintenance scheduling. Rather than performing time-based maintenance that may be premature or overdue, maintenance teams can use the processor’s data aggregation capability to trend bearing temperature, vibration amplitude, and motor current draw simultaneously — identifying degradation patterns weeks before failure. This predictive maintenance approach reduces both the energy cost of operating degraded equipment and the downtime cost of reactive repairs.

ZYPLC maintains ready stock of the T9110 to support both planned turnaround schedules and emergency replacement scenarios. All units are functionally tested before dispatch, and the warranty terms confirmed during quotation provides assurance of module integrity from the date of installation.

Product Sourcing FAQ

Q1: How does the ICS Triplex T9110 contribute to plant operational stability?
The T9110 enables real-time closed-loop control of energy-consuming equipment such as compressors, pumps, and turbines. By executing control algorithms with deterministic timing and coordinating with variable-speed drives and analog I/O modules, the processor keeps equipment operating within its optimal efficiency band, reducing unnecessary energy consumption during partial-load conditions.

Q2: Is the T9110 compatible with existing ICS Triplex TMR chassis and I/O modules?
Yes. The T9110 is designed for use within the ICS Triplex TMR safety control platform and is compatible with the T8000 and T9000 series I/O modules, including analog input, digital output, and communication gateway modules. Compatibility with specific chassis revisions should be confirmed against the installed firmware version prior to replacement.

Q3: What is the recommended replacement and testing procedure for the T9110?
ZYPLC recommends a hot-swap replacement procedure where supported by the installed TMR configuration. Each T9110 unit supplied by ZYPLC undergoes functional power-on testing prior to shipment. Upon installation, the module should be verified through the Triplex diagnostic software to confirm TMR synchronization and scan cycle integrity before returning the loop to automatic control.

Q4: What warranty coverage is provided for the T9110?
All T9110 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. This covers functional defects identified under normal operating conditions. ZYPLC’s technical team is available to support fault diagnosis and warranty claims via the contact details below.

—
