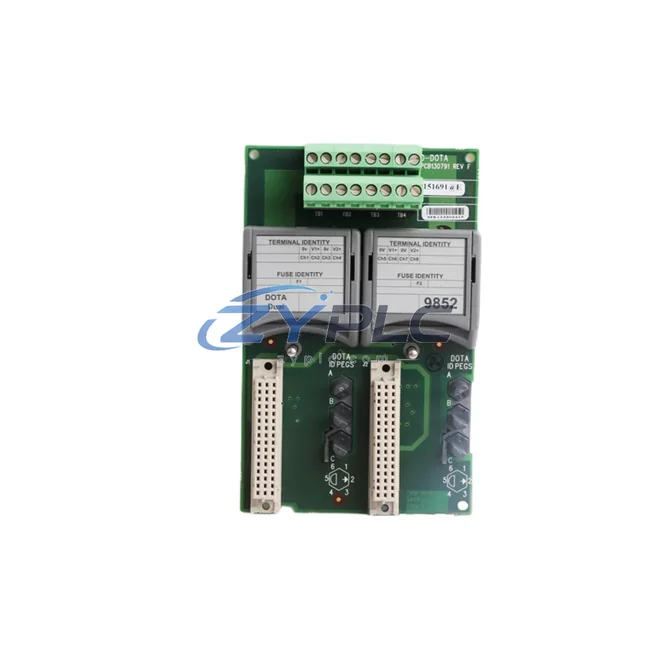

ICS Triplex T9852 Digital Output Module for Triplex Safety Systems

ICS Triplex T9852: Industrial Data Link for Smart Factory Safety Networks

The ICS Triplex T9852 Digital Output Module is a precision-engineered field output component designed for safety-critical industrial environments where reliable signal delivery, deterministic communication, and fault-tolerant network architecture are non-negotiable. Built to integrate seamlessly within the ICS Triplex Trusted™ safety platform, the T9852 serves as a critical node in the industrial data chain — bridging the gap between the safety PLC controller and field actuators, while maintaining full compatibility with SCADA supervisory layers, HMI visualization systems, and remote diagnostic platforms.

In modern smart factory deployments, the T9852 does not operate in isolation. It functions as part of a tightly coordinated automation architecture where every millisecond of signal latency and every byte of process data matters. From the moment a control command is issued by the Trusted™ TMR (Triple Modular Redundancy) controller, the T9852 executes the output with hardware-level reliability — ensuring that downstream actuators, solenoid valves, motor starters, and safety interlock devices respond with precision and without ambiguity.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the T9852’s role requires tracing the full industrial data flow from field device to enterprise system. At the field level, process sensors — including pressure transmitters, temperature sensors, and flame detectors — feed analog and digital signals into the Trusted™ TMR I/O subsystem. The T9852 Digital Output Module sits at the output end of this chain, receiving validated control commands from the Trusted™ T8110 or T8310 TMR Controller and translating them into discrete field-level switching actions.

Within the Trusted™ chassis, the T9852 communicates over the proprietary safety backplane alongside companion modules such as the T9851 Digital Input Module, which handles field signal acquisition, and the T9853 Analog Output Module, which manages continuous process variable control. Together, these modules form a complete I/O layer that feeds into the TMR voting logic of the Trusted™ controller — ensuring that any single-point failure is detected, voted out, and alarmed without interrupting the process.

Upstream from the controller, the Trusted™ T8840 Communication Gateway bridges the safety PLC network to the plant’s SCADA infrastructure. Using Modbus TCP or OPC-DA protocol conversion, real-time output status from the T9852 — including channel health, output state, and fault diagnostics — is transmitted to SCADA servers such as Wonderware System Platform or Ignition SCADA, where operators monitor process safety states on HMI panels in real time. Any deviation from the expected output state triggers an alarm in the SCADA historian and initiates a remote diagnostic sequence.

For plants operating distributed control architectures, the T9852 integrates with Remote I/O expansion racks connected via the Trusted™ fieldbus, extending the safety output network across large process units without compromising signal integrity or response time. In parallel, edge gateway devices collect module-level diagnostics and push them to cloud-based asset management platforms, enabling predictive maintenance scheduling and reducing unplanned downtime. Variable frequency drives (VFDs) and motor control centers connected downstream of the T9852 receive clean, debounced switching signals — eliminating nuisance trips caused by signal noise or communication latency.

This end-to-end data flow — from field sensor through the T9852 output module, through the TMR controller, through the communication gateway, and up to the SCADA/HMI layer — represents the backbone of a transparent, auditable, and IEC 61511-compliant safety instrumented system (SIS). Every component in this chain is traceable, and the T9852 is a proven, field-tested link in that chain.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — where safety systems, process control networks, and enterprise IT systems operate in silos, unable to share real-time status or diagnostic information. The ICS Triplex T9852, as part of the Trusted™ platform, directly addresses this challenge through its structured integration with multi-protocol communication gateways and open SCADA connectivity standards.

Plants that previously relied on hardwired relay logic or standalone safety controllers often face the problem of opaque output states — operators cannot confirm whether a field device has actually responded to a control command without physically inspecting the device. The T9852 eliminates this ambiguity by providing channel-level feedback through the Trusted™ diagnostic bus, making output state visible at the SCADA level within milliseconds of execution. This real-time output confirmation closes the loop between the control command and the physical process response, enabling true production line transparency.

For facilities undergoing digital transformation, the T9852 supports phased integration strategies. Existing Trusted™ I/O racks can be expanded with additional T9852 modules without requiring a full system shutdown, allowing engineers to scale the safety output network incrementally as new process units are commissioned. This modular expansion capability reduces capital expenditure and minimizes the risk associated with large-scale safety system upgrades.

Remote monitoring and diagnostics — a cornerstone of Industry 4.0 — are fully supported through the Trusted™ platform’s gateway architecture. Maintenance engineers can interrogate T9852 module health, output channel status, and fault history from a remote workstation or mobile device, reducing the need for on-site inspections in hazardous areas. Alarm management systems integrated with the SCADA layer can automatically generate work orders when a T9852 channel fault is detected, streamlining the maintenance response workflow and reducing mean time to repair (MTTR).

All units supplied by ZYPLC undergo pre-shipment functional testing and inspection. Each T9852 is verified for output channel continuity, backplane communication integrity, and firmware compatibility before dispatch. Stock is available for shipment arranged after confirmation via DHL or FedEx international express, with full warranty terms confirmed during quotation coverage from the date of delivery.
