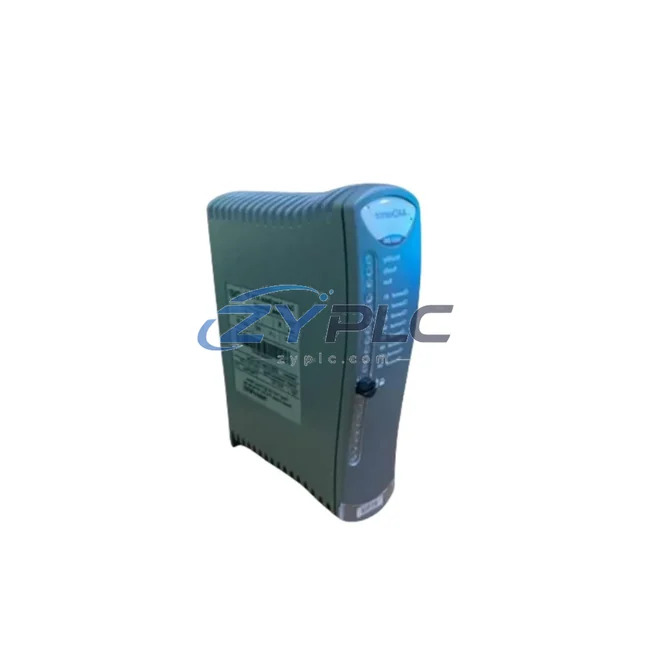

ICS Triplex T9882 Analogue Output Module

ICS Triplex T9882 Analogue Output Module for Trusted TMR Automation

The ICS Triplex T9882 is a high-performance analogue output module engineered for the Trusted TMR (Triple Modular Redundancy) safety system platform. Designed for mission-critical industrial environments — including oil & gas, petrochemical, power generation, and advanced manufacturing — the T9882 delivers precision signal output while actively contributing to plant-wide energy efficiency, equipment utilization, and production line optimization. Every unit is fully tested prior to shipment and backed by a warranty terms confirmed during quotation, ensuring operational confidence from day one.

Product Specification Table

System Compatibility and Application

In a modern energy-conscious plant, the ICS Triplex T9882 analogue output module sits at the heart of a tightly integrated control architecture. It works in concert with the ICS Triplex T9110 Processor Module, which executes the TMR voting logic and issues precise control commands to the T9882’s output channels. These commands drive field devices — control valves, variable-speed actuators, and positioners — with 16-bit resolution, eliminating the coarse stepping that causes energy-wasting valve hunting and actuator wear.

On the input side, the ICS Triplex T9851 Analogue Input Module continuously samples process variables such as flow rate, pressure, and temperature. These readings feed directly into the control loop managed by the T9110 processor, which then issues corrective output signals through the T9882. This closed-loop architecture ensures that energy is consumed only when process conditions genuinely demand it — not as a result of signal noise, drift, or control instability.

For digital interlock and shutdown logic, the ICS Triplex T9431 Digital Input Module and T9451 Digital Output Module complement the T9882 by managing discrete field signals. When a process deviation is detected, the digital I/O modules trigger protective actions while the T9882 simultaneously ramps analogue outputs to safe states — preventing energy-intensive emergency restarts and reducing thermal stress on downstream equipment.

Communication between the Trusted TMR system and plant-level SCADA or DCS platforms is handled via the ICS Triplex T9200 Communication Module, which supports Modbus, PROFIBUS, and other industrial protocols. Real-time data from the T9882’s output channels — including loop current feedback and fault diagnostics — is transmitted upstream, enabling maintenance planning systems to track actuator load profiles, identify inefficiencies, and schedule predictive maintenance before failures occur.

Power integrity for the entire TMR chassis is maintained by the ICS Triplex T9100 Power Supply Module, which provides regulated, redundant DC power to all installed modules including the T9882. A stable, clean power supply is essential for analogue output accuracy — voltage ripple or transients can introduce output errors that cause unnecessary actuator movement and unplanned downtime. The T9100’s redundant architecture also ensures that a single power supply fault does not interrupt production, avoiding the energy cost of unplanned shutdowns and restarts.

For plants integrating the Trusted TMR system with broader automation infrastructure, the T9882 is fully compatible with Yokogawa CENTUM VP DCS and Emerson DeltaV platforms via hardwired analogue interfaces. This interoperability allows the T9882’s output signals to drive control elements within larger distributed control strategies, supporting plant-wide maintenance planning programs without requiring system replacement or costly re-engineering.

Maintenance and Replacement Notes

In continuous process industries — refinery distillation columns, compressor control systems, boiler feedwater regulation — the quality of analogue output signals directly determines how efficiently energy is consumed. A poorly calibrated or degraded analogue output module causes control valves to hunt, compressors to surge, and heat exchangers to operate outside their optimal thermal range. Each of these conditions wastes energy, accelerates equipment wear, and shortens mean time between failures.

The ICS Triplex T9882 addresses these challenges through its high-resolution 16-bit DAC output, which provides smooth, stable 4–20 mA signals with minimal quantization error. In a typical compressor anti-surge control application, replacing a degraded analogue output module with a verified T9882 can reduce unnecessary surge valve cycling by eliminating the signal instability that triggers false surge events. Fewer surge events mean lower energy consumption per unit of compressed gas and reduced mechanical fatigue on impellers and seals.

In boiler control applications, the T9882’s precise output enables tighter fuel-to-air ratio control, reducing excess oxygen in flue gas and improving combustion efficiency. Even a 1% improvement in boiler efficiency across a large industrial facility translates to significant annual fuel savings. The TMR architecture ensures that this precision is maintained continuously — if one output channel develops a fault, the remaining two channels maintain control without interruption, preventing the efficiency losses associated with manual intervention or emergency shutdown.

From a maintenance perspective, the T9882 supports predictive maintenance strategies by providing loop current feedback that can be monitored by the plant’s asset management system. Gradual degradation in a control valve’s response — indicated by increasing deviation between the T9882’s commanded output and the actual valve position — can be detected early, allowing maintenance to be scheduled during planned downtime rather than in response to a failure. This approach reduces both maintenance costs and the energy penalty of unplanned production interruptions.

All T9882 units supplied by ZYPLC are sourced from verified inventory, subjected to full functional testing on a live Trusted TMR test bench, and shipped with documented test results. Availability is maintained to support both planned maintenance schedules and urgent breakdown replacements, minimizing the production downtime that represents the largest single source of energy inefficiency in continuous process plants.

Product Sourcing FAQ

Q1: How does the ICS Triplex T9882 contribute to plant energy efficiency?
The T9882’s 16-bit analogue output resolution enables precise control of field actuators, eliminating the signal coarseness that causes valve hunting, compressor cycling, and off-spec process conditions. Tighter process control directly reduces energy consumption by keeping equipment operating within its optimal efficiency range rather than continuously correcting for control errors.

Q2: Is the T9882 compatible with my existing Trusted TMR system?
Yes. The T9882 is a standard module for the ICS Triplex Trusted TMR platform and is compatible with all standard TMR chassis and backplane configurations. It is a direct replacement for degraded or failed analogue output modules in existing installations. If you are unsure about compatibility with your specific system revision, our technical team can verify compatibility based on your chassis and processor module details.

Q3: What is the recommended replacement and testing process?
Each T9882 supplied by ZYPLC undergoes full functional testing on a live Trusted TMR test bench prior to shipment. Test documentation is included with every unit. For installation, the module is hot-swappable within the TMR chassis, allowing replacement without process shutdown in most configurations. We recommend verifying loop current output on all eight channels against your control system’s expected values after installation.

Q4: What warranty and after-sales support is provided?
All ICS Triplex T9882 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. This covers functional failures under normal operating conditions. Our team provides pre-sales technical consultation, compatibility verification, and post-sales support to ensure successful integration into your Trusted TMR system.
