ICS Triplex TC-205-02-4M5: Industrial Data Link for Tricon Safety PLC Systems

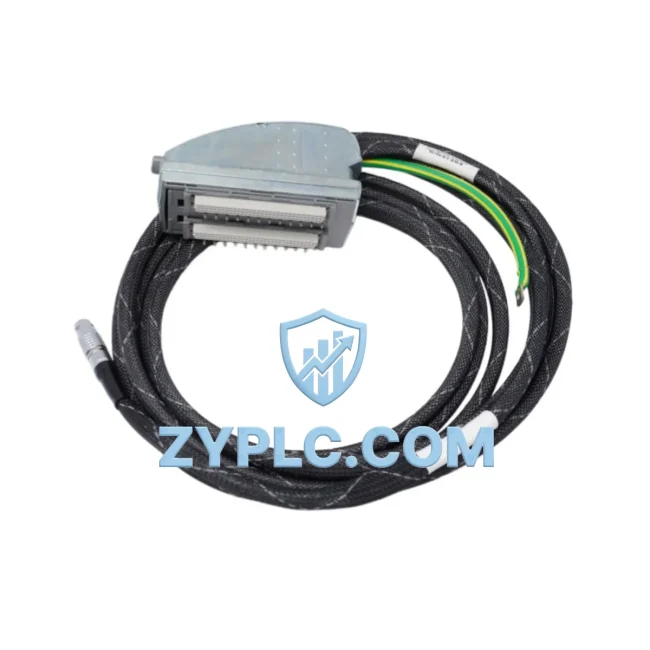

In modern smart factory environments, the integrity of the data link between field devices and the safety control layer is non-negotiable. The ICS Triplex TC-205-02-4M5 I/O Companion Slot Cable is a precision-engineered interconnect component designed specifically for the Tricon Triple Modular Redundant (TMR) Safety PLC platform — one of the most trusted safety-rated control architectures deployed across oil & gas, petrochemical, power generation, and advanced manufacturing industries worldwide.

This cable serves as the physical backbone of the Tricon I/O subsystem, enabling reliable signal transmission between the main chassis and companion I/O expansion slots. In a TMR architecture, every data path must be triplicated and voted — and the TC-205-02-4M5 is built to support exactly that level of redundancy, ensuring that real-time process data flows without interruption from field sensors and actuators through to the Tricon controller and onward to SCADA and HMI layers.

Network Communication Table

Connected Automation Data Flow

The TC-205-02-4M5 operates at the heart of the Tricon I/O data chain. In a typical safety instrumented system (SIS) deployment, field-level sensors — including pressure transmitters, temperature sensors, and gas detectors — feed analog and digital signals into Tricon AI (Analog Input) and DI (Digital Input) modules housed in the companion I/O chassis. The TC-205-02-4M5 cable physically bridges the main Tricon chassis to these companion expansion slots, carrying the triplicated I/O bus signals that are essential for TMR voting logic.

Once signals are acquired, the Tricon controller — such as the Tricon v10 or v11 Main Processor (MP) — processes the data through its three independent processing legs. The voted output is then transmitted upstream via the Tricon Communication Module (TCM), which supports Modbus TCP, OPC DA/UA, and proprietary Triconex protocols, enabling seamless integration with Experion PKS DCS, Wonderware SCADA, and third-party HMI platforms.

In parallel, the Tricon Enhanced Intelligent Field Device Interface (EICM) may be used to bridge HART-enabled field instruments into the Tricon data fabric, allowing asset health data from smart transmitters to flow alongside process values into the historian and alarm management system. Remote I/O extensions using Tricon Remote I/O (TRIO) modules further extend the data reach across large plant footprints, with fiber-optic links maintaining signal integrity over long distances.

For drive and motion control integration, the Tricon safety layer interfaces with variable frequency drives (VFDs) and servo controllers via hardwired safety relays or Profibus DP gateways, with the TC-205-02-4M5 ensuring that the I/O expansion chassis supporting these interfaces remains reliably connected to the main safety controller. Edge gateways — such as the Honeywell Experion Edge — can aggregate Tricon process data and push it to cloud-based analytics platforms, enabling predictive maintenance and remote diagnostics without compromising the air-gapped integrity of the SIS layer.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial facilities is data isolation — where safety systems, process control networks, and enterprise IT layers operate in silos, preventing plant-wide visibility and timely decision-making. The ICS Triplex TC-205-02-4M5 directly addresses the physical connectivity layer of this problem by ensuring that the Tricon I/O expansion chassis is reliably integrated into the main TMR controller, eliminating signal gaps that could otherwise cause spurious trips or missed alarms.

Protocol fragmentation is another common pain point. Older Tricon installations may rely on Modbus RTU for upstream communication, while newer SCADA platforms demand OPC UA or Ethernet/IP. The Tricon TCM and associated communication infrastructure — all dependent on a correctly cabled and functioning I/O subsystem — provide the protocol translation layer that bridges these worlds. With the TC-205-02-4M5 maintaining the physical integrity of the I/O bus, engineers can confidently deploy protocol gateways without worrying about underlying connectivity failures.

Remote monitoring and diagnostics are increasingly critical in unmanned or remotely operated facilities. The Tricon platform supports remote diagnostics via its TriStation 1131 programming environment, which can connect over Ethernet to interrogate controller health, I/O module status, and communication diagnostics in real time. A properly installed TC-205-02-4M5 ensures that all companion I/O modules are visible to the diagnostic layer, enabling maintenance teams to identify faults before they escalate to process shutdowns.

Production line transparency — the ability to see real-time process data across every node of the plant — is the foundation of Industry 4.0 transformation. By maintaining a robust physical connection between the Tricon main chassis and its I/O expansion modules, the TC-205-02-4M5 supports the data completeness required for MES integration, OEE calculation, and digital twin applications. System expansion is equally straightforward: additional companion I/O chassis can be added to the Tricon architecture using the same cable standard, allowing plants to scale their safety I/O capacity without redesigning the control system.

Every TC-205-02-4M5 supplied by ZYPLC undergoes pre-shipment inspection and functional verification. Stock is maintained for rapid dispatch, with global logistics via DHL Express and FedEx International Priority. All units are covered by a 12-month warranty from the date of shipment.

Industrial Connectivity FAQ

Q1: What communication protocols does the Tricon TC-205-02-4M5 support in an integrated SIS architecture?
The TC-205-02-4M5 is a physical I/O interconnect cable and does not itself implement a communication protocol. However, it enables the Tricon companion I/O chassis to participate fully in the Tricon TMR backplane bus, which supports Modbus RTU, Modbus TCP, OPC DA/UA, and proprietary Triconex protocols via the Tricon Communication Module (TCM). This makes the overall Tricon system compatible with Honeywell Experion PKS, Wonderware, and other major SCADA/DCS platforms.

Q2: How does the TC-205-02-4M5 contribute to network stability in a TMR safety system?
In a Triple Modular Redundant architecture, every I/O signal is processed by three independent legs and voted for consistency. The TC-205-02-4M5 carries the triplicated I/O bus between the main and companion chassis, ensuring that all three legs receive identical signal data. A degraded or failed cable can cause one leg to lose I/O visibility, triggering diagnostic alarms or, in worst cases, a spurious trip. Using a genuine ICS Triplex TC-205-02-4M5 maintains the full redundancy of the TMR architecture and preserves system stability.

Q3: Can the Tricon system be expanded with additional I/O modules using the TC-205-02-4M5?
Yes. The Tricon architecture supports multiple companion I/O chassis connected to the main chassis via companion slot cables of the TC-205-02 series. The 4M5 designation indicates a cable length of approximately 4.5 metres, suitable for chassis mounted in adjacent or nearby rack positions. Additional I/O capacity can be added by installing further companion chassis and connecting them with the appropriate TC-205-02 cable variant, without requiring changes to the main controller or communication infrastructure.

Q4: What pre-shipment testing and warranty coverage does ZYPLC provide for the TC-205-02-4M5?
All TC-205-02-4M5 units supplied by ZYPLC are subject to pre-shipment visual and continuity inspection to verify connector integrity and cable condition. Units are shipped in original or equivalent protective packaging with full traceability documentation. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and connector failures under normal operating conditions. Expedited replacement is available for critical SIS applications. Contact our team at plc.sales@zyplc.com or +86 19859288691 for stock availability and lead times.
