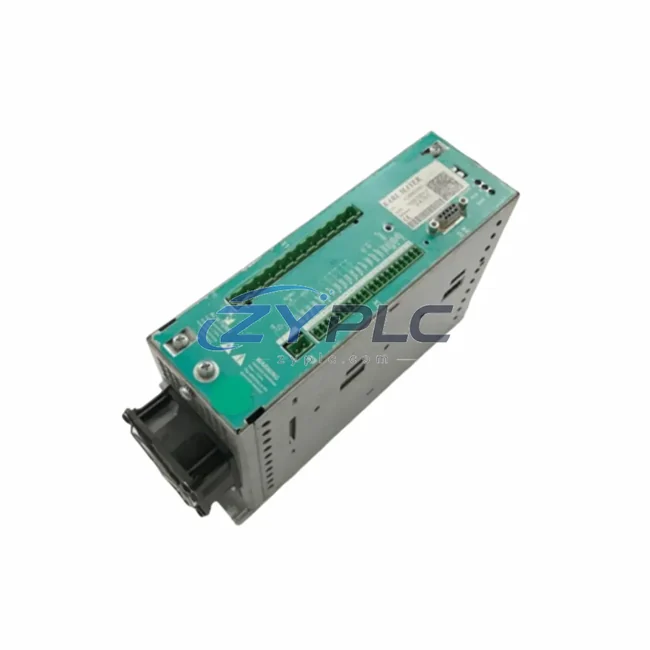

Karl Mayer CDB34 Servo Drive for CDB Series

Karl Mayer CDB34 Servo Drive for CDB Series: Control System Integration and Upstream-Downstream Coordination

In modern high-speed warp knitting and technical textile production environments, the servo drive is not a standalone component — it is the dynamic execution node of a layered automation architecture. The Karl Mayer CDB34.005C2.4 H36 servo drive module is engineered to operate as a tightly coordinated element within the Karl Mayer CDB Series control platform, delivering precise motion control, deterministic response, and seamless integration across the control layer, I/O layer, power layer, communication layer, and HMI layer of a complete machine system.

Understanding the CDB34 in isolation misses the point. Its value is realized when it is deployed within the full CDB Series architecture — where it receives motion commands from the central machine controller, executes synchronized axis positioning, feeds back real-time status data, and participates in the machine’s coordinated multi-axis motion profile. This document addresses the CDB34 from a system architecture perspective, covering its role in layered automation, its coordination with upstream and downstream components, and its contribution to system consistency, redundancy, and long-term maintainability.

Product Specification Table

System Compatibility Notes

The CDB34.005C2.4 H36 does not operate in isolation. In a Karl Mayer warp knitting machine, the complete drive system is built around a coordinated architecture where the machine controller — typically a Karl Mayer proprietary CNC or motion controller — distributes synchronized motion commands to each axis drive via the CDB bus. The CDB34 receives these commands, executes the motion profile on its assigned axis (guide bar, let-off beam, take-up roller, or pattern drive), and returns encoder feedback to the controller for closed-loop correction.

Within this architecture, the CDB34 works in close coordination with several other system components. The Karl Mayer CDB33 and CDB35 servo drive modules serve adjacent axes in the same machine, sharing the same CDB bus backbone and synchronized motion timing. The Karl Mayer CDB power supply module (DC bus supply unit) provides the shared DC link voltage that feeds all CDB series drives in the cabinet, enabling regenerative energy exchange between axes during deceleration cycles — a key efficiency feature in multi-axis textile machinery.

The Karl Mayer machine controller (MC) sits at the top of the control hierarchy, managing the motion program, pattern data, and machine sequence logic. It communicates with each CDB34 drive via the CDB bus, issuing position and velocity setpoints in real time. Below the drive layer, the Karl Mayer encoder modules and resolver interface cards provide the position feedback signals that the CDB34 uses for closed-loop servo control. Accurate feedback is essential for maintaining yarn tension consistency and pattern registration across all guide bars.

At the I/O layer, Karl Mayer I/O expansion modules handle discrete signals — machine safety interlocks, yarn break detection, fabric roll signals, and operator panel inputs — that are processed by the machine controller and translated into drive enable/disable commands for the CDB34. The Karl Mayer HMI panel provides the operator interface for parameter setting, fault diagnostics, and production monitoring, displaying real-time drive status including CDB34 current, speed, and fault codes.

For machines with redundancy requirements, the CDB Series architecture supports hot-standby configurations where a spare CDB34 module can be pre-installed in the cabinet and activated via software in the event of a primary drive fault — minimizing downtime in 24/7 production environments. The Karl Mayer cabinet wiring harness and CDB bus termination resistors complete the physical layer of the drive network, ensuring signal integrity across all connected axes.

This level of system integration — where the CDB34 is aware of its position in the machine’s motion hierarchy, shares a common DC bus, and participates in synchronized multi-axis coordination — is what distinguishes a system-compatible servo drive from a generic motion controller. Replacement or upgrade of a CDB34 module within an existing CDB Series machine requires no re-engineering of the control architecture; the module is plug-compatible with the existing bus, encoder wiring, and cabinet layout.

Industrial Application Notes

The Karl Mayer CDB34.005C2.4 H36 is deployed across a wide range of industrial textile and technical fabric production environments where precision motion control and system reliability are non-negotiable.

In warp knitting production lines (Raschel, Tricot, and Jacquard machines), the CDB34 drives the guide bar shogging mechanism, controlling lateral yarn displacement with sub-millimeter accuracy to produce consistent stitch patterns at speeds exceeding 3,000 courses per minute. Any deviation in guide bar positioning directly affects fabric quality, making the servo drive’s closed-loop performance critical to production yield.

In technical textile manufacturing — including geotextiles, medical fabrics, and composite reinforcement materials — the CDB34 controls let-off and take-up axes where constant yarn tension must be maintained regardless of beam diameter changes. The drive’s torque control mode allows it to operate as a tension-regulated axis, receiving tension setpoints from the machine controller and adjusting motor torque in real time.

In automotive and aerospace composite preform production, Karl Mayer machines equipped with CDB34 drives produce multiaxial non-crimp fabrics (NCF) where fiber orientation and layer registration are controlled by coordinated multi-axis motion. The CDB34’s synchronization capability — locking its motion profile to the machine’s master encoder — ensures that each axis maintains its phase relationship throughout the production cycle.

In maintenance and retrofit applications, the CDB34 is the preferred replacement module for aging Karl Mayer machines that were originally equipped with CDB Series drives. Its compatibility with existing CDB bus wiring, encoder interfaces, and machine controller firmware makes it a drop-in replacement that restores full machine functionality without requiring software reconfiguration or mechanical modification.

Across all these applications, the Warranty and support terms confirmed before quote provides engineering teams and procurement managers with the assurance that the CDB34 module has been tested, verified, and backed by a structured warranty process — reducing the financial risk of unplanned drive failures in production-critical environments.

Product Compatibility FAQ

Q1: Is the CDB34.005C2.4 H36 compatible with all Karl Mayer CDB Series machines, and does it require firmware matching with the machine controller?
The CDB34.005C2.4 H36 is designed for use within Karl Mayer CDB Series machine architectures. Compatibility depends on the specific machine model and the firmware version of the Karl Mayer machine controller. In most CDB Series installations, the drive module communicates via the proprietary CDB bus protocol, and the machine controller manages drive parameterization automatically upon initialization. However, for machines with customized motion programs or non-standard axis configurations, it is recommended to verify the drive firmware version against the machine controller’s compatibility matrix before installation. Our technical team can assist with firmware verification and pre-installation compatibility checks as part of the Warranty and support terms confirmed before quote service.

Q2: Can the CDB34 be installed as a direct replacement in an existing CDB Series cabinet without modifying the DC bus wiring or encoder connections?
Yes. The CDB34.005C2.4 H36 is designed as a plug-compatible replacement within the CDB Series cabinet architecture. The DC bus connections, CDB bus connectors, and encoder/resolver interface wiring are standardized across the CDB34 product family, allowing the module to be installed in the existing cabinet position without rewiring. The shared DC bus architecture means the replacement drive will automatically participate in the regenerative energy exchange network with adjacent CDB33, CDB35, and other CDB series drives. After physical installation, the machine controller will re-initialize the drive and load the axis parameters from its stored configuration — typically requiring no manual parameter entry by the maintenance engineer.

Q3: What does the Warranty and support terms confirmed before quote cover for the CDB34, and what is the process for warranty claims if the drive fails during production?
The Warranty and support terms confirmed before quote covers manufacturing defects, component failures, and functional faults that occur under normal operating conditions within the specified electrical and environmental parameters. It does not cover damage resulting from incorrect installation, overvoltage events, contamination, or operation outside the rated temperature and humidity range. In the event of a warranty claim, the failed unit should be returned with a description of the fault condition, the machine model, and the operating hours at the time of failure. A replacement unit will be dispatched to minimize production downtime. For production-critical applications, we recommend maintaining a spare CDB34 module in the control cabinet as part of a planned redundancy strategy — a practice consistent with best-in-class maintenance protocols for high-availability textile production lines.
