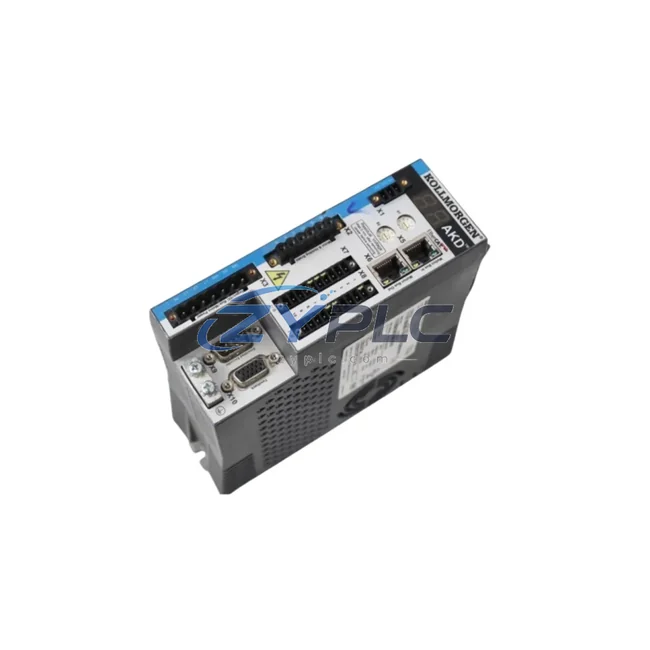

Kollmorgen AKD-P00606-NAEC-0000 Servo Drive for AKD

Kollmorgen AKD-P00606-NAEC-0000 Servo Drive for AKD

The Kollmorgen AKD-P00606-NAEC-0000 is a high-performance servo drive engineered for seamless integration within the AKD Series distributed motion control architecture. Rated at 6A continuous output current and designed for 240VAC single-phase or three-phase input, this drive occupies a critical position in the control layer of modern industrial automation systems — bridging the command intelligence of the motion controller with the precision execution of servo motors across manufacturing, packaging, semiconductor, and process automation environments.

In a fully realized AKD architecture, the AKD-P00606-NAEC-0000 does not operate in isolation. It functions as a coordinated node within a layered automation hierarchy where the Kollmorgen PCMM (Programmable Cartesian Motion Master) or AKD PDMM (Programmable Drive Multi-axis Master) issues synchronized motion commands via EtherCAT or CANopen fieldbus. The drive receives these commands, executes real-time current, velocity, and position control loops, and returns encoder feedback and status data — all within sub-millisecond cycle times that define the responsiveness of the entire motion system.

Product Specification Table

System Compatibility Notes

The AKD-P00606-NAEC-0000 achieves its full potential when deployed alongside complementary components within the Kollmorgen AKD ecosystem. At the controller level, the AKD PDMM (Programmable Drive Multi-axis Master) serves as the central motion coordinator, managing up to eight synchronized axes over EtherCAT while simultaneously executing IEC 61131-3 PLC logic — eliminating the need for a separate motion controller in compact machine designs.

For higher-axis-count systems, the Kollmorgen PCMM controller connects to a ring or line EtherCAT topology, with the AKD-P00606-NAEC-0000 and peer drives such as the AKD-P01206-NAEC-0000 (12A) and AKD-P02406-NAEC-0000 (24A) forming a scalable drive network. This architecture allows engineers to mix drive current ratings on a single EtherCAT segment, matching each axis to its load requirements without changing the control topology.

On the motor side, the AKD-P00606-NAEC-0000 is optimized for use with Kollmorgen AKM Series servo motors — including the AKM21, AKM31, and AKM41 frame sizes — leveraging the SFD3 (Smart Feedback Device 3) single-cable technology that combines power, encoder, and brake signals in one cable run. This reduces cabinet wiring complexity, shortens commissioning time, and improves signal integrity in electrically noisy environments.

Power supply architecture for AKD systems typically incorporates the Kollmorgen AKD-PSU shared DC bus power supply, which feeds a common DC rail to multiple drives. This arrangement improves energy efficiency through regenerative energy sharing between axes — when one axis decelerates, its regenerated energy is consumed by an accelerating axis on the same bus, reducing heat dissipation and utility draw. For standalone or low-power applications, the AKD-P00606-NAEC-0000 operates from its own internal rectifier without requiring an external DC bus supply.

At the I/O layer, the Kollmorgen AKD I/O Expansion Module and third-party EtherCAT I/O terminals (such as Beckhoff EK1100 couplers with EL series I/O slices) integrate directly into the same EtherCAT segment, providing digital inputs for limit switches, home sensors, and safety interlocks, as well as analog outputs for process feedback. The AKD-B00306 (3A base drive) and AKD-M00306 (3A PDMM variant) round out the lower-current end of the AKD family, enabling system designers to standardize on a single drive platform across all machine axes.

Industrial Application Notes

In packaging and converting machinery, the AKD-P00606-NAEC-0000 drives registration rollers, cut-off axes, and web tension control loops where sub-millisecond synchronization between axes determines product quality and throughput. The drive’s electronic cam and gearing modes allow complex motion profiles to be executed without external cam discs or mechanical gearboxes, reducing maintenance intervals and enabling rapid format changeovers via software parameter sets.

In semiconductor and electronics manufacturing, the drive’s low-noise current control and high-resolution feedback compatibility (EnDat 2.2, BiSS-C) support sub-micron positioning accuracy required for wafer handling, pick-and-place, and laser processing stages. The EtherCAT interface ensures deterministic communication latency, which is non-negotiable in coordinated multi-axis gantry systems.

For industrial robotics and material handling, the AKD-P00606-NAEC-0000 integrates into articulated arm controllers and linear transfer systems, where the PDMM’s built-in kinematics engine translates Cartesian path commands into individual joint torque demands in real time. The drive’s 18A peak current capability handles the inertia mismatch and acceleration demands of robotic joints without requiring oversized hardware.

In process control and energy applications — including pump drives, compressor control, and tension regulation in steel and paper mills — the drive’s torque control mode and analog reference input allow direct integration with DCS (Distributed Control System) outputs, enabling the AKD-P00606-NAEC-0000 to function as a precision actuator within a broader SCADA or DCS hierarchy.

Product Compatibility FAQ

Q1: Is the AKD-P00606-NAEC-0000 compatible with third-party EtherCAT masters and PLCs?
Yes. The AKD-P00606-NAEC-0000 implements the CANopen over EtherCAT (CoE) protocol and conforms to the CiA 402 drive profile, making it compatible with any EtherCAT master that supports CoE — including Beckhoff TwinCAT, Omron Sysmac, and Siemens SIMOTION D. The drive’s ESI (EtherCAT Slave Information) file is available from Kollmorgen’s KAS IDE software suite, enabling rapid integration into third-party control platforms without custom firmware development.

Q2: How does the warranty terms confirmed during quotation apply in a multi-axis system where drives are installed in a shared DC bus configuration?
The warranty terms confirmed during quotation covers the AKD-P00606-NAEC-0000 drive unit independently of the power supply architecture. Whether the drive is operated from its internal rectifier or connected to a shared AKD-PSU DC bus, the warranty covers drive electronics, gate driver circuits, control board, and communication interfaces. Warranty claims require the drive serial number and purchase documentation; bus-level faults caused by external power supply failures are assessed separately. Our technical team provides pre-RMA diagnostic support to isolate fault origin before any return is initiated.

Q3: What is the recommended commissioning procedure for integrating the AKD-P00606-NAEC-0000 into an existing AKD multi-axis system?
Commissioning begins with Kollmorgen’s KAS IDE (Kollmorgen Automation Suite Integrated Development Environment), which provides auto-tuning wizards, motor database integration, and real-time oscilloscope tools for current, velocity, and position loop tuning. For AKM motor pairings, the SFD3 feedback interface enables one-click motor identification — the drive reads motor nameplate data directly from the feedback device, eliminating manual parameter entry. After axis-level tuning, the EtherCAT network is scanned and the drive is assigned its node address and PDO (Process Data Object) mapping within the master’s configuration. Full system validation includes following-error testing, limit switch verification, and safety function confirmation (STO — Safe Torque Off) before production release.
