Kollmorgen AKD-P00606-NBEC-0051 EtherCAT Servo Drive — Industrial Data Link for Smart Factory Connectivity

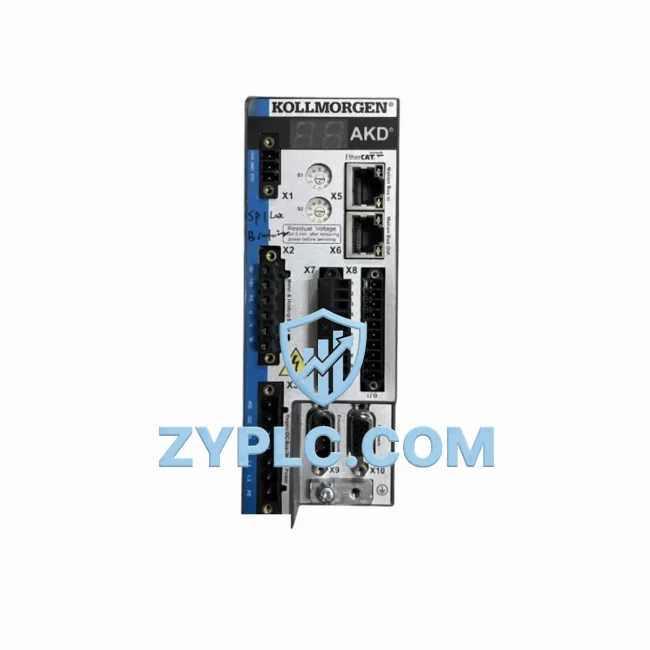

The Kollmorgen AKD-P00606-NBEC-0051 is a compact, high-performance EtherCAT servo drive engineered for seamless integration into modern industrial networks. As part of the Kollmorgen AKD series, this unit serves as a critical data node between field-level motion devices and supervisory control platforms, enabling real-time communication across every layer of the automation architecture. Whether you are building a new production line or upgrading legacy motion systems, the AKD-P00606-NBEC-0051 delivers the protocol versatility, network stability, and diagnostic transparency that smart factory environments demand.

In a typical industrial data flow, signals originate at the sensor and actuator level — encoders, proximity switches, and load cells feed position, speed, and torque data into the servo drive. The AKD-P00606-NBEC-0051 processes these signals locally, executing closed-loop motion profiles with sub-millisecond cycle times over its native EtherCAT fieldbus. From there, process data is transmitted upstream through an EtherCAT master — often a Kollmorgen KAS (Kollmorgen Automation Suite) controller or a third-party PLC — which orchestrates multi-axis coordination across the machine. In installations where the AKD-P00606-NBEC-0051 operates alongside other AKD-series drives such as the AKD-P00306-NBEC-0000 or the higher-power AKD-P01206-NBEC-0000, the EtherCAT daisy-chain topology minimizes cabling complexity while maintaining deterministic data exchange among all nodes.

Protocol conversion is one of the most valuable capabilities this drive brings to a connected factory. While the primary fieldbus is EtherCAT, the AKD platform supports configuration and monitoring through its built-in Ethernet service port, allowing engineers to access the Kollmorgen WorkBench commissioning software from any point on the plant network. This dual-channel architecture means that real-time motion data flows uninterrupted on the EtherCAT segment, while diagnostic, tuning, and firmware-update traffic is isolated on the service network. For sites running SCADA or MES platforms, this separation ensures that supervisory polling never competes with time-critical servo commands.

At the cell level, the AKD-P00606-NBEC-0051 frequently pairs with Kollmorgen AKM series servo motors, whose single-cable digital-feedback technology reduces wiring by combining power and encoder signals in one connector. The drive auto-identifies the connected AKM motor on power-up, loading the correct commutation parameters and thermal model without manual entry. This plug-and-play capability accelerates commissioning and reduces configuration errors — a significant advantage when deploying dozens of axes across a packaging, converting, or semiconductor-handling line.

Remote diagnostics represent another pillar of the AKD platform’s value in Industry 4.0 environments. Every drive continuously logs fault history, temperature trends, bus voltage, and I²t loading. When integrated with an HMI panel or a SCADA gateway, operators gain live dashboards showing each axis’s health status. If a fault occurs — such as an over-temperature warning on the AKD-P00606-NBEC-0051 or a following-error alarm on a neighboring AKD-M00306 integrated motor-drive unit — the system can trigger automated alerts, enabling maintenance teams to respond before unplanned downtime escalates. In multi-cell factories, an edge gateway aggregating EtherCAT data from several AKD drives and forwarding it to a cloud analytics platform transforms raw motion telemetry into predictive-maintenance insights.

Network stability is ensured through the EtherCAT protocol’s built-in redundancy and error-detection mechanisms. The AKD-P00606-NBEC-0051 supports hot-connect functionality, allowing drives to be added or removed from the network segment without restarting the master controller — a feature that is essential in modular machine designs where different product recipes require different axis configurations. Combined with the Kollmorgen S700 series drives that may coexist on the same EtherCAT segment for legacy or specialized axes, the AKD platform provides a migration path that protects existing infrastructure investments while enabling next-generation performance.

System expansion is straightforward. The AKD-C central power-supply module can feed DC bus power to multiple AKD drives through a shared bus architecture, reducing cabinet space and improving energy efficiency through regenerative braking across axes. Adding a new axis is as simple as mounting another AKD drive, connecting the DC bus and EtherCAT cables, and scanning the network from the KAS IDE or third-party EtherCAT master. For applications requiring direct-drive rotary or linear motion, the Kollmorgen KBM frameless motor kit can be paired with the AKD-P00606-NBEC-0051, delivering high torque density without the backlash of geared solutions.

Every AKD-P00606-NBEC-0051 unit shipped from our facility undergoes comprehensive functional testing — including EtherCAT communication verification, power-stage validation, and firmware-version confirmation — to ensure it arrives ready for immediate installation. We maintain dedicated inventory of AKD-series drives and accessories to support urgent production requirements with minimal lead time.

Compatibility & Integration Notes

Connected Automation Data Flow

In a connected automation cell, the AKD-P00606-NBEC-0051 sits at the intersection of motion execution and network intelligence. Sensor signals — from inductive proximity switches, laser distance sensors, or vision systems — feed reference data into the EtherCAT master, which distributes synchronized position commands to every AKD drive on the segment. The AKD-P00606-NBEC-0051 closes the position loop locally, reporting actual position, velocity, and torque back to the master within the same communication cycle. Upstream, the KAS controller or a Siemens, Beckhoff, or Rockwell EtherCAT-capable PLC aggregates this data and forwards key performance indicators to an HMI panel for operator visualization or to a SCADA server for plant-wide trending. When paired with an industrial Ethernet switch — such as a managed switch supporting IGMP snooping and QoS prioritization — the service-port traffic from multiple AKD drives can be routed to a centralized engineering workstation running WorkBench, enabling simultaneous monitoring and tuning of every axis without physically visiting each cabinet. An edge computing gateway collecting EtherCAT diagnostic frames can further relay anomaly data to cloud-based analytics platforms, closing the loop between shop-floor motion and enterprise-level decision-making.

Solving Data Isolation in Industrial Sites

Many manufacturing facilities still operate with islands of automation — standalone machines running proprietary protocols that cannot share data with neighboring cells or with plant-level information systems. The AKD-P00606-NBEC-0051 addresses this challenge by providing a standardized EtherCAT interface that unifies motion data across machines, regardless of the original equipment manufacturer. By replacing legacy analog or pulse-train drive interfaces with EtherCAT-networked AKD drives, engineers eliminate point-to-point wiring, reduce signal-conversion errors, and gain access to a rich set of diagnostic objects that were previously invisible. For brownfield upgrades, the AKD’s support for multiple feedback types — including resolver, incremental encoder, and absolute digital protocols like EnDat 2.2 and BiSS — means existing motors can often be retained while the communication backbone is modernized. The result is a transparent production line where every axis reports its status in real time, maintenance can be scheduled based on actual operating data rather than calendar intervals, and new equipment can be integrated into the network in hours rather than days. This connectivity-first approach directly supports lean manufacturing, overall equipment effectiveness (OEE) improvement, and the scalability requirements of growing operations.

Industrial Connectivity FAQ

Q1: What is the typical communication latency of the AKD-P00606-NBEC-0051 on an EtherCAT network?
The drive supports EtherCAT cycle times as low as 250 microseconds, enabling deterministic, real-time motion control suitable for high-speed packaging, printing registration, and multi-axis interpolation applications.

Q2: Is the AKD-P00606-NBEC-0051 compatible with third-party EtherCAT masters?
Yes. The drive conforms to the ETG (EtherCAT Technology Group) standard and operates with any compliant EtherCAT master, including platforms from Beckhoff TwinCAT, Siemens TIA Portal (with EtherCAT support), Rockwell ControlLogix (via gateway), and open-source masters such as SOEM and IgH.

Q3: How does the drive maintain network stability during production?
EtherCAT’s hardware-processed telegram forwarding ensures that each node adds only nanoseconds of delay. The AKD-P00606-NBEC-0051 includes built-in CRC error counters, lost-frame detection, and automatic link-loss reporting, allowing the master to identify degraded cable segments before they cause faults. Hot-connect support further enhances uptime in modular machine configurations.

Q4: What warranty and pre-shipment testing do you provide?
Every unit undergoes full functional testing — including EtherCAT communication handshake, power-stage integrity check, and firmware verification — before dispatch. We provide a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our inventory program ensures fast availability for urgent replacement and new-project requirements.
