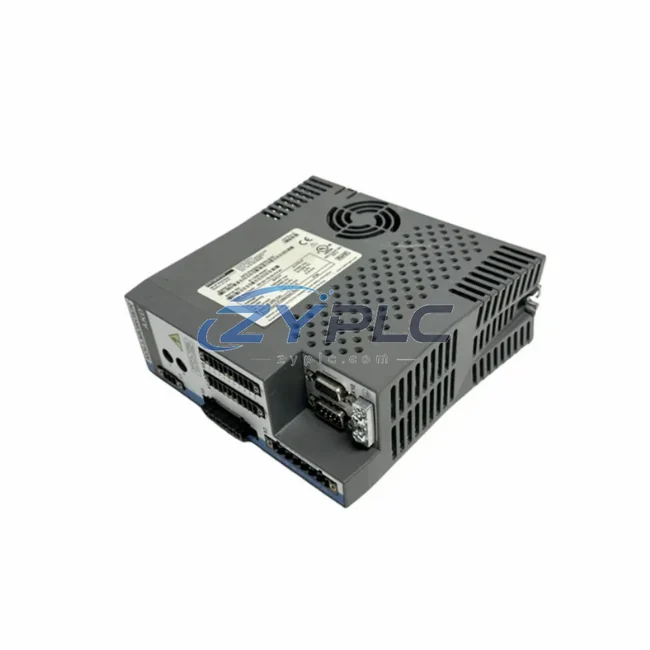

Kollmorgen AKD-P00607-NBPN-0000 Servo Drive

Kollmorgen AKD-P00607-NBPN-0000 Servo Drive for AKD Series Automation

The Kollmorgen AKD-P00607-NBPN-0000 is a high-performance servo drive from the AKD series, engineered to deliver precise, energy-efficient motor control in demanding industrial automation environments. Rated at 6 A continuous output current and designed for 240 VAC single- or three-phase input, this drive integrates seamlessly into modern production lines where reducing unplanned downtime, maximizing equipment utilization, and minimizing unplanned downtime are operational priorities. Every unit shipped by ZYPLC is sourced from verified supply channels, subjected to full functional testing prior to dispatch, and backed by a warranty terms confirmed during quotation.

Product Specification Table

System Compatibility and Application

In a fully integrated maintenance-focused automation system, the AKD-P00607-NBPN-0000 operates as the precision execution layer between the control platform and the physical motor load. At the supervisory level, a Kollmorgen KAS (Kollmorgen Automation Suite) controller or a compatible EtherCAT master PLC — such as a Beckhoff CX2040 or Omron NX1P2 — issues real-time motion commands via EtherCAT CoE, achieving sub-millisecond cycle synchronization across multi-axis systems. This tight coupling eliminates the energy losses associated with asynchronous command execution and unnecessary motor dwell time.

On the feedback side, the AKD-P00607-NBPN-0000 supports EnDat 2.2 absolute encoders and SFD (Smart Feedback Device) interfaces, enabling the drive to continuously monitor rotor position and velocity with high resolution. This data feeds directly into the drive’s adaptive current loop, which dynamically adjusts the PWM switching pattern to minimize copper losses in the motor windings — a measurable reduction in heat generation and energy draw during partial-load cycles. When paired with a Kollmorgen AKM2G servo motor, the system achieves optimal flux vector control, further reducing reactive power consumption.

For condition monitoring at the panel level, integrating a Schneider Electric PowerLogic PM5560 or a Siemens SENTRON PAC3200 power meter on the same bus allows facility engineers to capture real-time kWh consumption per drive axis. This data, when fed into a SCADA or MES layer via Modbus TCP — a protocol natively supported by the AKD-P00607-NBPN-0000 — enables granular energy accounting per production cell. Operators can identify which axes consume disproportionate energy during specific motion profiles and retune velocity ramps or torque limits accordingly.

At the I/O and safety layer, a Kollmorgen AKD-C central power supply module can be used in multi-axis cabinet configurations to share DC bus energy between drives, allowing regenerative braking energy from decelerating axes to be reused by accelerating axes on the same bus — a topology that can reduce net energy draw by Actual operating results depend on the installed system, load profile, and commissioning parameters. Complementing this, a Phoenix Contact QUINT POWER 24VDC supply ensures stable logic-level power to the drive’s control board, preventing nuisance faults caused by voltage sag during high-inrush motor starts.

For distributed I/O expansion, the AKD-P00607-NBPN-0000 integrates cleanly with Beckhoff EL series EtherCAT I/O terminals or Omron GX-series EtherCAT slaves, enabling precise digital and analog I/O mapping without additional fieldbus gateways. This reduces wiring complexity, lowers panel heat load, and shortens commissioning time — all of which contribute to lower total energy cost per installed axis. An HMI such as the Weintek cMT3151 or Siemens KTP700 Basic can be used to visualize drive status, operating load trends, and alarm history directly on the production floor, giving operators actionable insight without requiring remote access to the engineering workstation.

Maintenance and Replacement Notes

In high-throughput packaging lines, the AKD-P00607-NBPN-0000 is typically deployed on infeed conveyor axes, film pull axes, and rotary sealing heads — positions where precise velocity synchronization directly determines film waste, seal quality, and line OEE. By executing velocity profiles with torque feedforward compensation, the drive eliminates the velocity overshoot that causes film stretch and seal misalignment, reducing material waste and the energy consumed by rework or rejection handling downstream.

In CNC machining centers, the drive’s high-bandwidth current loop — capable of following torque commands with update rates up to 16 kHz — allows the spindle and feed axes to track aggressive cutting profiles without the velocity lag that causes tool chatter. Chatter not only degrades surface finish but forces operators to reduce feed rates, extending cycle time and increasing operating load per part. With the AKD-P00607-NBPN-0000 maintaining tight torque control, feed rates can be pushed closer to the tool’s rated capacity, improving energy efficiency per unit of material removed.

Predictive maintenance integration is another key maintenance planning lever. The drive’s internal diagnostics continuously monitor motor current signature, bus voltage ripple, and thermal load. When these parameters trend toward fault thresholds, the KAS platform or connected SCADA system can schedule preventive maintenance during planned downtime windows rather than responding to unplanned failures. Unplanned stops in automated lines are disproportionately energy-intensive: restarting cold equipment, purging in-process material, and running quality verification cycles all consume energy without producing output. By keeping the AKD-P00607-NBPN-0000 and its associated motor in optimal condition, facilities reduce both the frequency and energy cost of these events.

ZYPLC maintains ready inventory of the AKD-P00607-NBPN-0000 and related AKD series components, with all units undergoing full load and communication testing before shipment. Standard lead time is 1–3 business days from order confirmation, and every unit is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failure.

Product Sourcing FAQ

Q1: How much energy can the AKD-P00607-NBPN-0000 save compared to a standard AC drive?
A: The AKD-P00607-NBPN-0000 uses a fully digital, adaptive current loop with field-oriented control (FOC), which typically reduces motor copper losses by 10–25% compared to V/Hz-controlled AC drives at partial loads. In multi-axis DC bus sharing configurations with the AKD-C module, regenerative braking energy recovery can further reduce net operating load by Actual operating results depend on the installed system, load profile, and commissioning parameters.

Q2: Is the AKD-P00607-NBPN-0000 compatible with my existing EtherCAT or CANopen control system?
A: Yes. The AKD-P00607-NBPN-0000 natively supports EtherCAT (CoE, CiA 402 motion profile) and CANopen, making it compatible with a wide range of EtherCAT masters and CANopen PLCs. It also supports Modbus TCP for integration with SCADA and condition monitoring systems. If you are migrating from an older AKD variant, the AKD-P00607-NBPN-0000 is a direct drop-in replacement with the same mechanical footprint and connector layout.

Q3: What is the recommended replacement or upgrade path if my current servo drive is failing?
A: The AKD-P00607-NBPN-0000 is a direct replacement for other AKD 6 A variants with the NBPN option code (no fieldbus card, no brake, standard I/O). Before replacement, verify the motor feedback type (SFD, EnDat, or resolver) and the fieldbus protocol in use. ZYPLC’s technical team can assist with compatibility verification at no charge prior to purchase.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
A: Every AKD-P00607-NBPN-0000 shipped by ZYPLC undergoes a full functional test including power-on verification, communication interface check (EtherCAT/CANopen/Modbus), output current calibration verification, and thermal cycling. The warranty terms confirmed during quotation covers all functional failures under normal operating conditions, including drive electronics, firmware, and communication interfaces. Physical damage caused by incorrect installation or overvoltage events is excluded. Warranty claims are processed within 5 business days of receipt.
