Kollmorgen S403AM-PB Industrial Network Interface for ServoStar 400

Kollmorgen S403AM-PB: Industrial Data Link for ServoStar 400 Smart Factory Networks

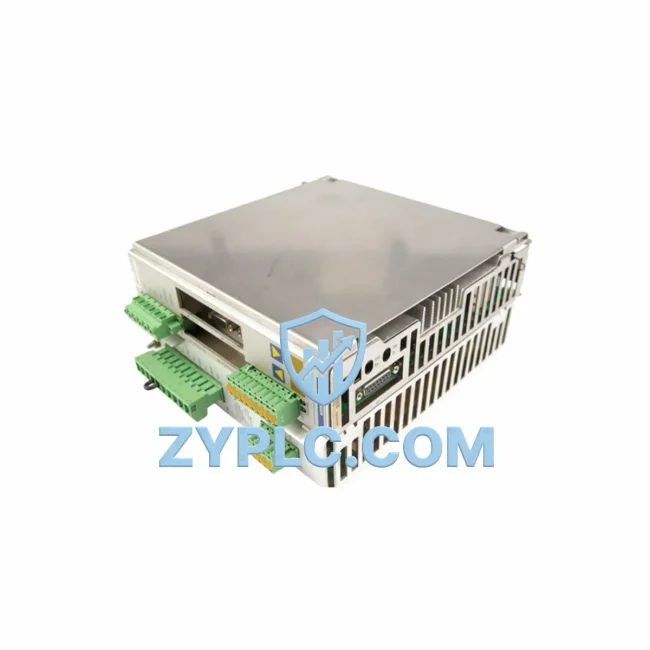

The Kollmorgen S403AM-PB is a PROFIBUS-DP enabled digital servo drive from the renowned ServoStar 400 series, engineered to serve as a high-performance industrial network interface between field-level motion devices and upper-level control architectures. In modern smart factory environments, where seamless data flow between PLCs, HMIs, SCADA systems, and servo axes is mission-critical, the S403AM-PB delivers the protocol intelligence and communication reliability that industrial engineers demand.

At its core, the S403AM-PB integrates a PROFIBUS-DP fieldbus interface directly into the servo drive, eliminating the need for external protocol converters or gateway modules in many standard automation topologies. This native communication capability allows the drive to exchange real-time position, velocity, torque, fault status, and diagnostic data with master controllers across the PROFIBUS network — enabling closed-loop motion control with deterministic cycle times essential for precision manufacturing.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the Kollmorgen S403AM-PB sits at the intersection of the field device layer and the control network. The data flow begins at the sensor and actuator level — encoders, resolvers, and torque transducers feed real-time feedback into the S403AM-PB’s internal motion controller. This processed data is then transmitted upstream via PROFIBUS-DP to a Siemens S7-300 or S7-400 PLC acting as the PROFIBUS master, where the motion profile is coordinated with broader machine logic.

Within multi-axis systems, the S403AM-PB operates alongside other ServoStar 400 series drives — such as the S406AM-PB (6A variant) and S412AM-PB (12A variant) — sharing the same PROFIBUS segment and GSD configuration file, which dramatically simplifies network commissioning and parameter management across an entire servo axis group. The PROFIBUS master polls each drive node cyclically, ensuring synchronized motion commands are delivered with deterministic latency.

At the HMI layer, operator panels such as Siemens TP700 Comfort or Weintek MT8000 series HMIs connect to the PROFIBUS master PLC via MPI or PROFINET, visualizing drive status, alarm codes, and real-time velocity feedback sourced directly from the S403AM-PB. SCADA platforms — including Wonderware InTouch or Ignition SCADA — aggregate this data through OPC-DA or OPC-UA gateways, enabling plant-wide production monitoring and historical trending of servo performance metrics.

For installations requiring protocol bridging between PROFIBUS and Ethernet-based networks, a Moxa MGate MB3480 or HMS Anybus X-gateway can be deployed to translate PROFIBUS-DP data into Modbus TCP or EtherNet/IP, extending the S403AM-PB’s data visibility into cloud-based MES or ERP systems without modifying the existing fieldbus infrastructure. Remote I/O modules such as Siemens ET 200S distributed I/O can also share the same PROFIBUS segment, consolidating digital and analog I/O data alongside servo drive telemetry in a single network scan cycle.

Power quality and network stability are supported by Kollmorgen PS01 series servo power supplies, which provide regulated DC bus voltage to the S403AM-PB and companion drives, while line filters and EMC chokes ensure that high-frequency switching noise does not corrupt PROFIBUS signal integrity on the shared fieldbus cable.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is protocol fragmentation — machines running proprietary serial interfaces, older RS-232/RS-485 links, or isolated analog I/O that cannot natively participate in a unified control network. The Kollmorgen S403AM-PB directly addresses this by providing a standardized PROFIBUS-DP interface that integrates servo motion data into the plant’s existing fieldbus backbone without requiring custom software drivers or middleware.

Data silos are eliminated when the S403AM-PB’s cyclic PROFIBUS data — including actual position, following error, drive temperature, and fault codes — becomes accessible to the SCADA historian in real time. Maintenance teams gain remote diagnostic capability: from a central engineering workstation, technicians can read drive parameters, reset faults, and monitor thermal load trends without physically accessing the control cabinet. This remote visibility reduces unplanned downtime and accelerates root-cause analysis when motion faults occur.

Production line transparency is further enhanced through the drive’s acyclic PROFIBUS-DP V1 services, which allow parameter read/write operations from the PLC master during runtime — enabling adaptive motion tuning, recipe-based speed profile switching, and predictive maintenance data collection without halting the production cycle. As factory automation requirements evolve, the S403AM-PB’s PROFIBUS node address and baud rate are software-configurable, making it straightforward to expand the network with additional servo axes or integrate new machine modules into the existing PROFIBUS segment.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying PROFIBUS communication handshake, drive enable/disable response, and fault relay output before dispatch. All S403AM-PB units are covered by a 12-month warranty, with in-stock availability ensuring short lead times for MRO replacement and new project builds alike.

Industrial Connectivity FAQ

Q1: What is the maximum PROFIBUS-DP baud rate supported by the Kollmorgen S403AM-PB?
The S403AM-PB supports PROFIBUS-DP baud rates from 9.6 kbps up to 12 Mbps with automatic baud rate detection. In practice, most industrial installations operate at 1.5 Mbps or 6 Mbps to balance network scan cycle time with cable length constraints, ensuring deterministic communication latency below 1 ms for motion-critical applications.

Q2: Is the S403AM-PB compatible with both PROFIBUS-DP V0 and V1 masters?
Yes. The S403AM-PB supports both PROFIBUS-DP V0 cyclic data exchange and DP V1 acyclic parameter access. A standard GSD (General Station Description) file is available for import into Siemens STEP 7, TIA Portal, and other PROFIBUS configuration tools, enabling straightforward integration with any compliant DP master controller.

Q3: Can the S403AM-PB be monitored remotely through a SCADA system?
Absolutely. When connected to a PROFIBUS master PLC with an Ethernet or PROFINET uplink, the S403AM-PB’s real-time data — including speed, torque, position error, and alarm status — can be exposed to SCADA platforms via OPC-DA or OPC-UA servers. This enables remote monitoring, alarm management, and historical data logging without any additional hardware at the drive level.

Q4: What warranty and testing does ZYPLC provide for the S403AM-PB?
All Kollmorgen S403AM-PB units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures. Each unit undergoes pre-shipment testing that validates PROFIBUS communication, drive power stage operation, and I/O functionality. In-stock units are available for immediate dispatch, supporting both urgent MRO replacement and planned project procurement timelines.
