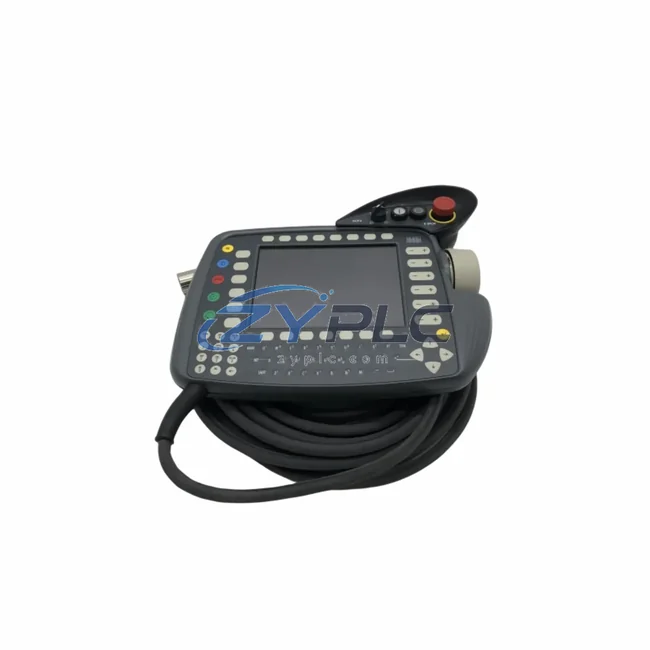

KUKA 00-130-547 Industrial Robot Teach Pendant for KRC2 Systems

KUKA 00-130-547 Industrial Network Interface for KRC2 Systems: Smart Factory Data Link and Protocol Gateway

The KUKA 00-130-547 is a precision-engineered industrial teach pendant and HMI gateway designed for the KUKA KRC2 robot controller platform. As a core node in the smart factory communication chain, this smartPAD-series device bridges field-level robot control with upper-layer SCADA, DCS, and MES systems through native support for ProfiNet, EtherCAT, and DeviceNet — three of the most widely deployed industrial communication protocols in automated manufacturing environments. Whether deployed in automotive body shops, electronics assembly lines, or heavy-industry welding cells, the 00-130-547 delivers the real-time data visibility and protocol interoperability that modern smart factories demand.

In today’s industrial landscape, the teach pendant has evolved far beyond a simple robot programming tool. It now functions as a live data terminal and protocol gateway — transmitting robot axis positions, I/O states, program status, alarm codes, and process variables upstream to supervisory systems while simultaneously receiving setpoint updates and production parameters from PLC and SCADA layers. The KUKA 00-130-547 is engineered to fulfill this dual role with industrial-grade reliability, supporting bidirectional communication across heterogeneous network architectures without requiring external protocol converters for standard deployments.

Compatibility & Integration Notes

Connected Automation Data Flow

The KUKA 00-130-547 occupies a critical position in the industrial data chain — sitting between field-level robot hardware and plant-wide supervisory systems. In a typical smart factory deployment, the data flow begins at the sensor and actuator layer, where proximity sensors, vision systems, and servo drives feed real-time signals into the KUKA KRC2 controller. The 00-130-547 teach pendant serves as the local HMI node, displaying live axis positions, program states, and I/O diagnostics while simultaneously forwarding structured data packets upstream via ProfiNet to a Siemens S7-1500 PLC managing the broader production cell.

Within the robot workcell, the KRC2 controller communicates with KUKA KSD 48/60 servo drive units and KUKA KPP 600 power packs over EtherCAT, enabling sub-millisecond cycle synchronization across multi-axis motion sequences. The 00-130-547 pendant provides the operator interface for monitoring these synchronized processes, with alarm acknowledgment and parameter adjustment capabilities that feed directly back into the KRC2 control loop. In multi-robot workcells, additional KUKA KR C4 compact controllers can be integrated into the same EtherCAT ring, with the 00-130-547 serving as the primary operator access point for the entire cell.

At the protocol conversion layer, data aggregated from the KRC2 network is normalized by gateways such as the Anybus X-gateway ProfiNet-to-EtherNet/IP or Moxa MGate MB3480 serial-to-Ethernet converters, which translate robot data for consumption by Wonderware InTouch or Ignition SCADA platforms. This allows plant engineers to monitor robot uptime, cycle counts, fault histories, and OEE metrics from centralized dashboards without interrupting production. For legacy field device integration, the DeviceNet interface of the KRC2 network supports connectivity with Allen-Bradley 1756-DNB DeviceNet Bridge modules, preserving investments in existing field wiring while enabling data visibility at the SCADA layer.

Edge computing nodes — such as the Siemens SIMATIC IPC427E industrial PC — can subscribe to the KRC2 data stream to perform local analytics, predictive maintenance calculations, and production quality scoring before forwarding summarized metrics to cloud MES platforms. Remote I/O modules connected via ProfiNet extend the reach of the KRC2 network to distributed field devices across the production floor, with the 00-130-547 pendant providing the operator visibility layer that keeps technicians informed of system-wide status in real time. The result is a fully connected automation data chain — from sensor signal to SCADA dashboard — anchored by the KUKA 00-130-547 as the authoritative robot-state HMI and protocol gateway.

Solving Data Isolation in Industrial Sites

Protocol fragmentation and data isolation remain among the most costly challenges in industrial automation. A facility running KUKA KRC2 robots alongside newer KRC4 systems, Siemens PLCs, third-party conveyors, and legacy PROFIBUS field devices often faces a situation where robot performance metrics are invisible to the SCADA layer, PLC alarms never reach the MES, and maintenance teams must physically walk the floor to diagnose faults. The KUKA 00-130-547 Teach Pendant directly addresses this by providing a unified HMI interface that supports ProfiNet, EtherCAT, and DeviceNet simultaneously — allowing it to participate in heterogeneous network topologies without requiring a dedicated protocol gateway for every device pair.

Remote monitoring and diagnostics are transformed through the pendant’s Ethernet interface and SCADA-compatible data output. Maintenance engineers can access robot diagnostics, error logs, program states, and axis health indicators from remote workstations — eliminating the need for on-site intervention for routine status checks. This capability is especially valuable in multi-site manufacturing operations where a central engineering team supports robot cells across geographically distributed plants, reducing travel costs and mean time to repair (MTTR) for production-critical equipment.

Production line transparency is achieved through the pendant’s real-time data publishing, which feeds cycle time, reject rate, and axis wear indicators into MES dashboards, enabling data-driven production planning and proactive maintenance scheduling. As production volumes scale, additional KUKA KRC2 units and their associated 00-130-547 pendants can be added to the existing ProfiNet or EtherCAT network topology without architectural changes — providing a scalable, non-disruptive path to full plant digitization. Every unit supplied by ZYPLC undergoes pre-shipment functional testing covering communication interface verification, display integrity, keypad response, and emergency stop circuit continuity, and is covered by a warranty terms confirmed during quotation from the date of delivery.

Industrial Connectivity FAQ

Q1: What communication protocols does the KUKA 00-130-547 support, and is it compatible with Siemens PROFIBUS networks?
The KUKA 00-130-547 natively supports ProfiNet, EtherCAT, and DeviceNet. For PROFIBUS integration, a protocol gateway such as the Anybus Communicator or Siemens DP/PN Coupler is recommended to bridge the KRC2 network to legacy PROFIBUS segments without replacing existing field wiring.

Q2: What is the typical communication latency between the KRC2 controller and a connected SCADA system via ProfiNet?
Under standard ProfiNet RT (Real-Time) configuration, cycle times of 1–4 ms are achievable between the KRC2 controller and the SCADA gateway. For IRT (Isochronous Real-Time) applications requiring sub-millisecond synchronization, EtherCAT is the preferred protocol within the robot cell, with ProfiNet handling the upstream SCADA link.

Q3: Can the KUKA 00-130-547 be used with KRC4 controllers, and how is system expansion handled?
The 00-130-547 is designed for the KRC2 platform. Compatibility with KRC4 requires an adapter harness and firmware verification. System expansion within a KRC2 network is straightforward — additional robot cells with their own KRC2 controllers and 00-130-547 pendants can be added to the ProfiNet or EtherCAT ring topology without reconfiguring existing nodes, supporting scalable smart factory growth.

Q4: What quality assurance and warranty coverage does ZYPLC provide for the KUKA 00-130-547?
Every KUKA 00-130-547 unit shipped by ZYPLC undergoes pre-shipment functional testing covering communication interface verification, display integrity, keypad response, and emergency stop circuit continuity. All units are covered by a warranty terms confirmed during quotation from the date of delivery. In the event of a fault within the warranty period, ZYPLC provides replacement or repair support with priority handling for production-critical applications.
