KUKA 00-136-893 Servo Motor | 1FK7 Series

KUKA 00-136-893 Servo Motor | 1FK7 Series Efficiency Control & Production Line Optimization

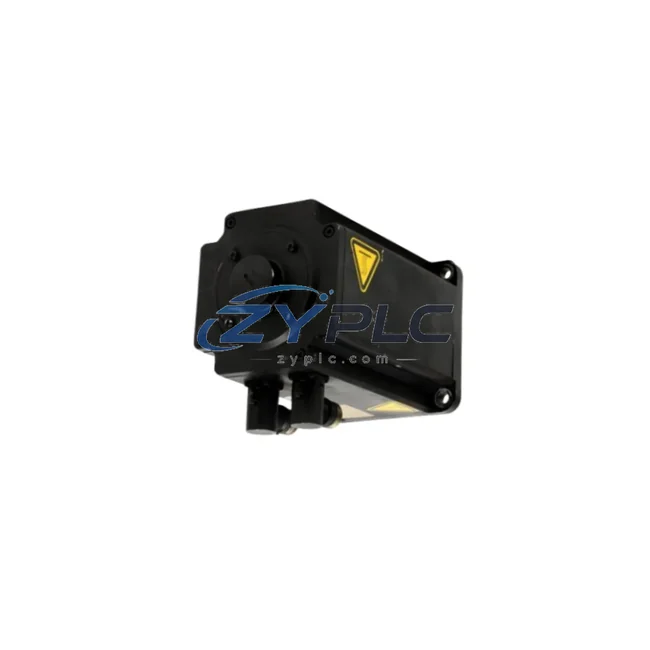

The KUKA 00-136-893 (full SKU: 1FK7103-5AF81-1SH3-Z) is a high-performance permanent-magnet synchronous servo motor from KUKA’s proven 1FK7 Series. Engineered for precision motion control in demanding industrial environments, this servo motor delivers exceptional torque density, low rotor inertia, and outstanding energy conversion efficiency — making it a cornerstone component for factories seeking to reduce idle operating load, tighten production cycle times, and extend equipment service life.

Whether integrated into KUKA robotic arms, multi-axis CNC machining centers, automated assembly lines, or material handling systems, the 00-136-893 provides the dynamic response and thermal stability required to sustain continuous high-duty-cycle operations without compromising energy budgets.

Product Specification Table

System Compatibility and Application

In a modern energy-optimized production cell, the KUKA 00-136-893 1FK7103-5AF81-1SH3-Z does not operate in isolation — it functions as the precision actuator within a tightly integrated control and monitoring ecosystem. Understanding how this servo motor interacts with surrounding components is key to unlocking its full efficiency potential.

At the drive layer, the 1FK7103-5AF81-1SH3-Z is typically paired with a SINAMICS S120 servo drive module (e.g., 6SL3120-1TE21-0AA3), which governs torque, speed, and position loops with millisecond-level response. The DRIVE-CLiQ interface between the motor encoder and the S120 eliminates the need for separate encoder cables, reducing wiring complexity and signal latency — both of which contribute to measurable operational stability through tighter closed-loop control.

At the controller level, the KUKA KRC5 robot controller or a SIMATIC S7-1500 PLC (such as the CPU 1516-3 PN/DP) orchestrates motion sequences, manages axis interpolation, and enforces operational-efficiency standby modes during production pauses. When integrated with a SIMATIC ET 200SP distributed I/O system, the controller can dynamically adjust servo torque limits based on real-time load feedback, preventing unnecessary energy draw during light-load phases.

For condition monitoring, a SENTRON PAC3200 power monitoring device or SIRIUS 3UF7 motor management relay can be installed upstream of the servo drive to capture active power (kW), reactive power (kVAR), and power factor in real time. This data feeds into a SIMATIC Energy Manager PRO software layer, enabling plant engineers to identify peak consumption windows, correlate energy spikes with specific motion profiles, and implement load-shifting strategies across multiple servo axes.

On the communication backbone, PROFINET IO connects the KRC5 controller, S120 drive, and ET 200SP I/O modules into a deterministic network with cycle times under 1 ms — ensuring that operational-efficiency commands (such as reduced speed during non-productive travel) are executed without delay. For installations requiring functional safety, a SINAMICS S120 Safety Integrated option card enables Safe Torque Off (STO) and Safe Stop 1 (SS1) functions, cutting motor power during e-stops without full drive shutdown, thereby reducing restart energy transients.

At the HMI layer, a SIMATIC HMI TP1200 Comfort Panel provides operators with live visualization of servo load curves, operating load trends, and alarm histories — empowering line supervisors to make informed decisions about production scheduling and preventive maintenance intervals. When combined with a SCALANCE X208 industrial Ethernet switch, all these components share a unified network infrastructure, simplifying diagnostics and reducing the overhead of multi-protocol integration.

Maintenance and Replacement Notes

The KUKA 00-136-893 servo motor delivers its most significant operational stability not through a single feature, but through the cumulative effect of precision control, reduced mechanical losses, and intelligent system integration across the production cycle.

In automotive body welding lines, where servo axes cycle thousands of times per shift, the 1FK7103-5AF81-1SH3-Z’s low rotor inertia allows the SINAMICS S120 drive to execute rapid acceleration and deceleration profiles with minimal overshoot. This translates directly into shorter cycle times — tightening production line takt — while simultaneously reducing the reactive energy generated by over-damped motion profiles. Plants that have migrated from legacy induction motor drives to 1FK7-series servo systems report energy reductions of Actual operating results depend on the installed system, load profile, and commissioning parameters.

In electronics assembly and semiconductor handling applications, where the servo motor operates at partial load for extended periods, the absolute multiturn encoder provides continuous position feedback without requiring homing cycles after power interruptions. This eliminates the energy and time cost of re-referencing axes after planned or unplanned stops — a frequently overlooked source of production inefficiency. The encoder’s battery-backed position retention also reduces the risk of scrap parts caused by axis position errors following power outages.

For predictive maintenance, the thermal model embedded in the SINAMICS S120 drive continuously estimates winding temperature based on current draw and ambient conditions, triggering early warnings before thermal derating occurs. This allows maintenance teams to schedule motor inspections during planned downtime rather than reacting to unexpected failures — reducing both unplanned downtime costs and the unplanned downtime associated with emergency restarts and production catch-up cycles.

From a supply chain perspective, the KUKA 00-136-893 is maintained RFQ Available and undergoes a comprehensive pre-shipment functional test covering no-load run, encoder signal integrity, insulation resistance, and vibration signature analysis. Each unit ships with a warranty terms confirmed during quotation, providing procurement teams with the confidence to plan maintenance budgets and spare parts inventories without excessive safety stock buffers.

Product Sourcing FAQ

Q1: How much energy can the KUKA 00-136-893 1FK7103-5AF81-1SH3-Z save compared to a standard induction motor?
A: In typical industrial servo applications, the 1FK7 series permanent magnet synchronous motor achieves Actual operating results depend on the installed system, load profile, and commissioning parameters.

Q2: Is the 00-136-893 compatible with existing KUKA KRC4 robot controllers and SINAMICS drive systems?
A: Yes. The 1FK7103-5AF81-1SH3-Z is designed for compatibility with KUKA KRC4 and KRC5 controller platforms, as well as SINAMICS S120 drive systems via the DRIVE-CLiQ interface. For legacy installations using older drive hardware, please verify the encoder protocol and motor feedback connector type before installation.

Q3: What is the recommended replacement or upgrade path if this servo motor is being substituted for a failed unit?
A: For direct replacement, match the full SKU 1FK7103-5AF81-1SH3-Z to ensure identical shaft dimensions, encoder type, and connector configuration. If upgrading from an older 1FK6 or 1FK7 variant, consult the SINAMICS drive parameter set to confirm motor data records (MDR) are updated accordingly. Our technical team can assist with cross-reference validation prior to shipment.

Q4: What does the warranty terms confirmed during quotation cover, and what testing is performed before shipment?
A: Every KUKA 00-136-893 unit undergoes pre-shipment testing including no-load operational run, encoder signal verification, winding insulation resistance measurement (Megger test), and mechanical vibration check. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with test records available upon request.
