KUKA 00-170-819 RV-410F-236 Industrial Robot Gearbox | KR Series

KUKA 00-170-819 RV-410F-236: Precision Drive Unit for Smart Factory Robot Arms

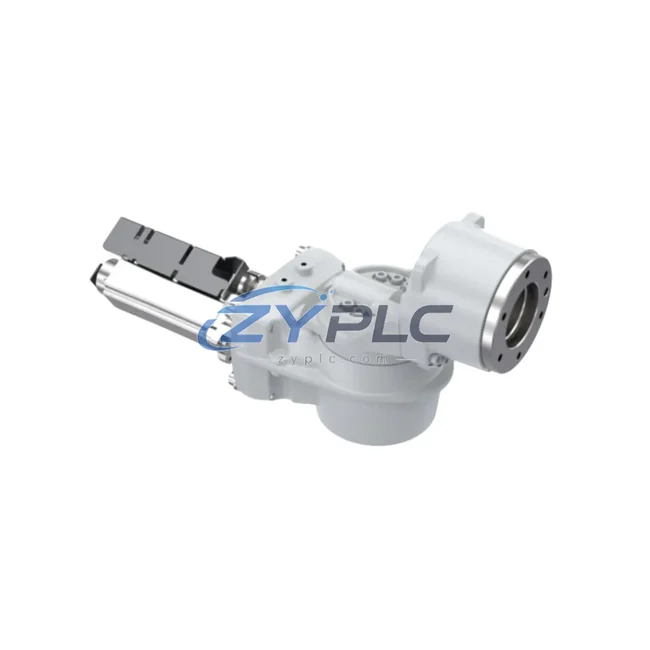

The KUKA 00-170-819 RV-410F-236 is a high-precision industrial robot gearbox engineered for KUKA KR Series robot arms operating in demanding smart factory environments. Cross-referenced under part numbers 00-187-547 and 00-176-109, this RV-type reducer delivers the torque density, positional repeatability, and mechanical rigidity required for continuous-duty automation cycles in automotive assembly, arc welding, material handling, and palletizing applications. As a core drive component within the KUKA KR Series kinematic chain, it directly governs the accuracy of every motion axis it serves — making its specification, sourcing, and replacement a critical factor in overall line uptime and OEE performance.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory cell, the KUKA 00-170-819 RV-410F-236 gearbox sits at the mechanical heart of the robot’s motion chain, but its performance is inseparable from the surrounding automation ecosystem. The KUKA KRC4 or KRC5 robot controller issues real-time motion commands over an EtherCAT fieldbus to the axis servo drives, which translate digital torque and velocity setpoints into physical output through this gearbox. Positional feedback from the KUKA resolver or encoder assembly mounted on the motor shaft is continuously compared against the commanded trajectory, with the closed-loop correction cycle completing in sub-millisecond intervals.

At the cell level, the KRC4/KRC5 controller communicates upstream via PROFINET or EtherNet/IP to the plant’s SIMATIC S7-1500 PLC or equivalent programmable logic controller, which coordinates the robot’s work envelope with peripheral equipment — conveyors, vision systems, grippers, and safety PLCs. The KUKA SmartPAD HMI provides the operator interface for program selection, jog control, and fault acknowledgment, while KUKA.OfficeLite or third-party SCADA platforms such as Wonderware or FactoryTalk aggregate cycle data, alarm histories, and OEE metrics from multiple robot cells simultaneously.

For remote diagnostics and predictive maintenance, the KUKA.Connect cloud platform or an on-premise edge gateway (such as a Moxa MGate or Advantech WISE series) collects servo current signatures, temperature readings, and vibration data from the drive system. Anomalies in the torque ripple pattern — often the earliest indicator of gearbox wear in RV reducers — can be flagged automatically, enabling condition-based maintenance scheduling before unplanned downtime occurs. Integration with MES and ERP systems via OPC-UA ensures that maintenance work orders are generated and tracked within the plant’s broader digital manufacturing framework.

When the RV-410F-236 gearbox requires replacement, the swap procedure interfaces directly with the KUKA axis mastering system — using the KUKA Electronic Mastering Device (EMD) or dial gauge mastering to re-establish the zero-point reference on the affected axis. This mastering data is stored within the KRC controller and synchronized to the robot program, ensuring that post-maintenance positional accuracy meets the original TCP (Tool Center Point) specification without requiring a full cell re-teach.

Solving Data Isolation in Industrial Sites

One of the most common challenges in aging robot installations is the fragmentation of maintenance data across disconnected systems. When a KUKA KR Series robot experiences axis stiffness, increased positioning error, or abnormal servo current draw, the root cause is frequently mechanical — a worn RV-410F-236 gearbox — but the diagnostic signal is buried in servo drive logs that are not automatically surfaced to the SCADA or MES layer. This creates a data isolation problem: the robot controller knows something is wrong, but the plant’s monitoring systems do not.

By deploying an OPC-UA server on the KRC4/KRC5 controller and connecting it to the plant’s SCADA backbone, all axis-level diagnostic data — including servo load ratios, temperature trends, and mastering deviation history — becomes visible in real time to maintenance engineers, regardless of their physical location. Combined with a structured spare parts strategy that keeps critical components like the 00-170-819 gearbox in local inventory or with a verified distributor such as ZYPLC, mean time to repair (MTTR) can be reduced from days to hours.

ZYPLC maintains availability subject to RFQ confirmation of the KUKA 00-170-819 RV-410F-236 and its cross-reference equivalents 00-187-547 and 00-176-109, with each unit subject to pre-shipment functional inspection and covered by a warranty terms confirmed during quotation. Global logistics support ensures that replacement parts reach production sites in Asia, Europe, and the Americas within the shortest possible lead time, minimizing the impact of unplanned robot downtime on production schedules.

Industrial Connectivity FAQ

Q1: Which KUKA robot models are compatible with the RV-410F-236 gearbox (00-170-819)?
The RV-410F-236 is primarily used in KUKA KR Series heavy-payload robots including the KR 210, KR 240, KR 270, and KR 300 R variants, typically on axes 1, 2, or 3. Always verify the axis position and robot serial number against the KUKA spare parts catalog or contact ZYPLC for cross-reference confirmation before ordering.

Q2: Can the gearbox be replaced without re-teaching the entire robot program?
Yes. After mechanical replacement, the affected axis must be re-mastered using the KUKA EMD or dial gauge procedure. Once mastering is complete and the zero-point reference is restored in the KRC controller, the existing robot programs remain valid and no full re-teach is required, provided the TCP calibration is also verified.

Q3: How does gearbox condition affect network communication and SCADA data quality?
A degraded RV gearbox introduces mechanical backlash and increased servo correction effort, which manifests as elevated servo current and position deviation alarms in the KRC controller. These signals propagate to connected SCADA and MES systems via OPC-UA or PROFINET, where they can trigger maintenance alerts. Proactive gearbox replacement based on these data trends prevents false rejects in precision applications such as welding or assembly.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 00-170-819?
