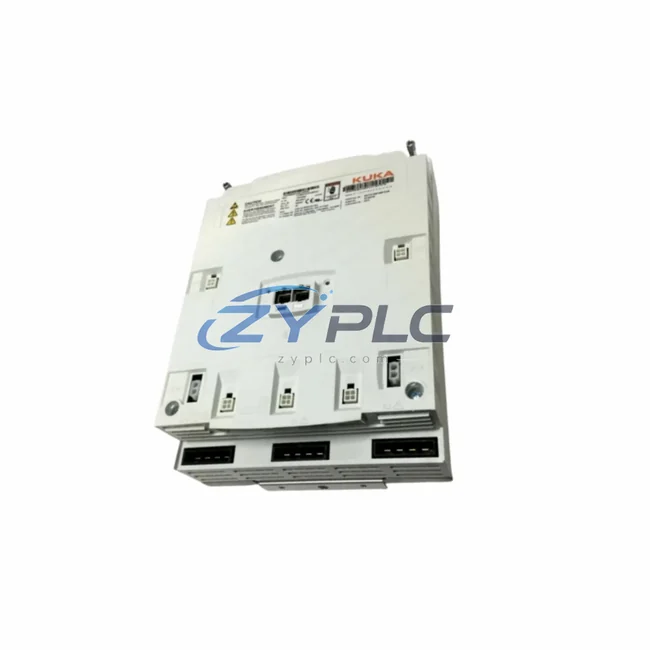

KUKA 00-198-266 KSP 600 3X20 UL Industrial Servo Drive for KR C4 Systems

KUKA 00-198-266 KSP 600 3X20 UL: Industrial Data Link for Smart Factory Connectivity

The KUKA 00-198-266, model designation KSP 600 3X20 UL, is a high-performance EtherCAT servo drive engineered for seamless integration within KUKA KR C4 robot controller architectures. Designed to serve as a critical node in the industrial data chain, this 3-axis, 20A servo power module bridges the gap between motion control hardware and the real-time communication backbone of modern smart factory environments. Whether deployed in automotive body-in-white lines, precision assembly cells, or flexible manufacturing systems, the 00-198-266 delivers deterministic EtherCAT communication, synchronized multi-axis torque control, and robust fault diagnostics — all within a compact, DIN-rail-compatible form factor.

In today’s connected factory, the servo drive is no longer just a power amplifier — it is an active participant in the plant-wide data network. The KUKA KSP 600 3X20 UL fulfills this role by maintaining sub-millisecond cycle synchronization with the KR C4 controller’s real-time kernel, enabling precise coordination across all three axes simultaneously. This level of determinism is essential when the drive must respond to position commands issued by the KR C4 while simultaneously reporting encoder feedback, current draw, temperature status, and fault codes upstream to SCADA and MES platforms.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the 00-198-266’s role requires tracing the full data path from field device to enterprise system. At the lowest layer, servo motors and encoders connected to the KSP 600 3X20 UL generate continuous position, velocity, and torque feedback signals. These analog and digital signals are digitized within the drive and encapsulated into EtherCAT frames, which are then transmitted in real time to the KUKA KR C4 controller — the central motion orchestrator of the robot cell.

Within the KR C4 cabinet, the EtherCAT network may also carry data from additional nodes such as the KUKA KPP 600-20 (KUKA Power Pack), which supplies DC bus power to the servo drives, and the KUKA KSP 600-3X64 for higher-current axis configurations in the same cell. The KR C4’s internal EtherCAT master synchronizes all these drives at the hardware interrupt level, ensuring that multi-robot coordination and synchronized path interpolation remain jitter-free even under full production load.

Moving up the network stack, the KR C4 controller communicates with plant-level systems through an industrial Ethernet gateway — typically a device such as the Anybus X-gateway or a Moxa NPort industrial serial server — which translates EtherCAT or PROFINET data into OPC-UA or Modbus TCP for consumption by SCADA platforms such as Siemens WinCC, Ignition by Inductive Automation, or GE iFIX. HMI panels, such as the KUKA smartPAD or third-party Weintek and Siemens TP series touchscreens, provide operators with real-time visualization of axis status, fault codes, and production counters sourced directly from the 00-198-266’s diagnostic registers.

For remote I/O expansion in adjacent machine zones, Beckhoff EK1100 EtherCAT couplers or Phoenix Contact Axioline F remote I/O modules can be daisy-chained on the same EtherCAT segment, extending the network reach without introducing additional latency. Variable frequency drives (VFDs) from brands such as Siemens SINAMICS or ABB ACS880, installed on conveyor or peripheral axes, can be integrated into the same SCADA view via PROFINET or EtherNet/IP gateways, creating a unified data layer across the entire production cell. Edge computing nodes — such as the Siemens SIMATIC IPC or a Moxa UC-8100 industrial computer — can subscribe to real-time data streams from the KR C4 and the 00-198-266, enabling local analytics, predictive maintenance algorithms, and alarm aggregation before forwarding summarized data to cloud MES or ERP systems.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A factory floor may simultaneously operate legacy RS-232 or RS-485 serial devices alongside modern EtherCAT, PROFINET, and EtherNet/IP nodes — creating data silos that prevent unified monitoring and control. The KUKA 00-198-266 KSP 600 3X20 UL addresses this challenge at the drive level by natively speaking EtherCAT, the fastest and most deterministic fieldbus protocol available for motion control applications.

By standardizing servo communication on EtherCAT, the KR C4 system eliminates the need for intermediate protocol converters between the controller and its drives, reducing network latency, simplifying wiring, and improving fault isolation. When a drive fault occurs — whether an overcurrent event, encoder loss, or thermal overload — the EtherCAT CoE diagnostic layer immediately propagates the fault code to the KR C4, which can trigger a controlled stop, log the event with a timestamp, and push an alarm notification to the SCADA system and operator HMI within a single bus cycle.

For sites expanding from single-robot cells to multi-robot production lines, the EtherCAT ring topology supported by the KR C4 and the 00-198-266 allows new drives and I/O nodes to be added to the network without reconfiguring the entire segment. This plug-and-produce capability dramatically reduces commissioning time and supports the phased rollout strategies common in automotive and electronics manufacturing. Remote diagnostics via OPC-UA also enable engineering teams to monitor drive health, review historical fault logs, and perform parameter adjustments from off-site locations — reducing unplanned downtime and the need for on-site service visits.

Production line transparency is further enhanced by the drive’s ability to report real-time energy consumption data, which can be aggregated at the SCADA level to support ISO 50001 energy management initiatives. Combined with predictive maintenance models running on edge computing platforms, the 00-198-266 becomes a data source that contributes directly to OEE (Overall Equipment Effectiveness) improvement programs across the smart factory.

Industrial Connectivity FAQ

Q1: What is the EtherCAT cycle time of the KUKA 00-198-266 KSP 600 3X20 UL, and does it support real-time SCADA integration?
The KSP 600 3X20 UL operates on the KR C4’s EtherCAT bus with cycle times below 1 millisecond, making it fully compatible with real-time motion control and deterministic data reporting. For SCADA integration, the KR C4 controller exposes drive status data via OPC-UA or PROFINET interfaces, allowing platforms such as Siemens WinCC or Ignition to poll axis data at configurable intervals without impacting servo performance.

Q2: Is the 00-198-266 compatible with third-party EtherCAT masters or only the KUKA KR C4?
The KUKA KSP 600 3X20 UL is specifically designed and firmware-optimized for the KUKA KR C4 EtherCAT master. While it implements the standard EtherCAT protocol (IEC 61158) and CoE (CANopen over EtherCAT) device profile, KUKA’s proprietary drive parameterization and safety functions are tightly coupled to the KR C4 ecosystem. Use with third-party EtherCAT masters is not officially supported and may result in limited functionality.

Q3: How does the network remain stable during high-load multi-axis operations?
EtherCAT’s hardware-level frame processing ensures that network stability is maintained regardless of the number of active axes or the complexity of the motion profile. The KSP 600 3X20 UL processes EtherCAT frames on-the-fly using dedicated ASICs, eliminating software-induced jitter. The KR C4’s real-time kernel further enforces strict cycle synchronization, so even during peak load — such as simultaneous 3-axis coordinated moves at maximum velocity — communication latency remains deterministic and within specification.

Q4: What does the warranty terms confirmed during quotation cover, and is pre-shipment testing performed?
Every KUKA 00-198-266 KSP 600 3X20 UL unit supplied by ZYPLC is functionally tested prior to shipment, verifying EtherCAT communication, axis enable/disable sequences, and fault reporting. The warranty terms confirmed during quotation covers manufacturing defects and verified functional failures under normal operating conditions. Units are shipped with appropriate anti-static and shock-protective packaging to ensure integrity during international logistics. For warranty claims or technical support, contact our team directly.
