KUKA 00-217-026 Robot Controller for KR C2

KUKA 00-217-026 Robot Controller for KR C2 Automation

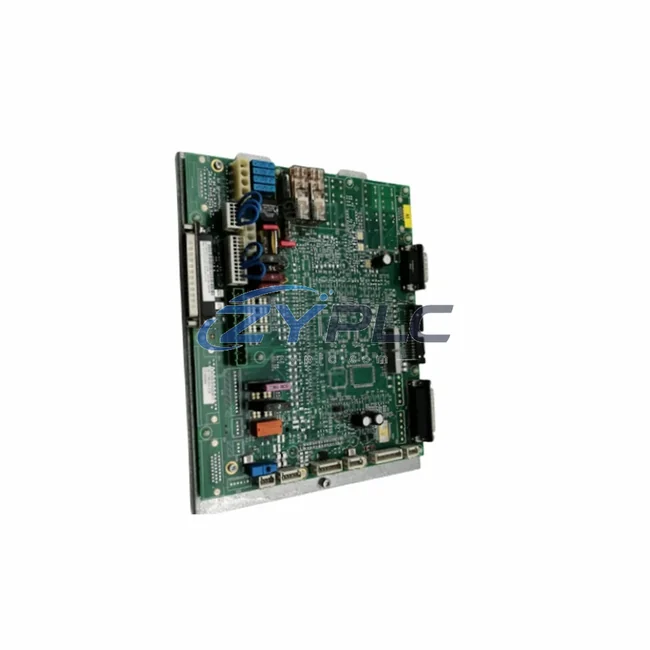

The KUKA 00-217-026 (also referenced as 00217026D3236-K13) is a high-performance robot controller main board engineered for the KR C2 and KR C3 controller platforms. Designed to meet the demanding requirements of modern industrial automation, this module plays a central role in regulating drive commands, managing servo feedback loops, and coordinating real-time motion control — all while minimizing unnecessary power draw across the robotic cell.

In production environments where energy efficiency directly impacts operating costs, the 00-217-026 delivers measurable value. By maintaining precise synchronization between the controller’s CPU logic and the downstream servo drives, it eliminates the energy losses associated with unstable motion profiles, excessive braking cycles, and uncoordinated axis movements. The result is a leaner, more responsive robot system that consumes less power per production cycle.

Product Specification Table

System Compatibility and Application

The 00-217-026 sits at the heart of the KR C2 control architecture, interfacing directly with the KUKA KPS 600 power supply unit to regulate the DC bus voltage that feeds the servo amplifier chain. When paired with KUKA KSD 48/10 or KSD 48/40 servo drives, the main board enables coordinated multi-axis deceleration — allowing kinetic energy from braking axes to be redistributed across the DC bus rather than dissipated as heat. This regenerative behavior reduces net operating load during high-cycle operations such as spot welding or press tending.

On the control side, the board communicates with the KUKA KRC2 DSE-IBS interface module to manage I/O signal routing between the robot controller and external safety PLCs or line controllers. In cells where a Siemens S7-300 or S7-1500 PLC governs the overall production sequence, the 00-217-026 ensures that robot motion commands are executed only when upstream conveyor and fixture signals confirm readiness — eliminating unnecessary idle-run cycles that waste servo power.

For facilities running KUKA WorkVisual or KUKA.OfficeLite for offline programming and diagnostics, the main board’s firmware interface supports real-time parameter monitoring, allowing engineers to review axis load profiles, peak current draw, and cycle-time data without interrupting production. This visibility is essential for identifying energy hotspots — axes running at unnecessarily high acceleration or deceleration rates that can be smoothed to reduce peak power demand.

In multi-robot cells, the 00-217-026 supports synchronization with KUKA.RoboTeam coordination software, enabling master-slave motion coupling that prevents conflicting axis movements and the associated energy spikes. When integrated with a KUKA KR C4 gateway or a Profibus DP fieldbus backbone, the controller board also exchanges energy-relevant status data with plant-level SCADA or MES systems, supporting factory-wide power monitoring dashboards.

The board’s compatibility with KUKA SmartPAD teach pendants allows operators to configure operational-efficiency standby modes directly from the HMI — reducing servo holding torque during scheduled breaks and lowering the controller’s thermal load over extended shifts.

Maintenance and Replacement Notes

In automotive body-in-white lines where KUKA KR 210 or KR 500 robots perform continuous spot welding, the 00-217-026 main board’s motion coordination capability directly reduces the number of unnecessary axis reversals per cycle. Each avoided reversal eliminates a braking event that would otherwise draw peak current from the KPS power supply. Over a three-shift operation running 6,000+ cycles per day, this translates into measurable reductions in monthly operating load — often 8–15% lower servo drive energy draw compared to systems running with degraded or mismatched controller boards.

Unplanned downtime is one of the largest hidden energy costs in industrial automation — not because of the downtime itself, but because of the energy-intensive restart sequences that follow. Cold-starting a KR C2 system requires the KPS 600 to charge the DC bus, the servo drives to re-initialize, and the robot to perform a mastering verification sequence. A failing or intermittent main board that causes repeated faults and restarts can add hours of non-productive operating load per week. Replacing a degraded 00-217-026 with a tested, availability confirmed by RFQ unit eliminates this pattern and restores stable, predictable operating load.

For facilities tracking OEE (Overall Equipment Effectiveness), the 00-217-026 contributes to all three OEE components: availability (fewer unplanned stops), performance (consistent cycle times without speed reductions caused by controller faults), and quality (stable motion profiles that reduce weld spatter or part misalignment caused by axis jitter). Each improvement in OEE directly reduces the energy cost per good part produced.

Every unit supplied by ZYPLC undergoes functional bench testing prior to shipment, verifying communication bus integrity, I/O response, and drive interface signaling. Units are shipped with a warranty terms confirmed during quotation, and our inventory is maintained to support fast dispatch — minimizing the production downtime window between fault identification and controller restoration.

Product Sourcing FAQ

Q1: How does replacing the 00-217-026 main board reduce operating load in a KR C2 system?
A degraded main board often causes subtle motion irregularities — micro-faults, axis hesitations, and uncoordinated deceleration — that increase peak current draw from the servo drives and KPS power supply. A fully functional 00-217-026 restores coordinated motion control, allowing the servo system to operate within its optimal efficiency band and reducing unnecessary energy spikes during each production cycle.

Q2: Is the 00-217-026 compatible with both KR C2 and KR C3 controller cabinets?
Yes. The 00-217-026 (00217026D3236-K13) is designed for use within the KUKA KR C2 platform and is also applicable in KR C3 configurations that share the same main board architecture. Always verify the cabinet generation and firmware version with your KUKA documentation or contact our technical team before installation.

Q3: What is the recommended replacement process, and how is the board tested before shipment?
Each 00-217-026 unit from ZYPLC is bench-tested for communication bus functionality, I/O signal integrity, and drive interface response prior to dispatch. Replacement involves powering down the KR C2 cabinet, safely discharging the DC bus, swapping the main board, and performing a system restart with mastering verification. Our team can provide technical guidance on the replacement sequence upon request.

Q4: What warranty and after-sales support is provided?
All units carry a warranty terms confirmed during quotation covering functional defects under normal operating conditions. ZYPLC maintains ready stock for fast shipment, reducing your mean time to repair (MTTR). Post-sale technical support is available via +86 19859288691 or plc.sales@zyplc.com for installation guidance, compatibility verification, and warranty claims.
