KUKA 00-228-934 Industrial Robot Teach Pendant for KRC2 Systems

KUKA 00-228-934 SmartPAD: Industrial Data Link for KRC2 Smart Factory Systems

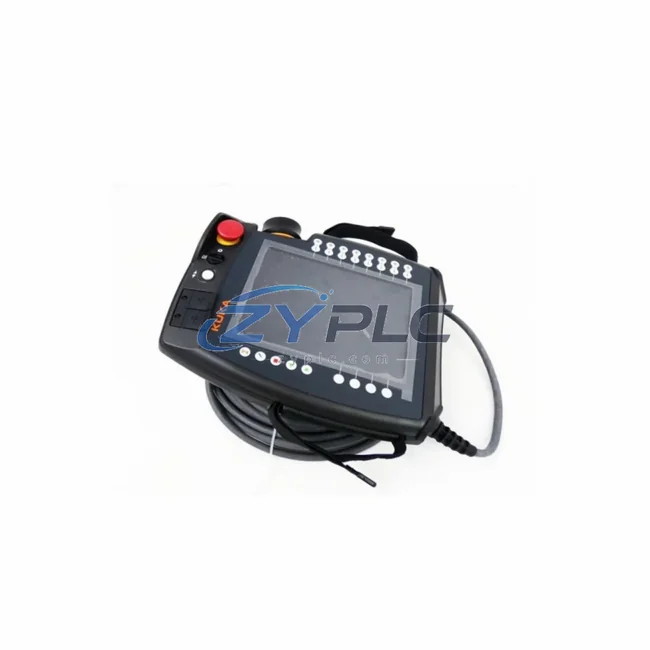

The KUKA 00-228-934 SmartPAD is a high-performance industrial robot teach pendant and human-machine interface (HMI) engineered for seamless integration within KRC2 and KRC4EMD robot controller architectures. As the primary operator interface and network communication node between the robot controller and the broader automation ecosystem, the SmartPAD 00-228-934 plays a critical role in enabling real-time data exchange, remote diagnostics, and system-level transparency across modern smart factory environments.

In today’s connected manufacturing landscape, the ability to bridge field-level devices with supervisory control systems is no longer optional — it is foundational. The KUKA 00-228-934 SmartPAD delivers exactly this capability, acting as the live communication terminal through which robot motion data, I/O status, alarm signals, and process parameters flow between the KRC2 controller and upstream SCADA, MES, and ERP platforms.

Compatibility & Integration Notes

Connected Automation Data Flow

The KUKA 00-228-934 SmartPAD sits at the intersection of field-level robotics and plant-wide data infrastructure. In a typical smart factory deployment, the data flow originates at the robot’s internal sensors and servo drives — including KUKA KSD 48/10 servo drive modules and KPP 600-20 power packs — where motion feedback, torque values, and axis position data are continuously generated. This raw signal data is processed by the KRC2 robot controller, which acts as the central computation and communication hub.

From the KRC2 controller, the SmartPAD 00-228-934 receives and displays live operational data via the KUKA Line Interface (KLI), enabling operators to monitor robot states, configure motion programs, and respond to fault conditions in real time. Simultaneously, the KRC2 controller communicates upstream via PROFINET or EtherNet/IP to a PLC layer — commonly a Siemens S7-1500 or Allen-Bradley ControlLogix — which coordinates multi-robot cell logic and integrates with remote I/O modules such as the Siemens ET 200SP or Phoenix Contact Axioline F series.

At the network transport layer, industrial managed switches — such as the Hirschmann RS20 or MOXA EDS-510E — ensure deterministic packet delivery across the factory Ethernet backbone, maintaining sub-millisecond latency for time-critical robot coordination signals. These switches segment the robot cell network from the broader plant LAN, protecting real-time communication from interference.

The data stream continues upward to SCADA platforms such as Ignition by Inductive Automation or Siemens WinCC OA, where robot cycle times, fault histories, and production KPIs are aggregated and visualized on plant-floor dashboards. The SmartPAD’s alarm and diagnostic outputs feed directly into these SCADA alarm management modules, enabling maintenance teams to receive push notifications and initiate remote diagnostics without physical access to the robot cell.

For facilities operating OPC-UA architectures, the KRC2 system — interfaced through the SmartPAD 00-228-934 — can be connected to edge gateways such as the Softing edgeConnector Robotics or Kepware KEPServerEX, translating proprietary KUKA protocol data into standardized OPC-UA nodes consumable by MES and ERP systems. This integration eliminates data silos between the robot layer and business intelligence platforms, enabling end-to-end production traceability.

Variable frequency drives (VFDs) and servo amplifiers on peripheral conveyor and positioning systems — such as the SEW-Eurodrive MOVITRAC or Siemens SINAMICS G120 — also participate in this data ecosystem, with their status signals routed through the same PROFINET network segment monitored by the KRC2 controller and visible through the SmartPAD interface during coordinated multi-axis operations.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A facility may operate KUKA KRC2 robots alongside newer KRC4 or KRC5 platforms, each with distinct interface requirements, creating protocol islands that prevent unified monitoring. The KUKA 00-228-934 SmartPAD addresses this directly by supporting the KUKA Line Interface alongside standard industrial Ethernet protocols, allowing it to serve as a protocol bridge between legacy KRC2 infrastructure and modern PROFINET or EtherNet/IP networks.

Data isolation — where robot cell data never reaches the SCADA or MES layer — is a common source of production inefficiency. Without visibility into robot uptime, fault frequency, and cycle time variance, maintenance teams operate reactively rather than predictively. The SmartPAD 00-228-934 resolves this by providing a structured data output path from the KRC2 controller to supervisory systems, enabling condition-based maintenance scheduling and reducing unplanned downtime.

Remote monitoring is another critical capability enabled by this interface. In multi-site manufacturing operations, the ability to remotely access robot status, review fault logs, and push program updates without dispatching on-site engineers represents significant operational savings. The SmartPAD’s network-connected architecture supports remote diagnostic sessions via the KRC2’s Ethernet interface, compatible with KUKA Remote Service and third-party VPN-based remote access solutions.

Production line transparency — the ability to see real-time robot performance data on plant-floor dashboards — is increasingly mandated by lean manufacturing and Industry 4.0 initiatives. The 00-228-934 SmartPAD, as the primary HMI for the KRC2 system, generates the structured data streams that feed these dashboards, transforming isolated robot cells into visible, measurable nodes within the connected factory.

System scalability is also a key consideration. As production demands grow, additional robot cells equipped with KUKA KRC2 or KRC4EMD controllers and SmartPAD interfaces can be added to the existing network architecture without redesigning the communication infrastructure, provided the underlying Ethernet backbone and SCADA configuration are appropriately scaled.

Industrial Connectivity FAQ

Q1: What communication protocols does the KUKA 00-228-934 SmartPAD support for SCADA integration?
The SmartPAD 00-228-934 interfaces with the KRC2 controller, which supports PROFINET, EtherNet/IP, and the KUKA Line Interface (KLI). For SCADA integration, OPC-UA connectivity can be achieved via edge gateway middleware such as Kepware KEPServerEX or Softing edgeConnector, enabling data consumption by platforms like Ignition, WinCC, or FactoryTalk.

Q2: How does the KUKA 00-228-934 perform in terms of network latency for real-time robot control?
The SmartPAD communicates with the KRC2 controller over a dedicated internal bus with deterministic timing. For plant-network integration, PROFINET IRT (Isochronous Real-Time) configurations can achieve cycle times below 1ms, ensuring that robot coordination signals are not degraded by network congestion on the broader factory Ethernet segment.

Q3: Is the KUKA 00-228-934 compatible with both KRC2 and KRC4EMD controllers?
Yes. The 00-228-934 is the primary SmartPAD variant for KRC2 systems, while the 00-228-936 variant is designed for KRC4EMD controllers. Both share the same operator interface design and core functionality, with firmware and connector differences to match their respective controller platforms. The 00-168-334 is an associated accessory part within the same SmartPAD ecosystem.

Q4: What quality assurance and warranty coverage applies to this unit?
