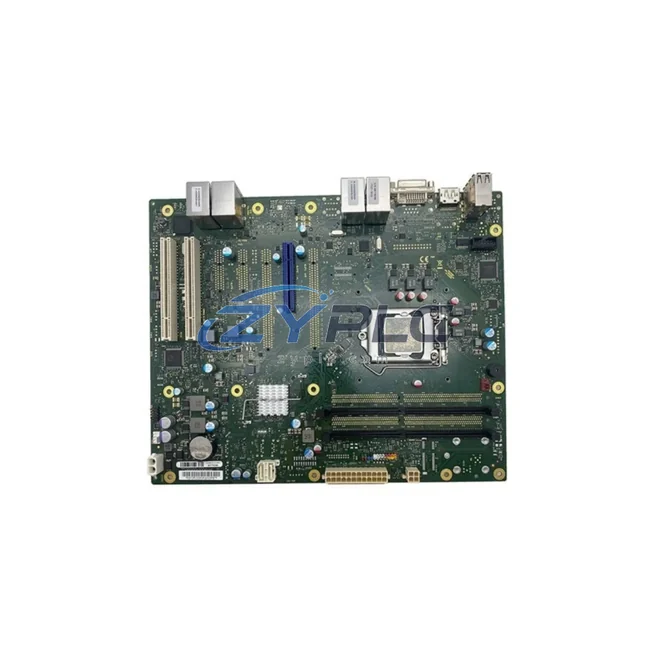

KUKA 00-271-601 Mainboard for C4 Robot

KUKA 00-271-601 Mainboard for C4 Robot: Compatibility and Replacement Notes

The KUKA 00-271-601 is a core mainboard module engineered specifically for the KUKA C4 robot controller platform. Within a layered industrial automation architecture, this mainboard serves as the central computational and communication backbone of the C4 cabinet, orchestrating signal flow between the control layer, I/O layer, network layer, power layer, human-machine interface layer, and execution layer. Its role is not simply that of a standalone circuit board — it is the architectural anchor that determines system consistency, scalability, redundancy capability, and long-term maintenance efficiency across the entire robot cell.

In modern manufacturing environments, robot controllers are no longer isolated units. They are integrated nodes within a broader automation ecosystem. The 00-271-601 mainboard enables the C4 controller to participate fully in this ecosystem, supporting coordinated communication with upstream PLC systems, downstream servo drives, and peer-level safety controllers. Engineers deploying KUKA robots in automotive body-in-white lines, arc welding cells, palletizing stations, or precision assembly systems rely on the integrity of this mainboard to maintain deterministic cycle times and fault-tolerant operation.

Product Specification Table

System Compatibility Notes

The 00-271-601 mainboard does not operate in isolation. Its value is realized through its integration with the full suite of C4 platform components. In a typical C4 robot controller cabinet, the mainboard interfaces directly with the KUKA KPP (KUKA Power Pack) servo power supply module, which provides the DC bus voltage for all axis drives. The KSP (KUKA Servo Pack) drive modules for each robot axis receive motion commands routed through the mainboard’s internal bus, ensuring synchronized multi-axis trajectory execution.

On the I/O layer, the mainboard coordinates with KUKA ESC (Electronic Safety Controller) safety boards and digital I/O expansion modules to manage safety-rated inputs such as emergency stop circuits, safety door interlocks, and enabling device signals. These safety signals are processed in compliance with PLd/Cat.3 or PLe/Cat.4 requirements depending on the application’s risk assessment.

For network integration, the 00-271-601 supports fieldbus communication that allows the C4 controller to exchange data with upstream Siemens S7-300/S7-400 or S7-1500 PLCs via PROFINET or PROFIBUS-DP, enabling the robot to receive production orders, report status, and synchronize with conveyor systems or vision-guided positioning equipment. In facilities using EtherCAT-based motion networks, the mainboard’s communication stack allows tight coupling with third-party I/O terminals and distributed servo systems.

The KUKA smartPAD teach pendant connects to the C4 system through the mainboard’s HMI interface layer, providing operators with real-time program editing, jog control, and diagnostic visualization. The mainboard manages the USB and Ethernet connections to the smartPAD, ensuring low-latency response during manual operation and program verification. In cells where a KUKA KR C4 compact or KR C4 smallsize variant is deployed, the same 00-271-601 mainboard architecture principles apply, maintaining platform consistency across robot size classes.

For redundancy-critical applications, the mainboard supports integration with KUKA.SafeOperation and KUKA.SafeRangeMonitoring software packages, which rely on the mainboard’s processing capability to enforce workspace monitoring and speed limitation without requiring external safety PLCs. This reduces cabinet complexity and improves system mean time between failures (MTBF).

Industrial Application Notes

Automotive Manufacturing: In body-in-white welding lines, the 00-271-601 mainboard enables the C4 controller to synchronize with transfer systems, weld timers, and vision inspection stations. The mainboard’s deterministic communication ensures that robot motion is tightly coupled with conveyor indexing signals, reducing cycle time variance and improving weld quality consistency across high-volume production shifts.

Electrical and Electronics Assembly: In precision assembly cells for consumer electronics or EV battery modules, the mainboard’s stable I/O bus management supports high-speed pick-and-place operations with sub-millimeter repeatability. Integration with force-torque sensors and vision systems is managed through the mainboard’s communication interfaces, enabling adaptive assembly strategies.

Palletizing and Packaging Lines: The C4 controller equipped with the 00-271-601 mainboard is widely deployed in end-of-line palletizing systems for food, beverage, and consumer goods industries. The mainboard’s ability to handle multiple I/O signals simultaneously allows coordination with conveyor sensors, barcode readers, and downstream stretch-wrap systems without additional gateway hardware.

Process Industry and Chemical Plants: In environments requiring ATEX-compliant robot deployments or remote-controlled hazardous material handling, the C4 mainboard’s network communication capability allows operators to monitor and adjust robot programs from safe control rooms via PROFINET-connected SCADA systems, reducing personnel exposure to hazardous zones.

Metal Fabrication and Welding: Arc welding and laser cutting applications demand consistent power delivery and motion synchronization. The 00-271-601 mainboard coordinates with welding power source interfaces and seam tracking systems, maintaining weld parameter consistency across long production runs and supporting rapid recipe changeover for multi-product fabrication cells.

Product Compatibility FAQ

Q1: Is the KUKA 00-271-601 mainboard compatible with all C4 controller variants, and can it be used as a direct replacement for a failed unit?
The 00-271-601 mainboard is designed for the KUKA C4 controller platform and is compatible with KR C4, KR C4 compact, and KR C4 smallsize variants that share the same backplane architecture. As a replacement unit, it should be installed by a qualified KUKA-certified engineer who can perform the necessary software configuration and axis calibration after hardware exchange. All units supplied by ZYPLC are tested prior to shipment and covered by a, providing confidence in replacement reliability.

Q2: How does the 00-271-601 mainboard support integration with existing PLC and DCS infrastructure in a plant-wide automation architecture?
The mainboard supports system integration with plant-level control systems through standard industrial fieldbus protocols including PROFINET, EtherCAT, and DeviceNet. This allows the C4 controller to function as a coordinated node within a broader automation hierarchy managed by Siemens, Rockwell, or Schneider PLCs. Configuration is performed through the KUKA WorkVisual engineering environment, which allows fieldbus topology definition, I/O mapping, and communication parameter assignment without requiring custom hardware modifications.
