In a fully integrated industrial control system, every component must perform its role with precision and reliability. The KUKA EVS9328-KHV531 (Part No. 00-103-118) servo drive module is engineered to serve as a high-performance axis drive within KUKA KRC-based robotic and automation architectures. Rather than functioning as a standalone unit, this servo drive is designed to operate in close coordination with the surrounding control layers — from the central processing unit and power supply modules to the I/O interface boards, communication gateways, and human-machine interface terminals. Understanding its role within the full system hierarchy is essential for engineers responsible for system integration, commissioning, and long-term maintenance.

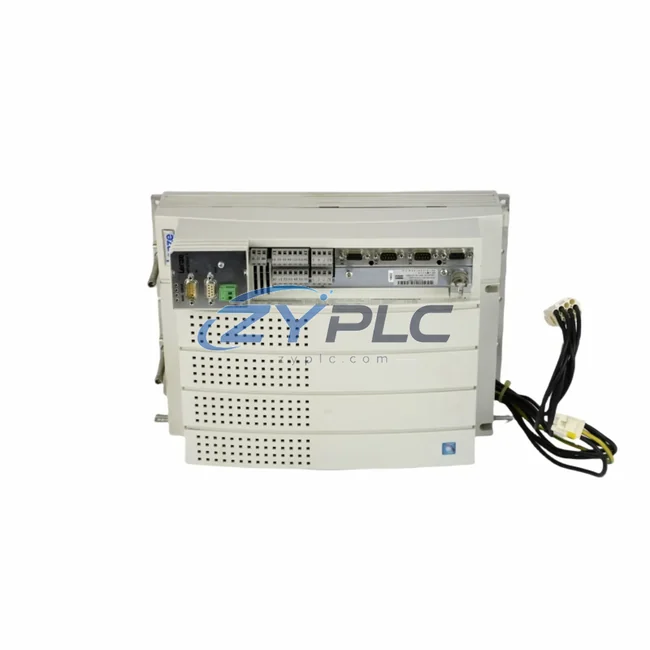

The EVS9328-KHV531 belongs to KUKA’s servo inverter family, specifically developed for use in KRC (KUKA Robot Controller) environments. It manages the precise torque, velocity, and position control of servo axes, translating high-level motion commands from the KRC controller into accurate electrical signals delivered to the servo motors. This system integration between the drive and the controller is what enables the smooth, repeatable motion profiles demanded by modern manufacturing, assembly, and material handling applications.

Product Specification Table

System Compatibility Notes

The EVS9328-KHV531 does not operate in isolation. Its performance is directly tied to the quality and compatibility of the surrounding system architecture. In a standard KRC4 or KRC2 robotic controller cabinet, this servo drive works in tandem with several critical subsystems:

At the controller layer, the KRC4 Main Computer (PC unit) or KRC2 controller board generates the motion trajectory and transmits axis commands through the internal KRC bus. The EVS9328-KHV531 receives these commands and executes them with high-speed current regulation loops. The CCU (Cabinet Control Unit) board manages the overall cabinet logic, safety interlocks, and communication arbitration between the controller and the drive modules.

At the power supply layer, the KPP 600-20 (KUKA Power Pack) provides the DC bus voltage that feeds the EVS9328-KHV531 and other axis drives within the same cabinet. Proper sizing of the KPP module relative to the total drive load is essential for system stability. In multi-axis configurations, the KSP 600-3×40 (KUKA Servo Pack) may be used alongside the EVS9328 to distribute power across additional axes, enabling scalable motion architectures without requiring separate power supplies for each drive.

At the I/O and safety layer, the SIB (Safety Interface Board) and RDC (Resolver-to-Digital Converter) module work in conjunction with the servo drive to provide encoder feedback, safe torque-off (STO) signals, and emergency stop integration. The RDC module translates resolver signals from the servo motors into digital position data consumed by the EVS9328-KHV531 for closed-loop control. Without accurate RDC feedback, the drive cannot maintain positional accuracy or execute safe deceleration profiles.

At the human-machine interface layer, the KCP4 (KUKA Control Panel 4) teach pendant connects to the KRC4 controller and provides the operator interface for programming, jogging, and monitoring axis status. Engineers use the KCP4 to verify drive status codes, adjust motion parameters, and diagnose fault conditions reported by the EVS9328-KHV531 during commissioning or maintenance cycles.

For applications requiring network integration, the KRC controller supports PROFINET, EtherNet/IP, and DeviceNet communication gateways, allowing the servo drive’s operational data — including current load, temperature, and fault codes — to be transmitted to supervisory SCADA systems or DCS platforms. This enables centralized monitoring of drive health across multi-robot production lines.

In redundant or high-availability architectures, maintaining a spare EVS9328-KHV531 unit alongside compatible EVS9321 and EVS9324 series drives ensures rapid swap-out capability, minimizing unplanned downtime. The modular design of the KRC cabinet allows trained technicians to replace the drive module without disturbing adjacent axis channels, provided proper lockout/tagout procedures are followed.

Industrial Application Notes

The EVS9328-KHV531 servo drive finds application across a broad range of industrial sectors where precise motion control and system reliability are non-negotiable requirements.

In automotive manufacturing, KUKA robotic systems equipped with this drive module perform spot welding, body assembly, and paint application tasks on high-speed production lines. The drive’s ability to maintain tight velocity and torque profiles ensures consistent weld quality and repeatable positioning across thousands of production cycles per shift.

In electronics and semiconductor assembly, the EVS9328-KHV531 supports high-precision pick-and-place operations where positional accuracy at the sub-millimeter level is required. The drive’s low-latency response to KRC controller commands enables the fast, smooth motion profiles needed for delicate component handling.

In petrochemical and process industries, KUKA systems with this servo drive are deployed in hazardous material handling, valve actuation, and inspection tasks where human access is restricted. The drive’s robust design and compatibility with safety-rated STO functions make it suitable for SIL 2-compliant automation architectures.

In metal fabrication and machine tool environments, the EVS9328-KHV531 drives the axes of robotic welding cells, laser cutting systems, and CNC-integrated material handling units. Its ability to handle dynamic load changes — common in cutting and forming operations — without losing positional accuracy is a key advantage in these applications.

In logistics and warehousing, automated guided vehicle (AGV) systems and robotic palletizing lines rely on servo drives of this class to deliver the precise, repeatable motion needed for high-throughput order fulfillment operations.

Product Compatibility FAQ

Q1: Is the EVS9328-KHV531 compatible with both KRC2 and KRC4 controller generations?
The EVS9328-KHV531 is primarily designed for use within KUKA KRC-series controller cabinets. Compatibility depends on the specific cabinet configuration, firmware version, and power supply architecture. Engineers should verify the controller generation and cabinet wiring diagram before installation. ZYPLC’s technical team can assist with compatibility verification based on your existing system documentation.

Q2: Can this servo drive be installed without replacing the entire KRC cabinet?
Yes. The modular architecture of KUKA KRC cabinets allows individual drive modules to be replaced without a full cabinet overhaul. The EVS9328-KHV531 is designed for in-cabinet installation, and replacement typically requires disconnecting the DC bus connections, motor power cables, and resolver/encoder feedback connectors. Proper lockout/tagout procedures and re-commissioning of the axis parameters via the KCP4 teach pendant are required after installation. The warranty terms confirmed during quotation covers the replacement unit from the date of delivery.
