KUKA IRC4 00-171-602 Control Cabinet Module

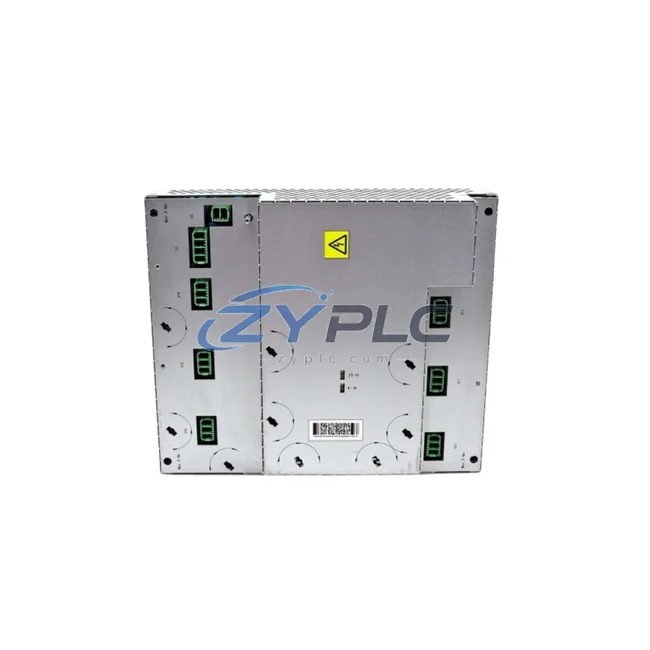

KUKA IRC4 00-171-602 Control Cabinet Module for IRC4 Automation

The KUKA 00-171-602 is a high-efficiency control cabinet module engineered specifically for the KUKA IRC4 robot controller platform. Designed to meet the demanding energy and performance requirements of modern industrial automation environments, this module plays a central role in reducing unnecessary power draw, stabilizing drive output, and enabling smarter maintenance planning across robotic production lines. Whether deployed in automotive body-in-white welding cells, precision assembly stations, or high-throughput material handling systems, the 00-171-602 delivers consistent, measurable improvements in equipment utilization and energy efficiency.

In today’s manufacturing landscape, energy cost is one of the most controllable variables in total cost of ownership. The KUKA IRC4 00-171-602 addresses this directly by providing stable, regulated power distribution within the IRC4 cabinet architecture — minimizing reactive power losses, reducing thermal stress on downstream components, and ensuring that servo drives and motor control circuits operate within their optimal efficiency bands at all times.

Product Specification Table

System Compatibility and Application

The KUKA IRC4 00-171-602 module operates as a critical node within the IRC4’s internal power and control architecture. To understand its maintenance planning value, it is important to consider the broader system in which it functions.

At the drive level, the IRC4 platform relies on KUKA KPP (KUKA Power Pack) servo drive modules to convert DC bus power into precisely controlled AC output for each robot axis. The 00-171-602 supports stable upstream power conditioning that directly benefits KPP drive efficiency — reducing input ripple and ensuring that the KPP modules operate with minimal switching losses. Alongside the KPP, the KUKA KSP (KUKA Servo Pack) modules handle individual axis current regulation; a well-conditioned power supply from the 00-171-602 allows KSP units to maintain tighter current control loops, which translates to smoother motion profiles and lower unplanned downtime during acceleration and deceleration phases.

On the control side, the KUKA KRC4 controller relies on its internal module ecosystem — including the KUKA CCU (Cabinet Control Unit) and KUKA RDC (Resolver Digital Converter) — to coordinate motion commands, safety signals, and feedback loops. The 00-171-602 contributes to the electrical stability that these control modules depend on, particularly during high-cycle operations where voltage transients could otherwise cause spurious faults or unnecessary safety stops that interrupt production flow and waste energy through unplanned restarts.

For condition monitoring and data acquisition, the IRC4 platform can be integrated with external power monitoring modules and KUKA.EthernetKRL communication interfaces, enabling real-time energy consumption data to be fed into MES or SCADA systems. When the 00-171-602 is functioning correctly, energy consumption profiles remain predictable and within baseline — making anomaly detection more reliable and predictive maintenance scheduling more accurate.

In multi-robot cells, the KUKA SmartPAD teach pendant and KUKA WorkVisual engineering software provide operators and engineers with visibility into robot status and drive health. A stable cabinet module like the 00-171-602 reduces the frequency of drive fault codes that would otherwise require manual intervention via the SmartPAD, keeping production running and energy consumption aligned with planned cycle targets.

For facilities running mixed automation environments, the IRC4’s compatibility with PROFINET and EtherNet/IP fieldbus protocols means that energy data from the robot cell can be integrated with broader plant-level maintenance planning systems — enabling cross-system optimization that goes beyond individual robot performance.

Maintenance and Replacement Notes

In high-volume production environments, the cumulative energy impact of a single underperforming cabinet module can be significant. A faulty or degraded control cabinet module in an IRC4 system can cause irregular power delivery to servo drives, leading to increased motor heating, higher current draw, and accelerated wear on mechanical components — all of which increase both energy consumption and maintenance costs.

By replacing a worn or failed module with a genuine KUKA 00-171-602, production engineers can restore the IRC4 system to its designed operating efficiency. This means servo drives return to their rated efficiency curves, motor control becomes more precise, and the robot’s motion profiles — including acceleration ramps, hold torques, and deceleration recovery — are executed with minimal unplanned downtime.

In automotive welding lines, for example, where KUKA robots may operate at 90–100% duty cycles for extended shifts, even a 2–3% improvement in drive efficiency per robot can translate to meaningful reductions in monthly electricity costs across a multi-robot cell. In electronics assembly, where cycle times are short and robot utilization is high, stable power delivery from the cabinet module ensures that the IRC4 controller does not introduce unnecessary delays or fault recovery cycles that break production rhythm and inflate energy-per-unit metrics.

Beyond energy, the 00-171-602 also contributes to predictive maintenance strategies. When cabinet modules are maintained in good condition, the IRC4’s internal diagnostics produce cleaner data — making it easier for maintenance teams to identify genuine wear trends in servo drives, encoders, and mechanical components before they cause unplanned downtime. Reduced downtime means fewer cold-start energy spikes and more consistent, efficient production throughput.

All units supplied by ZYPLC undergo 100% outgoing functional testing prior to shipment, ensuring that the 00-171-602 you receive is verified to perform within KUKA’s original specifications. Combined with a warranty terms confirmed during quotation, this gives procurement and maintenance teams confidence in both the quality and the long-term energy performance of the replacement module.

Product Sourcing FAQ

Q1: How does the KUKA IRC4 00-171-602 contribute to operational stability in a robot cell?
The 00-171-602 stabilizes power distribution within the IRC4 cabinet, reducing reactive power losses and ensuring that KPP and KSP servo drive modules operate within their optimal efficiency ranges. This minimizes unnecessary current draw, reduces motor heating, and supports more precise motion control — all of which contribute to lower energy consumption per production cycle.

Q2: Is the 00-171-602 compatible with all IRC4 variants?
The 00-171-602 is designed for the KUKA IRC4 platform, which includes the standard IRC4, IRC4 Compact, and IRC4 Panel Mounted Controller variants. For specific compatibility confirmation with your robot model and software version, please contact our technical team before ordering.

Q3: Can I replace the 00-171-602 myself, or does it require a KUKA-certified technician?
Cabinet module replacement on IRC4 systems should be performed by qualified automation engineers familiar with KUKA IRC4 hardware. Proper ESD precautions, cabinet isolation procedures, and post-installation functional verification are required. ZYPLC can provide technical guidance and documentation to support your maintenance team.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process?
