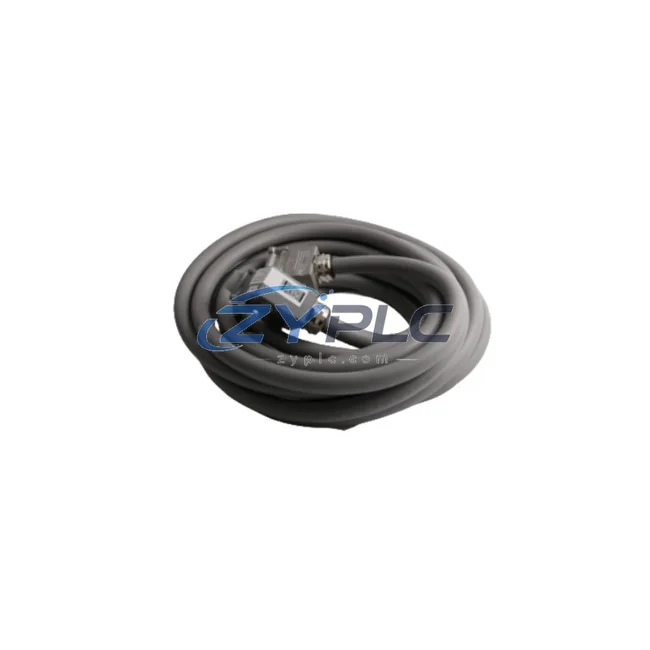

KUKA X20 00-182-465 Robot Cable KR C

KUKA X20 00-182-465 Robot Cable KR C: Precision Power for Optimized Automation

The KUKA X20 00-182-465 is a high-efficiency primary power cable engineered specifically for the KUKA KR C series robot controllers. In modern industrial environments where equipment uptime and replacement lead time directly affect production continuity, the quality of power delivery infrastructure is no longer a secondary concern — it is a core variable in production efficiency. This cable is designed to minimize resistive losses, maintain stable voltage delivery under dynamic load conditions, and support the precise motor control demands of KUKA’s articulated robot arms across a wide range of manufacturing applications.

Whether deployed in automotive body-in-white welding cells, electronics assembly lines, or heavy-payload palletizing stations, the X20 00-182-465 ensures that power reaches the servo drives and motor windings with minimal degradation. Stable power delivery directly reduces thermal stress on motor windings, extends insulation life, and contributes to lower overall energy consumption per production cycle.

Product Specification Table

System Compatibility and Application

The KUKA X20 00-182-465 does not operate in isolation — it is a critical link in a broader industrial automation system. In a typical KR C4-based robot cell, the power chain begins at the cabinet-level input with components such as the KUKA KPS-600 power supply unit, which conditions incoming three-phase power and feeds the servo amplifier bus. The X20 00-182-465 carries this conditioned power from the controller cabinet to the robot’s axis motors, where KUKA KSD servo drives regulate torque and speed with high precision.

Alongside the power cable, the KUKA RDC (Resolver Digital Converter) board processes encoder feedback from each motor axis, enabling the controller to make real-time corrections to motor current and velocity. This closed-loop feedback system — dependent on clean, stable power — is what allows KUKA robots to maintain micron-level repeatability while consuming only the energy required for each specific motion profile.

In energy-optimized cells, the KR C4 controller’s KUKA.EnergyMonitoring software package can be paired with external power monitoring hardware such as the Siemens SENTRON PAC3200 power analyzer to log real-time energy consumption per robot program. When the X20 00-182-465 maintains low-resistance power delivery, the data captured by these monitoring systems accurately reflects true motor consumption rather than cable-induced losses — enabling engineers to make data-driven decisions about cycle time and energy trade-offs.

For facilities running mixed automation environments, the KR C4 controller communicates over PROFINET or EtherNet/IP with upstream PLCs such as the Siemens S7-1500 or Allen-Bradley ControlLogix, coordinating robot motion with conveyor drives, vision systems, and safety PLCs. The KUKA SmartPAD teach pendant provides operators with direct access to energy-relevant parameters including motion speed scaling and regenerative braking settings. Peripheral I/O expansion through KUKA KRC4 I/O modules allows integration of energy metering signals, enabling the controller to respond dynamically to grid demand signals or shift-based energy budgets.

In servo-intensive applications, pairing the X20 00-182-465 with correctly rated KUKA motor connector assemblies and shielded signal cables for the resolver circuit ensures that electromagnetic interference does not corrupt position feedback — a common source of unnecessary re-runs and wasted cycle energy in poorly shielded installations.

Maintenance and Replacement Notes

In high-cycle automotive stamping and welding lines, robot downtime caused by cable failure is among the most costly interruptions a plant can experience. A degraded or incorrectly specified power cable introduces voltage drop under peak torque demand — typically during high-acceleration moves at the start of a weld cycle or during rapid repositioning between weld points. This voltage drop forces the servo drives to draw higher current to compensate, increasing heat generation in both the cable and the drive modules, accelerating insulation fatigue, and ultimately shortening the service life of the entire power delivery chain.

The KUKA X20 00-182-465, specified to OEM tolerances for the KR C series, eliminates this failure mode. By maintaining rated conductor cross-section and insulation integrity across the full flex cycle count, it ensures that the servo drives receive stable input voltage throughout the robot’s operational life. This directly translates to lower average current draw, reduced thermal cycling in the drive cabinet, and fewer unplanned maintenance interventions.

From a production line rhythm (takt time) perspective, consistent power delivery means the robot’s motion controller can execute programmed velocity profiles without adaptive current limiting — a condition that, when triggered by poor cable quality, silently extends cycle times by fractions of a second per move. Across thousands of cycles per shift, these fractions accumulate into measurable throughput losses. Facilities that have standardized on OEM-specified cables like the X20 00-182-465 report more predictable takt adherence and reduced variance in cycle time data.

Predictive maintenance programs benefit equally. When power cable resistance is stable and within specification, current signature analysis tools can accurately detect early-stage motor bearing wear or winding degradation — signals that would otherwise be masked by cable-induced noise. This allows maintenance teams to schedule interventions during planned downtime rather than reacting to unexpected failures, directly improving Overall Equipment Effectiveness (OEE).

All units supplied by ZYPLC undergo outbound shipment testing to verify continuity, insulation resistance, and connector integrity before dispatch. Combined with a warranty terms confirmed during quotation, this ensures that every X20 00-182-465 delivered to your facility is ready for immediate installation and validated operation.

Product Sourcing FAQ

Q1: How does the KUKA X20 00-182-465 contribute to operational stability in a robot cell?
By maintaining low resistive losses across the full operating current range, the X20 00-182-465 ensures that servo drives receive stable input voltage without compensatory current overdraw. This reduces heat generation in the drive cabinet, lowers average power consumption per cycle, and supports accurate condition monitoring by eliminating cable-induced measurement distortion.

Q2: Which KUKA controller models is this cable compatible with?
The X20 00-182-465 is designed for the KUKA KR C series, including KR C2, KR C4, and KR C5 controller variants. It is the OEM-specified primary power cable for these platforms. If you are unsure about compatibility with a specific robot model or controller revision, contact ZYPLC with your full robot nameplate data for confirmation.

Q3: Can this cable be used as a direct replacement for a worn or damaged original cable?
Yes. The X20 00-182-465 is an OEM part number and is a direct replacement for the original cable supplied with KR C series robots. No modification to the controller or robot arm is required. ZYPLC recommends replacing the full cable assembly rather than splicing, to maintain insulation integrity and warranty validity.

Q4: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Every unit undergoes outbound shipment testing including conductor continuity verification, insulation resistance measurement, and connector seating inspection. The warranty terms confirmed during quotation covers manufacturing defects and premature failure under normal operating conditions. Warranty claims are processed directly through ZYPLC — contact plc.sales@zyplc.com with your order reference and fault description.
