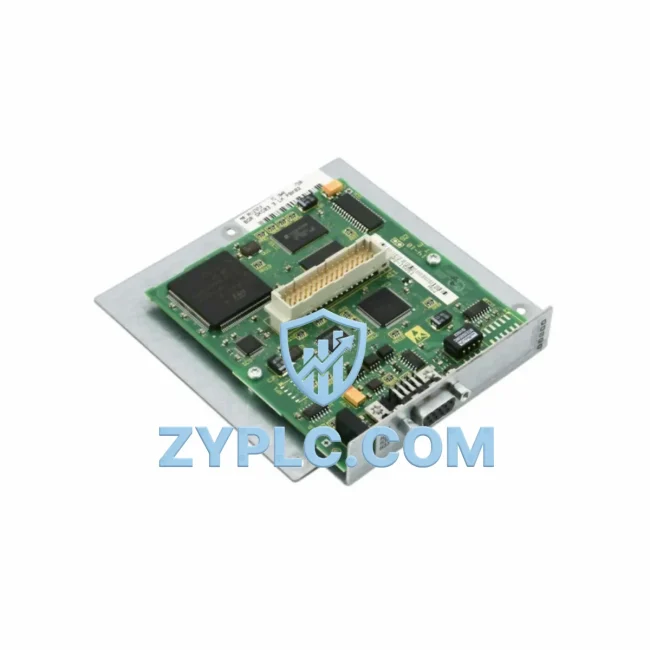

Lam Research ECM01.1-PB01-NN Industrial Drive Controller for ECM Series Systems

Lam Research ECM01.1-PB01-NN OM80-HC12-V7: Industrial Data Link for Smart Factory Drive Control

The Lam Research ECM01.1-PB01-NN OM80-HC12-V7 0242-30288 is a high-performance industrial drive controller from the ECM Series, engineered to serve as a critical data and control node within advanced manufacturing and smart factory environments. Designed for precision motion control and seamless integration across multi-protocol industrial networks, this unit bridges the gap between field-level actuators and upper-level supervisory systems — enabling real-time data flow, deterministic command execution, and continuous process visibility across the entire automation chain.

In modern industrial sites, the demand for uninterrupted connectivity between servo drives, PLC controllers, remote I/O modules, HMI panels, SCADA platforms, and edge gateways has never been greater. The ECM01.1-PB01-NN addresses this demand by providing a robust, field-proven control interface that supports high-speed signal acquisition, protocol-level communication, and fault-tolerant network transmission — all within a compact, DIN-rail-compatible form factor suited for both new installations and legacy system upgrades.

Network Communication Table

Connected Automation Data Flow

Within a fully integrated smart factory architecture, the ECM01.1-PB01-NN OM80-HC12-V7 operates as a central motion control node, receiving high-resolution position commands from upstream Siemens S7-1500 PLC controllers or Rockwell Automation ControlLogix platforms via PROFIBUS-DP or Industrial Ethernet backbones. These commands are translated in real time into precise drive signals, coordinating multi-axis servo motion with sub-millisecond cycle accuracy.

At the field level, the ECM01.1-PB01-NN interfaces directly with Lam Research ECM Series servo amplifiers and encoder feedback modules, capturing position, velocity, and torque data from each axis. This data is simultaneously forwarded upstream to Wonderware InTouch SCADA or Ignition SCADA platforms, where operators monitor process variables, set alarm thresholds, and initiate remote diagnostic routines — all without interrupting live production cycles.

For distributed I/O expansion, the controller integrates with Beckhoff EK1100 EtherCAT Couplers and Phoenix Contact Axioline F remote I/O modules, extending digital and analog signal reach across large production floors without signal degradation. Sensor data from Keyence FS-N series fiber optic sensors and Sick S300 safety laser scanners feeds into the ECM01.1-PB01-NN’s I/O layer, enabling real-time process feedback and safety interlock logic.

At the HMI layer, Siemens SIMATIC TP1200 Comfort HMI panels display live drive status, axis position, fault codes, and energy consumption metrics sourced directly from the ECM controller’s data registers. Operators can acknowledge alarms, adjust motion profiles, and trigger manual jog sequences from the HMI without requiring engineering workstation access.

For edge-level data aggregation and cloud connectivity, the ECM01.1-PB01-NN’s network output connects to Moxa UC-8112 industrial edge gateways, which package drive telemetry into MQTT or OPC-UA data streams for transmission to MES and ERP platforms. This end-to-end data chain — from encoder pulse to enterprise dashboard — is what defines the ECM Series’ role in Industry 4.0 deployments.

Variable frequency drives such as the ABB ACS880 series operating in adjacent process zones can be synchronized with the ECM01.1-PB01-NN via shared PROFIBUS segments, ensuring coordinated motion across multi-drive production lines. Power conditioning for the controller and its associated drive stack is typically provided by Phoenix Contact QUINT POWER 24VDC industrial power supplies, ensuring stable, noise-filtered voltage delivery even in high-EMI environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different equipment generations and vendors. A production line may simultaneously operate legacy PROFIBUS-DP devices alongside newer EtherCAT or PROFINET nodes, creating protocol islands that prevent unified data visibility. The ECM01.1-PB01-NN OM80-HC12-V7 addresses this directly by supporting multi-protocol communication at the drive controller level, acting as a protocol bridge that normalizes data from heterogeneous field devices into a single, coherent network stream.

Data silos — where drive fault logs, encoder positions, and process alarms exist only within isolated controller memory — are eliminated through the ECM Series’ structured data export architecture. Fault events are automatically timestamped and transmitted to SCADA historians, enabling post-event root cause analysis without manual data extraction. Remote diagnostic capability means that maintenance engineers can interrogate drive parameters, review fault buffers, and push firmware updates from centralized engineering stations, reducing unplanned downtime and eliminating the need for on-site intervention for routine diagnostics.

Production line transparency is further enhanced through the ECM01.1-PB01-NN’s support for real-time OEE (Overall Equipment Effectiveness) data reporting. By continuously streaming cycle time, axis utilization, and fault frequency data to MES platforms, plant managers gain actionable insight into bottlenecks, predictive maintenance windows, and capacity optimization opportunities. System scalability is built in: additional ECM Series axes and I/O nodes can be added to the network without reconfiguring the existing communication backbone, supporting phased factory expansion without production interruption.

Every unit shipped by ZYPLC undergoes pre-shipment functional testing, including communication protocol verification, I/O channel validation, and drive interface continuity checks. This ensures that the ECM01.1-PB01-NN arrives ready for immediate integration, minimizing commissioning time and reducing the risk of field failures during startup.

Industrial Connectivity FAQ

Q1: What communication protocols does the Lam Research ECM01.1-PB01-NN support?
The ECM01.1-PB01-NN OM80-HC12-V7 supports PROFIBUS-DP as its primary fieldbus protocol, with RS-485 serial communication for legacy device integration. The ECM Series architecture is also compatible with Industrial Ethernet gateway adapters, enabling integration into EtherCAT and PROFINET network segments through protocol conversion modules.

Q2: How does this drive controller maintain network stability in high-EMI industrial environments?
The ECM01.1-PB01-NN is designed with shielded communication interfaces and hardware-level noise filtering to maintain signal integrity in high-EMI environments typical of servo drive cabinets and variable frequency drive installations. Its deterministic communication cycle ensures that network latency remains within defined bounds even under heavy I/O polling loads.

Q3: Can the ECM01.1-PB01-NN be integrated into an existing SCADA or HMI system without replacing the current network infrastructure?
Yes. The ECM Series controllers are designed for backward-compatible integration. Using standard PROFIBUS-DP addressing and GSD file configuration, the ECM01.1-PB01-NN can be added to existing SCADA and HMI systems — including Wonderware, Ignition, and Siemens WinCC platforms — without requiring changes to the existing network topology or PLC program structure.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
All Lam Research ECM01.1-PB01-NN units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes a comprehensive functional test protocol including communication interface verification, drive signal output validation, encoder feedback channel testing, and I/O continuity checks — ensuring full operational readiness upon delivery.
