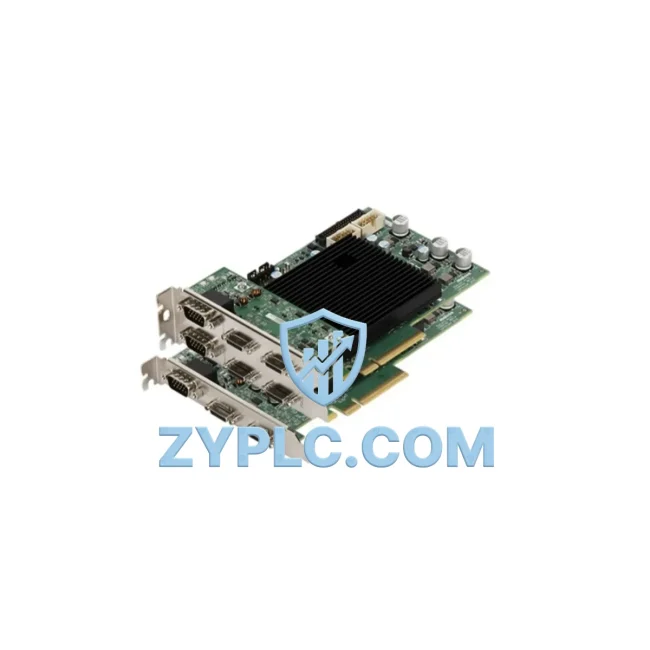

Matrox RADEV5MCLSF RadiEnt eV5 Camera Link Frame Grabber

Matrox RADEV5MCLSF RadiEnt eV5: Industrial Data Link for Smart Factory Machine Vision

The Matrox RADEV5MCLSF is a high-performance Camera Link frame grabber built on the RadiEnt eV5 platform, engineered for demanding industrial imaging applications where real-time data acquisition, protocol reliability, and seamless integration with factory automation networks are non-negotiable. Designed for deployment in automated optical inspection (AOI), semiconductor wafer inspection, flat panel display testing, and high-throughput machine vision lines, the RADEV5MCLSF serves as the critical data bridge between line-scan and area-scan cameras and the upstream control and analytics infrastructure of a modern smart factory.

Operating over a PCIe Gen3 x8 host interface with a pixel clock of up to 85 MHz, the RADEV5MCLSF delivers the sustained bandwidth required to handle full Camera Link Base, Medium, Full, and Extended Full configurations without frame loss. This makes it an ideal acquisition engine for high-resolution imaging tasks where even a single dropped frame can invalidate an entire inspection cycle. The card’s deterministic data path ensures that image data flows from the camera sensor to the host memory with minimal latency, enabling real-time processing pipelines that feed directly into SCADA dashboards, HMI displays, and MES platforms.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory environment, the Matrox RADEV5MCLSF sits at the heart of the vision data acquisition layer, receiving high-speed pixel streams from Camera Link-compliant line-scan cameras — such as those used in web inspection or PCB surface defect detection — and delivering structured image data to the host processing system. From there, the processed inspection results are passed downstream through industrial Ethernet protocols to the plant’s control backbone.

A typical deployment might pair the RADEV5MCLSF with a Matrox Radient eCL or Matrox Solios eCL in a multi-camera inspection station, where each frame grabber handles a dedicated camera channel. The host PC running Matrox Imaging Library (MIL) aggregates the inspection data and forwards pass/fail signals to a Siemens S7-1500 PLC via a PROFINET gateway module, which in turn controls conveyor reject mechanisms and line-speed adjustments. Simultaneously, the PLC communicates with a Siemens TP1500 Comfort HMI panel, giving operators a real-time view of inspection throughput, defect rates, and camera trigger status.

For remote monitoring and enterprise-level data aggregation, the inspection results are forwarded through an industrial edge gateway — such as a Moxa UC-8112 edge computer — which normalizes the data into OPC-UA format and publishes it to a SCADA platform (e.g., Wonderware InTouch or Ignition SCADA). This allows quality engineers and plant managers to access live inspection KPIs, trend charts, and alarm logs from any location on the corporate network without interrupting the production line.

In lines where variable-speed drives control conveyor or spindle motors, the RADEV5MCLSF’s trigger I/O interface synchronizes camera exposure with encoder pulses from Omron E6B2 rotary encoders, ensuring pixel-accurate image capture regardless of line speed variation. The trigger signal chain — from encoder to frame grabber to camera — is managed with microsecond-level precision, eliminating motion blur artifacts that would otherwise compromise defect detection algorithms. Where Keyence IV3 smart cameras or Cognex In-Sight sensors handle secondary inspection tasks on adjacent stations, their results are merged with RADEV5MCLSF data at the SCADA layer, creating a unified quality record for each production unit.

Power distribution to the vision station is typically handled by industrial DIN-rail power supplies (e.g., Phoenix Contact QUINT series), ensuring stable 24 VDC supply to cameras, lighting controllers, and I/O modules — a critical factor in maintaining consistent image quality and eliminating noise-induced false rejects.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial imaging deployments is protocol fragmentation: Camera Link cameras speak a parallel, high-speed pixel protocol that is fundamentally incompatible with the Ethernet-based communication fabric of modern factory networks (PROFINET, EtherNet/IP, EtherCAT, Modbus TCP). The Matrox RADEV5MCLSF resolves this by acting as the protocol translation layer — converting raw Camera Link pixel streams into structured, host-accessible image buffers that can be processed, analyzed, and then re-encoded into standard industrial network messages for downstream consumption.

This eliminates the data silo that traditionally exists between the vision subsystem and the plant control network. Without a capable frame grabber like the RADEV5MCLSF, inspection results often remain trapped within the vision PC, accessible only through manual export or proprietary interfaces. With the RADEV5MCLSF integrated into the automation architecture, inspection outcomes become first-class data citizens on the factory network — triggerable by PLC logic, loggable by SCADA historians, and displayable on HMI panels in real time.

Remote diagnostics are equally important in large-scale deployments. The RADEV5MCLSF’s driver stack exposes camera status, trigger counters, and error flags through the MIL API, which can be polled by remote monitoring agents and surfaced on SCADA alarm pages. This means maintenance engineers can identify a failing camera trigger cable or a misconfigured pixel clock remotely, before a line stoppage occurs — reducing unplanned downtime and the cost of on-site troubleshooting visits.

System scalability is addressed through the PCIe Gen3 x8 interface, which provides headroom for future camera upgrades to higher-resolution sensors or faster line rates without requiring a host system replacement. As production lines evolve — adding more inspection stations, higher-resolution cameras, or additional communication channels — the RADEV5MCLSF’s bandwidth reserves ensure it remains a viable platform component for the long term.

Every unit shipped by ZYPLC undergoes a pre-shipment functional test to verify PCIe enumeration, Camera Link signal integrity, and trigger I/O operation. Combined with a 12-month warranty and in-stock availability, this ensures that procurement teams can plan deployments with confidence, knowing that replacement units are available and that each unit has been validated before it leaves the warehouse.

Industrial Connectivity FAQ

Q1: What Camera Link configurations does the Matrox RADEV5MCLSF support, and does it introduce latency in the image acquisition pipeline?
The RADEV5MCLSF supports Camera Link Base, Medium, Full, and Extended Full configurations, covering single-tap to ten-tap camera interfaces. The PCIe Gen3 x8 DMA engine transfers image data directly to host memory with deterministic, sub-millisecond latency from pixel clock to buffer-ready notification, making it suitable for real-time inspection loops where processing must begin within microseconds of frame completion.

Q2: How does the RADEV5MCLSF integrate with PROFINET or EtherNet/IP-based PLC networks?
The RADEV5MCLSF itself communicates via Camera Link on the camera side and PCIe on the host side. Integration with PROFINET or EtherNet/IP PLCs is achieved at the host software layer: the vision application (built on MIL or a compatible SDK) processes inspection results and communicates pass/fail or measurement data to the PLC via an OPC-UA server, a PROFINET gateway, or direct socket communication — depending on the PLC platform and network architecture in use.

Q3: Can the RADEV5MCLSF operate reliably in electrically noisy industrial environments, and what measures ensure network stability?
The RadiEnt eV5 platform is designed for industrial-grade reliability. The opto-isolated trigger inputs protect the card from ground loops and electrical transients common in motor-drive environments. The PCIe interface provides a noise-immune, point-to-point connection to the host CPU, eliminating the susceptibility to EMI that affects shared-bus architectures. For additional protection, deploying the host system in a properly grounded industrial enclosure with filtered power (e.g., Phoenix Contact QUINT PSU) is recommended.

Q4: What does the 12-month warranty cover, and how does ZYPLC handle warranty claims?
The 12-month warranty covers hardware defects in materials and workmanship under normal operating conditions. Each unit is functionally tested prior to shipment. In the event of a warranty claim, ZYPLC provides direct support via +86 19859288691 or plc.sales@zyplc.com. Replacement or repair is coordinated to minimize production downtime, with in-stock units available for rapid dispatch.
