Mitsubishi A1S68B Industrial Network Interface for MELSEC AnS Systems

Mitsubishi A1S68B: Industrial Data Link and Smart Factory Connectivity for MELSEC AnS Systems

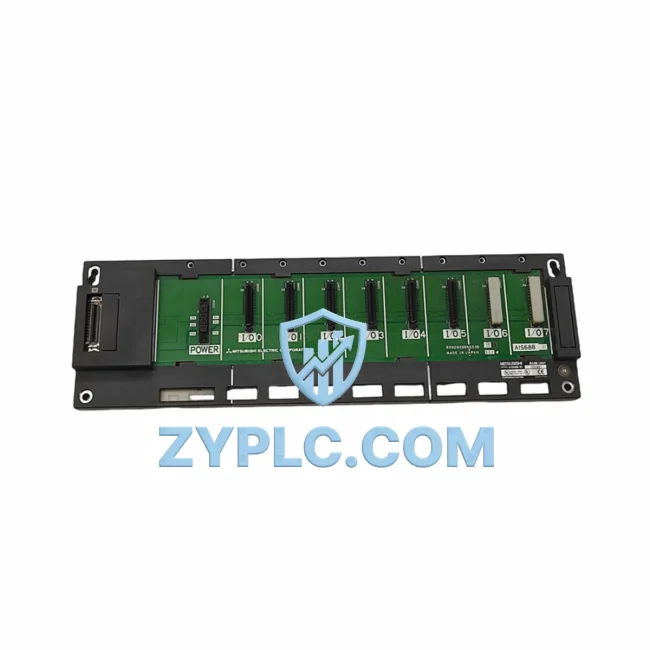

The Mitsubishi A1S68B is an 8-slot expansion base unit engineered for the MELSEC AnS series PLC platform, delivering the structural backbone that enables seamless industrial data flow across field devices, remote I/O modules, HMI panels, SCADA systems, and upper-level MES networks. In modern smart factory environments where real-time data acquisition, protocol interoperability, and network stability are non-negotiable, the A1S68B provides the physical and electrical foundation that keeps every node in the automation chain communicating reliably.

Designed to extend the I/O capacity and communication reach of AnS series CPU modules, the A1S68B integrates directly with Mitsubishi’s proven MELSEC bus architecture. Whether deployed in discrete manufacturing, process control, or hybrid automation environments, this expansion base unit supports the high-density module population required for complex signal acquisition, protocol conversion, and network transmission tasks that define Industry 4.0 connectivity.

Network Communication Table

Connected Automation Data Flow

In a typical AnS-series automation architecture, the A1S68B expansion base sits at the heart of the control cabinet, hosting the full range of MELSEC AnS I/O and communication modules that form the data acquisition and transmission layer. The A1SCPUC24-R2 CPU module, mounted on the main base, orchestrates all logic execution and communicates with the A1S68B via the MELSEC-A bus, ensuring deterministic scan-cycle data exchange between the CPU and every module installed in the expansion slots.

Digital input modules such as the A1SX41 (32-point DC input) collect field-level signals from proximity sensors, limit switches, and photoelectric detectors on the production line. These signals are passed through the A1S68B backplane to the CPU in real time, enabling sub-millisecond response to process events. On the output side, modules like the A1SY42 (32-point transistor output) drive solenoid valves, indicator lamps, and relay coils, closing the control loop between the PLC and physical actuators.

For network communication and SCADA integration, the A1SJ71UC24-R4 serial communication module can be installed in one of the A1S68B’s expansion slots, providing RS-232C and RS-422 interfaces that connect the AnS system to HMI terminals, barcode readers, and upper-level supervisory systems. When CC-Link fieldbus connectivity is required — for example, to link remote I/O stations, variable frequency drives, or distributed sensor nodes across the factory floor — the A1SJ61BT11 CC-Link master module slots directly into the A1S68B, enabling high-speed cyclic data exchange at up to 10 Mbps across distances of up to 1,200 meters.

Power integrity across the expanded system is maintained by the A1S61PN or A1S62PN power supply modules, which provide stable 5 VDC backplane power to all modules in the A1S68B. In multi-base configurations, the A1S68B connects to the main base via the MELSEC-A extension cable, allowing the system to scale from a compact 5-slot main base to a fully distributed I/O architecture spanning hundreds of points — all managed from a single CPU scan cycle.

At the SCADA and MES integration layer, data collected through the A1S68B’s installed communication modules flows upward through Ethernet gateways or serial converters to supervisory platforms running on industrial PCs or edge computing nodes. This data chain — from field sensor through I/O module, across the A1S68B backplane, through the CPU, and up to the SCADA server — forms the real-time visibility backbone that enables production monitoring, alarm management, OEE calculation, and remote diagnostics without interrupting machine operation.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid automation environments is data isolation: field devices and PLC subsystems that operate on incompatible protocols, proprietary bus architectures, or isolated network segments, making it impossible to achieve plant-wide visibility or centralized control. The Mitsubishi A1S68B directly addresses this challenge by providing the expansion capacity needed to host multiple communication modules simultaneously — enabling protocol bridging, multi-network participation, and data aggregation within a single AnS-series PLC chassis.

By populating the A1S68B’s 8 slots with a combination of serial communication modules, CC-Link master modules, analog I/O modules, and digital I/O modules, system integrators can build a unified data collection node that speaks to RS-232C devices, CC-Link slaves, and MELSECNET peers simultaneously. This eliminates the need for standalone protocol converters or separate gateway hardware, reducing panel footprint, wiring complexity, and potential points of failure.

For remote monitoring and diagnostics, the communication modules installed in the A1S68B enable the AnS CPU to report alarm states, process values, and diagnostic codes to SCADA systems and HMI panels in real time. Operators at remote workstations can monitor production line status, acknowledge alarms, and adjust setpoints without physical access to the control cabinet — a critical capability for multi-site manufacturing operations and unmanned production shifts.

System expansion is equally straightforward: additional A1S68B units can be daisy-chained to the main base using standard MELSEC-A extension cables, allowing the I/O count to grow as production requirements evolve. This modular scalability protects the initial automation investment and ensures that the control architecture can accommodate new production lines, additional sensor networks, or upgraded communication protocols without requiring a complete system redesign.

Every A1S68B unit supplied by ZYPLC undergoes pre-shipment functional testing to verify backplane bus integrity, slot connectivity, and power distribution performance. Units are shipped with full export documentation and are backed by a 12-month warranty, with in-stock availability supporting fast global delivery via DHL or FedEx.

Industrial Connectivity FAQ

Q1: What communication protocols does the A1S68B support?
The A1S68B itself is a passive expansion base unit — it does not process protocols independently. Protocol support is determined by the communication modules installed in its slots. With modules such as the A1SJ71UC24-R4, it supports RS-232C and RS-422 serial protocols. With the A1SJ61BT11, it supports CC-Link fieldbus. MELSECNET connectivity is available via the appropriate MELSECNET module, enabling integration with SCADA, HMI, and upper-level MES systems.

Q2: How does the A1S68B ensure network stability in high-noise industrial environments?
The A1S68B uses Mitsubishi’s proven MELSEC-A backplane bus architecture, which is designed for electrical noise immunity in industrial environments. The backplane provides shielded, impedance-controlled signal paths between the CPU and all installed modules, minimizing crosstalk and ensuring deterministic data transfer even in environments with heavy motor drives, welding equipment, or high-frequency switching devices nearby.

Q3: Can the A1S68B be used to expand an existing AnS system without replacing the CPU?
Yes. The A1S68B is fully compatible with existing AnS-series CPU modules including the A1SCPU, A1SCPUC24-R2, A2SCPU, and A2SHCPU. It connects to the main base via the standard MELSEC-A extension cable, and the CPU automatically recognizes the expanded I/O configuration during initialization. No firmware changes or CPU replacement are required, making it an ideal solution for capacity upgrades on installed systems.

Q4: What warranty and testing does ZYPLC provide for the A1S68B?
All A1S68B units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing including backplane bus continuity verification, slot interface checks, and power distribution testing. Units are shipped with full export compliance documentation and are available for immediate dispatch from stock via DHL or FedEx international express.
