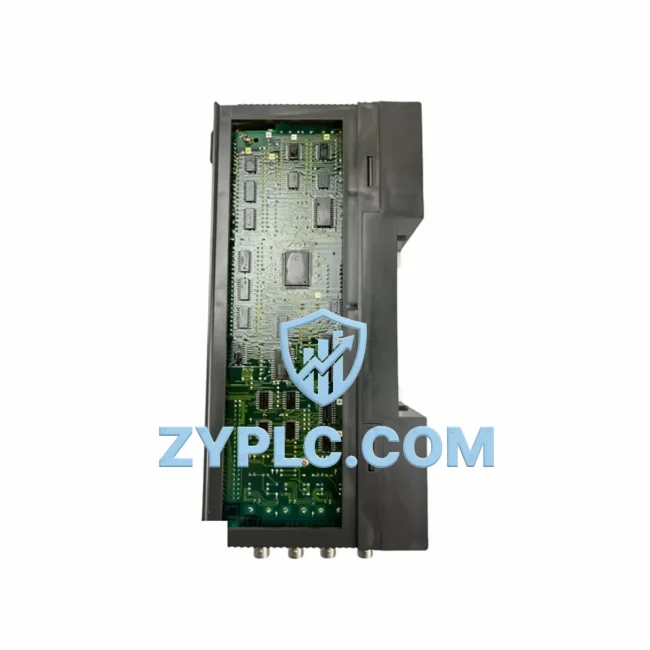

Mitsubishi A3NCPUR21 Industrial Network Interface for MELSEC-A Systems

Mitsubishi A3NCPUR21 Industrial Network Interface for MELSEC-A Systems

The Mitsubishi A3NCPUR21 is a high-performance CPU module engineered for the MELSEC-A Series programmable logic controller platform, delivering robust industrial data link capabilities across complex smart factory environments. As a central processing unit within the MELSEC-A architecture, the A3NCPUR21 orchestrates real-time data exchange between field devices, remote I/O stations, HMI panels, SCADA systems, and upper-level MES networks — forming the backbone of a fully connected industrial data chain. Whether deployed in automotive assembly lines, chemical processing plants, or discrete manufacturing cells, this module ensures deterministic communication, high-speed scan cycles, and reliable protocol handling that modern Industry 4.0 applications demand.

In today’s smart factory landscape, seamless connectivity between the shop floor and enterprise systems is no longer optional. The A3NCPUR21 addresses this need by supporting Mitsubishi’s proprietary MELSEC data link protocols, enabling structured data flow from signal acquisition at the sensor level all the way through to SCADA dashboards and cloud-based analytics platforms. Its architecture supports integration with CC-Link field networks, allowing distributed I/O modules and intelligent field devices to communicate with the CPU at high speed and with minimal latency — a critical requirement for real-time process control and alarm management.

Network Communication Table

Connected Automation Data Flow

The A3NCPUR21 sits at the heart of a layered industrial communication architecture. At the field level, discrete sensors and analog transmitters feed process data into remote I/O modules such as the A1SX41 (digital input) and A1SY41 (digital output), which relay signals across the MELSEC-A backplane to the CPU for real-time processing. For motion control applications, the A1SD75P3-S3 positioning module interfaces directly with servo drives and variable frequency drives, with the A3NCPUR21 coordinating axis commands and feedback loops at the program scan level.

At the network layer, the AJ71QC24N serial communication module extends the CPU’s reach to external devices via RS-232C and RS-422 interfaces, enabling protocol conversion between MELSEC and third-party equipment such as barcode readers, weighing controllers, and vision systems. For Ethernet-based SCADA connectivity, the A1SJ71QE71N3-T Ethernet interface module bridges the MELSEC-A platform to TCP/IP networks, allowing SCADA software and MES platforms to poll real-time production data from the A3NCPUR21 without interrupting the control cycle.

In distributed architectures, the AJ65SBTB1-32D CC-Link remote I/O terminal block connects field-level devices across distances of up to 1,200 meters, with the A3NCPUR21 acting as the CC-Link master station managing cyclic data refresh for all connected slave stations. For operator interface, GOT2000 Series HMI panels communicate directly with the CPU via the MELSEC data link protocol, providing operators with live process visualization, alarm acknowledgment, and parameter adjustment capabilities on the plant floor.

Where legacy MELSEC-A systems must interface with newer MELSEC-Q or MELSEC-iQ-R platforms, the A1SJ71UC24-R4 computer link module serves as a gateway, translating communication formats and ensuring backward compatibility across mixed-generation control architectures. For applications requiring high-density analog signal processing, the A68AD analog input module feeds multi-channel process values directly to the A3NCPUR21, supporting closed-loop PID control and trend logging for quality management systems. Edge gateway devices further upstream aggregate data from the A3NCPUR21 and transmit structured payloads to cloud platforms for predictive maintenance and OEE analysis.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the inability to move process information seamlessly between field devices, control systems, and enterprise software. The A3NCPUR21 directly addresses this by providing a unified processing core that supports multiple communication pathways simultaneously. Sites running heterogeneous equipment from different vendors often face protocol incompatibility, where PLCs, drives, and sensors speak different communication languages. The A3NCPUR21’s support for serial communication modules and Ethernet interface cards allows system integrators to bridge these gaps without replacing existing field infrastructure.

Remote monitoring is another area where the A3NCPUR21 delivers measurable value. By pairing the CPU with an Ethernet or serial communication module, maintenance engineers can access real-time diagnostic data, fault codes, and program status from remote locations — reducing unplanned downtime and enabling predictive maintenance strategies. SCADA systems connected via the A1SJ71QE71N3-T can trigger automated alerts when process variables exceed defined thresholds, closing the loop between field events and control room responses within milliseconds.

For production line transparency, the A3NCPUR21 supports structured data logging that feeds into MES and ERP platforms, giving plant managers visibility into cycle times, reject rates, and equipment utilization in real time. System expansion is equally straightforward: the MELSEC-A backplane architecture allows additional I/O modules, communication cards, and special function modules to be added without reprogramming the core control logic, protecting the customer’s existing automation investment while scaling capacity to meet growing production demands.

Industrial Connectivity FAQ

Q1: What communication protocols does the Mitsubishi A3NCPUR21 support?
The A3NCPUR21 natively supports Mitsubishi’s MELSEC data link protocol and CC-Link field network communication. With optional interface modules such as the AJ71QC24N or A1SJ71QE71N3-T, the system can also communicate via RS-232C, RS-422, and Ethernet TCP/IP, enabling integration with SCADA, HMI, and MES platforms across diverse industrial network architectures.

Q2: How does the A3NCPUR21 ensure network stability in demanding industrial environments?
The A3NCPUR21 is designed for continuous 24/7 operation in industrial environments with wide temperature ranges, electrical noise, and vibration. Its deterministic scan cycle ensures consistent communication timing, while the CC-Link master function provides automatic error detection and recovery for connected remote I/O stations, minimizing the risk of communication dropouts on the production floor.

Q3: Can the A3NCPUR21 be integrated into a SCADA or HMI system?
Yes. The A3NCPUR21 integrates seamlessly with Mitsubishi GOT2000 Series HMI panels via the MELSEC data link protocol, and with SCADA platforms through Ethernet interface modules. Standard OPC server drivers are also available for third-party SCADA software, enabling real-time data acquisition, alarm management, and historical trending without custom programming.

Q4: What quality assurance and warranty coverage is provided with the A3NCPUR21?
Every A3NCPUR21 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, I/O response, and program execution before dispatch. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate dispatch via DHL or FedEx with full tracking, and our technical team provides post-sale support for installation and commissioning queries.
