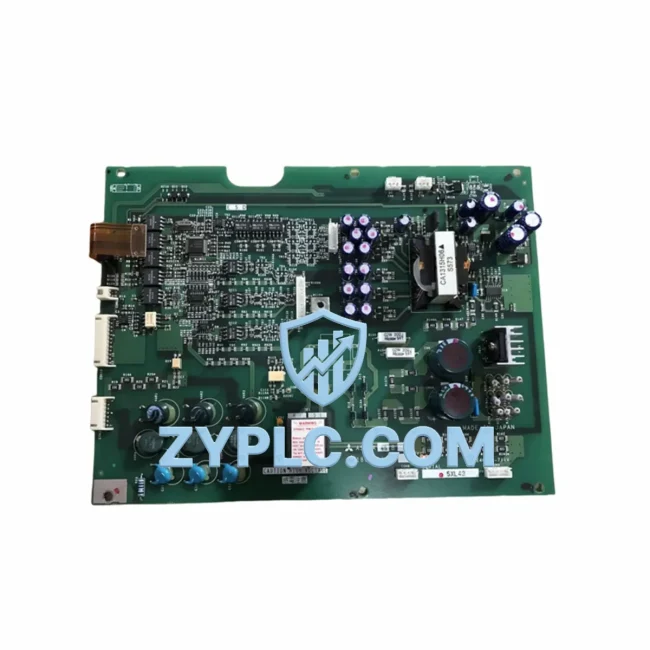

Mitsubishi BC186A219G52 Power Driver Board for FR-A220

Mitsubishi BC186A219G52 Power Driver Board for FR-A220

In modern industrial automation, the reliability of a drive system depends not only on the performance of individual components but on the coherence of the entire control architecture. The Mitsubishi BC186A219G52 Power Driver Board is engineered as a system-compatible component within the FR-A220 inverter series, designed to maintain signal integrity, switching precision, and thermal stability across the full operational lifecycle of a variable frequency drive installation. Understanding its role requires examining the broader control hierarchy in which it operates — from the PLC control layer down through the drive layer, I/O interface, communication network, and ultimately to the motor and mechanical load.

Product Specification Table

System Compatibility Notes

The BC186A219G52 does not operate in isolation. Its function is deeply embedded within a layered automation architecture where each component depends on the stable operation of adjacent modules. In a typical Mitsubishi-based control system, the FR-A220 inverter — of which this driver board is a core internal assembly — receives speed and torque commands from a programmable logic controller such as the Mitsubishi Q06HCPU or Q02UCPU. These CPU modules communicate via the MELSEC-Q backplane, mounted on a Q35B or Q38B base unit, and interface with the drive through a dedicated communication module such as the QJ71E71-100 Ethernet interface or the QJ61BT11N CC-Link master module.

On the power supply side, the Q61P or Q62P power supply module provides stable 5 VDC and 24 VDC rails to the CPU and I/O modules, ensuring that control signals reaching the FR-A220 are clean and consistent. Any instability at the power layer propagates downstream and can manifest as erratic drive behavior — making the integrity of the BC186A219G52 driver board critical to maintaining switching accuracy at the IGBT level.

At the I/O layer, QX40 digital input modules and QY10 digital output modules handle discrete signals such as run/stop commands, fault resets, and status feedback. These signals are routed through the FR-A220 control terminals and interpreted by the internal control board, which then issues gate drive pulses through the BC186A219G52 to the IGBT power module. The precision of this signal chain — from PLC output to gate pulse — determines motor control quality, harmonic performance, and thermal efficiency.

For human-machine interface integration, a GOT1000 series panel such as the GT1575V or GT1585V provides real-time visualization of drive parameters, fault history, and system status. These HMI units communicate with the Q-series PLC via RS-422 or Ethernet, enabling operators to monitor inverter output frequency, current, and fault codes without interrupting the control loop. When the BC186A219G52 is functioning correctly, the drive operates transparently within this architecture — its contribution visible only in the absence of faults and the consistency of motor performance.

In redundant or high-availability configurations, a secondary FR-A220 unit may be held in warm standby, with the BC186A219G52 serving as a direct replacement board to minimize mean time to repair. Maintaining a stocked spare of this driver board is a recognized best practice in facilities where unplanned downtime carries significant operational cost.

Industrial Application Notes

The BC186A219G52 Power Driver Board finds application across a wide range of process and discrete manufacturing environments where the FR-A220 inverter is deployed as the primary motor drive platform.

In water treatment and pumping stations, FR-A220 drives control submersible and centrifugal pumps operating under variable flow demand. The driver board’s role in maintaining precise IGBT switching ensures smooth speed transitions, reducing water hammer and mechanical stress on pump seals and impellers. Facilities operating 24/7 depend on the 12-Month Warranty coverage and available spare stock to support rapid board-level replacement without full drive changeout.

In metallurgical and steel processing plants, variable speed drives manage conveyor systems, rolling mill auxiliary drives, and cooling fan arrays. The thermal and electrical demands in these environments are severe, and the BC186A219G52 must maintain gate drive integrity under sustained high-current switching cycles. Its compatibility with the FR-A220 architecture ensures that existing control programs, parameter sets, and communication configurations remain valid after board replacement.

In petrochemical and chemical processing facilities, FR-A220 inverters drive compressors, agitators, and circulation pumps in hazardous area adjacent installations. The ability to perform board-level maintenance — replacing the BC186A219G52 without disturbing the drive’s external wiring or PLC program — reduces maintenance window duration and minimizes the risk of configuration errors during recommissioning.

In packaging and material handling lines, where multiple FR-A220 drives operate in coordinated motion sequences, a single failed driver board can halt an entire production segment. system integration of the BC186A219G52 within the broader drive and control architecture means that replacement boards are pre-validated for compatibility, reducing the engineering effort required during emergency maintenance.

Product Compatibility FAQ

Q1: Is the BC186A219G52 compatible with all FR-A220 variants, and does replacement require reconfiguration of drive parameters?
The BC186A219G52 is designed for use within the FR-A220 series inverter platform. Board-level replacement does not alter the drive’s parameter memory, which is stored on the control board rather than the driver board. After installing a replacement BC186A219G52, the drive should be powered up and a functional test performed to verify gate drive operation before returning the system to production. No parameter re-entry is required in standard replacement scenarios.

Q2: How does the BC186A219G52 integrate with upstream PLC and communication architectures, and are there known compatibility constraints?
The driver board operates as an internal component of the FR-A220 and does not directly interface with external PLC or communication modules. Its system integration within the system is achieved through the FR-A220 control board, which manages all external communication via CC-Link, RS-485, or analog/digital I/O terminals. Compatibility constraints are therefore governed by the FR-A220 control board and the connected PLC platform, not by the driver board itself. ZYPLC recommends verifying the complete drive model number before ordering to ensure board-level compatibility.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance planning?
The 12-Month Warranty provided by ZYPLC covers the BC186A219G52 against manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported by ZYPLC’s technical team, who can assist with fault diagnosis, replacement logistics, and compatibility verification. For long-term maintenance planning, ZYPLC recommends maintaining at least one spare BC186A219G52 per installed FR-A220 drive in critical applications, and can provide volume pricing for spare parts programs. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 for support.
