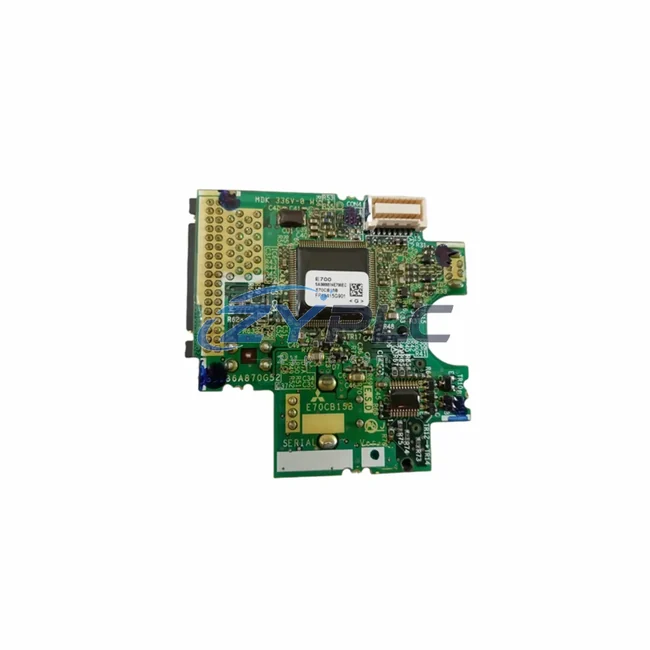

Mitsubishi E70CB15B CPU Motherboard for MELDAS E70

Mitsubishi E70CB15B CPU Motherboard for MELDAS E70: Compatibility and Replacement Notes

The Mitsubishi E70CB15B is the central processing motherboard of the MELDAS E70 CNC control platform, engineered to serve as the computational and signal-routing core within multi-axis machine tool control architectures. Rather than functioning as a standalone component, the E70CB15B is designed to operate as the architectural nucleus of a layered automation system — coordinating signal flow between the control layer, I/O layer, communication network, power supply layer, HMI interface, and servo execution layer. Understanding its role within this hierarchy is essential for engineers responsible for system integration, machine commissioning, and long-term maintenance planning.

In modern CNC machine tool environments — including vertical machining centers, horizontal boring mills, turning centers, and multi-axis compound machines — the CPU motherboard defines the system’s processing capacity, interpolation accuracy, and real-time response capability. The E70CB15B fulfills this role within the MELDAS E70 series, providing the computational backbone that enables coordinated motion control across multiple axes while simultaneously managing I/O polling, alarm diagnostics, and operator interface communication.

Product Specification Table

System Compatibility Notes

The E70CB15B does not operate in isolation. Its value is realized through its integration with a complete set of coordinated MELDAS E70 system components. At the power supply layer, the MELDAS E70 dedicated power supply unit provides regulated DC voltage to the CPU motherboard and downstream I/O modules, ensuring stable operation under variable load conditions. Any voltage fluctuation at this layer directly impacts CPU processing stability, making power supply selection a critical architectural decision.

At the servo execution layer, the E70CB15B interfaces with Mitsubishi MDS-E series servo amplifiers and spindle drive units, transmitting interpolated position commands via the high-speed MELDAS servo bus. The servo amplifiers in turn drive AC servo motors — such as those in the Mitsubishi HG-KR and HG-SR series — to execute precise axis motion. The synchronization between the CPU motherboard’s command output and the servo amplifier’s feedback loop determines the machine’s contouring accuracy and dynamic response.

For I/O management, the E70CB15B coordinates with MELDAS I/O expansion units and remote I/O modules, which handle discrete signal inputs from limit switches, proximity sensors, tool changers, and coolant control relays. These I/O modules are mounted within the same control cabinet and communicate with the CPU motherboard through the MELDAS internal I/O bus, enabling real-time machine state monitoring and PLC ladder logic execution.

At the human-machine interface layer, the E70CB15B connects to the MELDAS E70 operation panel and display unit, which provides the operator with axis position readout, program editing capability, alarm history, and parameter management. In more advanced configurations, an external GOT2000 series HMI terminal may be integrated via RS-232C or Ethernet to provide enhanced visualization, recipe management, and remote monitoring capability — extending the system’s usability in smart manufacturing environments.

For networked factory environments, the MELDAS E70 system can be extended with communication gateway modules supporting CC-Link or PROFIBUS-DP protocols, enabling the CNC controller to participate in plant-level SCADA systems and MES data collection architectures. This communication layer is essential for manufacturers pursuing digital transformation and real-time production data integration.

The E70CB15B also coordinates with the MELDAS E70 backplane and card cage assembly, which provides the physical interconnection between the CPU motherboard, option boards, and I/O interface cards. Proper backplane selection ensures electrical compatibility and mechanical stability across the full system assembly.

Industrial Application Notes

The Mitsubishi E70CB15B CPU Motherboard finds application across a broad range of industrial sectors where precision CNC control is required. In general manufacturing environments — including automotive component machining, aerospace part production, and precision mold fabrication — the E70CB15B provides the processing reliability needed for high-volume, multi-shift operations. Its compatibility with the MELDAS E70 platform ensures that existing machine tool investments can be maintained and extended without requiring full controller replacement.

In the power generation and heavy equipment sector, CNC machine tools equipped with MELDAS E70 controllers are used to machine turbine components, pump housings, and valve bodies to tight dimensional tolerances. The E70CB15B’s stable multi-axis interpolation capability supports the complex contouring operations required in these applications.

In the petrochemical and process industries, CNC machining centers controlled by MELDAS E70 systems produce precision fittings, flanges, and instrumentation components. The reliability of the CPU motherboard in continuous-duty environments is a key selection criterion for maintenance engineers responsible for minimizing unplanned downtime.

In packaging machinery and food processing equipment manufacturing, the MELDAS E70 platform — anchored by the E70CB15B — enables the production of cam profiles, indexing mechanisms, and precision drive components that require consistent surface finish and dimensional repeatability across large production batches.

For system integrators and OEM machine builders, the E70CB15B provides a well-documented, widely supported control platform that simplifies commissioning, parameter backup, and field service. Its established position within the Mitsubishi MELDAS ecosystem means that spare parts, technical documentation, and application support are readily accessible — reducing total cost of ownership over the machine’s operational life.

Product Compatibility FAQ

Q1: Is the E70CB15B compatible with all MELDAS E70 series control cabinets and backplane configurations?
The E70CB15B is designed for use within the MELDAS E70 control platform. Compatibility with specific backplane assemblies, option card slots, and I/O expansion configurations should be verified against the machine’s original system documentation and Mitsubishi MELDAS E70 hardware manual. When replacing an existing CPU motherboard, confirm the board revision and firmware version to ensure functional equivalence. Our technical team can assist with compatibility verification prior to order confirmation.

Q2: What commissioning steps are required when installing the E70CB15B as a replacement in an existing MELDAS E70 system?
Replacement of the CPU motherboard in a MELDAS E70 system typically requires parameter backup from the existing controller prior to removal, followed by parameter restoration after installation of the new board. Machine-specific parameters — including axis gain settings, tool compensation data, and PLC ladder programs — must be reloaded to restore full machine functionality. It is strongly recommended to perform a dry-run verification of all axis movements and I/O functions before returning the machine to production. Our engineering support team can provide guidance on the commissioning procedure specific to your machine configuration.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures occurring under normal operating conditions from the date of shipment. It does not cover damage resulting from improper installation, electrical overstress, or unauthorized modification. For maintenance planners, the warranty terms confirmed during quotation provides a defined risk mitigation window during which replacement or repair costs are covered, supporting budget planning for critical spare parts. We recommend maintaining a documented inventory of key MELDAS E70 system components — including CPU motherboards, servo amplifier modules, and I/O expansion units — to minimize machine downtime in the event of component failure.
