Mitsubishi FCU8-MU042-YS1 Industrial Network Interface for M800 Series

Mitsubishi FCU8-MU042-YS1: Industrial Data Link for M800 Series Smart Factory Networks

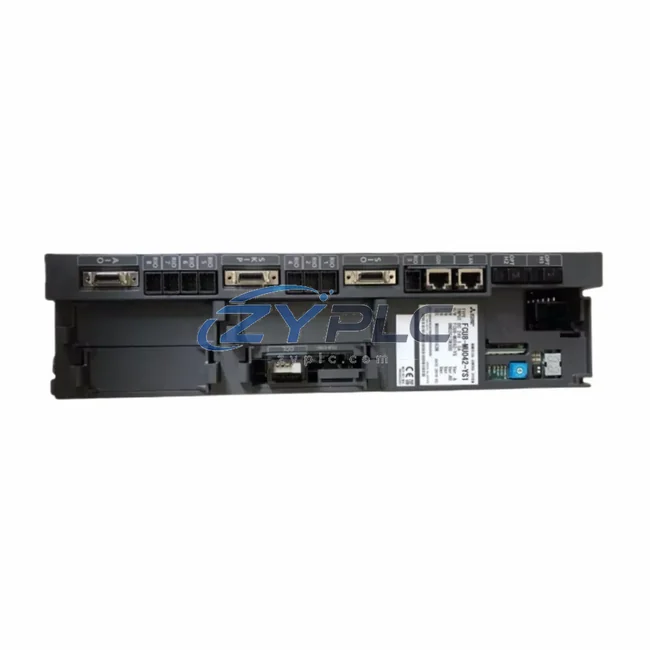

The Mitsubishi FCU8-MU042-YS1 is a high-performance CNC communication controller engineered for the M800 Series platform, purpose-built to serve as the central industrial network interface between CNC machine tools, field devices, and upper-level automation systems. In modern smart manufacturing environments, the ability to maintain uninterrupted, low-latency data flow across heterogeneous networks is not optional — it is the foundation of production transparency, predictive maintenance, and real-time quality control. The FCU8-MU042-YS1 delivers exactly that, acting as a protocol-aware communication hub that bridges the gap between shop-floor machinery and enterprise-level SCADA, MES, and ERP platforms.

Designed for demanding industrial environments, this unit supports multi-protocol communication across CC-Link IE Field Network, PROFIBUS-DP, and standard Ethernet (TCP/IP), enabling seamless integration with a wide range of automation components — from Mitsubishi MELSEC iQ-R Series PLCs and GOT2000 Series HMIs to third-party remote I/O modules, servo drives, and edge computing gateways. Its robust architecture ensures deterministic data transmission even in electrically noisy factory environments, making it a reliable backbone for CNC-centric production lines.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated M800 Series CNC production cell, the FCU8-MU042-YS1 sits at the heart of the data flow architecture. Signal acquisition begins at the sensor and actuator layer — proximity switches, torque sensors, and spindle encoders feed real-time process data into the CNC controller. The FCU8-MU042-YS1 aggregates this data and transmits it upstream via CC-Link IE Field Network to a Mitsubishi MELSEC iQ-R Series PLC (such as the R04CPU or R08CPU), which handles logic execution and coordinates multi-axis motion control.

For distributed I/O expansion, the system connects to Mitsubishi NZ2GF2B1-16D Remote I/O modules over CC-Link IE, extending digital and analog signal reach across the production floor without additional wiring complexity. Simultaneously, the PROFIBUS-DP interface enables legacy device integration — connecting older servo drives, frequency inverters such as the Mitsubishi FR-A800 Series Variable Frequency Drive, and third-party field instruments that predate modern Ethernet-based protocols.

At the visualization layer, the FCU8-MU042-YS1 communicates with Mitsubishi GOT2000 Series HMI panels (e.g., GT2710-VTBA) via Ethernet, delivering live spindle speed, axis position, alarm status, and cycle time data to operators on the shop floor. For plant-wide monitoring, the Ethernet port connects to a SCADA gateway — such as the Mitsubishi MR-J4 Series communication interface or a third-party OPC-UA server — enabling data aggregation into supervisory platforms like Wonderware, Ignition, or Mitsubishi’s own GENESIS64 SCADA environment.

Edge intelligence is further enhanced when the FCU8-MU042-YS1 is paired with an industrial edge gateway (e.g., Mitsubishi MELIPC MI5000 Series), which performs local data preprocessing, anomaly detection, and buffered transmission to cloud-based MES or ERP systems. This architecture ensures that even during WAN interruptions, critical production data is preserved locally and synchronized once connectivity is restored. The complete data chain — from CNC spindle to enterprise dashboard — is made possible by the FCU8-MU042-YS1’s multi-protocol communication capability and its role as the network convergence point for the M800 Series ecosystem.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of multiple communication protocols across different generations of equipment. A typical machine shop may operate Mitsubishi M800 CNC controllers alongside older FANUC or Siemens units, each using proprietary or legacy protocols that cannot natively communicate with modern Ethernet-based SCADA systems. The result is data isolation — production metrics trapped in individual machines, invisible to plant managers and quality engineers who need real-time visibility to make informed decisions.

The FCU8-MU042-YS1 directly addresses this challenge. Its multi-protocol architecture — spanning CC-Link IE, PROFIBUS-DP, and Ethernet — allows it to act as a protocol gateway, translating between field-level device languages and upper-level network standards. This eliminates the need for costly third-party protocol converters and reduces integration complexity. Production data that was previously siloed within the CNC controller is now accessible in real time by SCADA operators, maintenance engineers, and remote diagnostic teams.

For facilities undergoing digital transformation, the FCU8-MU042-YS1 provides a scalable integration path. New production lines can be added to the CC-Link IE network without disrupting existing infrastructure, and the Ethernet interface supports simultaneous connections to multiple upper-level systems — MES, ERP, and cloud analytics platforms — through standard TCP/IP routing. Remote diagnostics capabilities allow Mitsubishi-certified engineers or in-house automation teams to monitor controller health, review alarm histories, and perform parameter adjustments without physical access to the machine, reducing unplanned downtime and accelerating fault resolution.

Every FCU8-MU042-YS1 unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying communication port integrity, protocol handshake performance, and firmware version compliance. Units are shipped with a warranty terms confirmed during quotation and full traceability documentation, ensuring confidence in both product authenticity and post-sale support.

Industrial Connectivity FAQ

Q1: What communication protocols does the FCU8-MU042-YS1 support, and is it compatible with third-party SCADA systems?
The FCU8-MU042-YS1 supports CC-Link IE Field Network, PROFIBUS-DP, and Ethernet (TCP/IP). Its Ethernet interface is compatible with OPC-UA and standard TCP/IP-based SCADA platforms including Ignition, Wonderware, and Citect, making it suitable for heterogeneous industrial network environments.

Q2: What is the typical communication latency, and how does the unit perform in electrically noisy factory environments?
CC-Link IE Field Network delivers deterministic cyclic communication with sub-millisecond latency at 1 Gbps, making it suitable for real-time motion control and high-speed data acquisition. The FCU8-MU042-YS1 is designed to meet industrial EMC standards, ensuring stable communication in environments with variable frequency drives, welding equipment, and high-current switching loads.

Q3: Can the FCU8-MU042-YS1 be integrated into an existing M800 Series system without replacing other network components?
Yes. The FCU8-MU042-YS1 is designed as a modular communication controller within the M800 Series architecture. It can be installed into existing systems alongside other FCU8-series modules without requiring network reconfiguration, provided the CC-Link IE master station (typically the MELSEC iQ-R PLC) has available slave station capacity.

Q4: What does the warranty terms confirmed during quotation cover, and what pre-shipment testing is performed?
All FCU8-MU042-YS1 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and communication failures. Pre-shipment testing includes protocol communication verification (CC-Link IE, PROFIBUS, Ethernet), port integrity checks, and firmware version validation. Units are shipped with test reports and full traceability documentation upon request.
