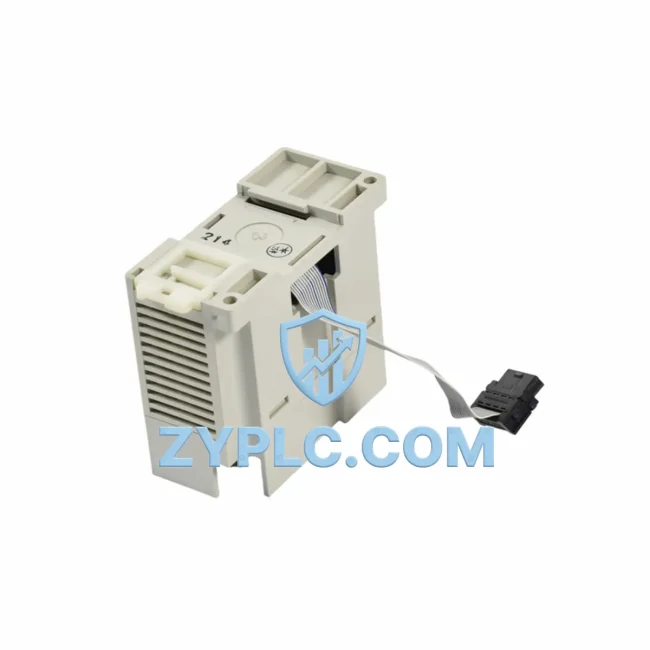

Mitsubishi FX0N-8EYT Industrial Network Interface for Melsec FX Systems

Mitsubishi FX0N-8EYT: Industrial Data Link and Smart Factory Connectivity for Melsec FX Systems

In modern smart factory environments, every component in the automation chain must contribute to seamless data flow, real-time responsiveness, and system-wide transparency. The Mitsubishi FX0N-8EYT transistor output expansion module is engineered to serve precisely this role within the Melsec FX control platform — acting as a critical output interface that bridges the PLC controller layer with field-level actuators, drives, and process equipment. Its integration into a layered automation architecture enables engineers to extend control reach without sacrificing communication speed, signal integrity, or system reliability.

The FX0N-8EYT provides 8 points of transistor (NPN sink) output, designed for high-frequency switching applications where relay contact wear would otherwise limit system longevity. Operating at 24VDC with a maximum load current of 0.5A per point, it is well-suited for driving solenoid valves, indicator lamps, servo enable signals, and variable frequency drive (VFD) command inputs. When paired with a host controller such as the Mitsubishi FX1N, FX2N, or FX3U series PLC, the FX0N-8EYT expands the base I/O count efficiently, allowing the control system to scale alongside production demands without requiring a full platform migration.

Network Communication Table

Connected Automation Data Flow

Understanding the FX0N-8EYT’s value requires viewing it within the complete data flow of a connected automation system. At the controller layer, a Mitsubishi FX3U-32MT/ES-A or FX2N-48MR serves as the central processing unit, executing ladder logic and managing I/O scan cycles. The FX0N-8EYT connects directly to this host via the FX expansion bus, extending the output capacity without introducing communication latency — the module is treated as native I/O by the CPU, ensuring deterministic response times critical for motion-sensitive applications.

For network-level integration, the FX2N-16CCL-M CC-Link master module enables the FX platform to participate in a CC-Link industrial network, connecting remote I/O stations, variable frequency drives such as the Mitsubishi FR-E740 series, and distributed sensor nodes across the production floor. This architecture allows the FX0N-8EYT’s output states to be monitored and commanded from a SCADA system or HMI — such as the Mitsubishi GOT2000 series GT2107 or GT2310 — providing operators with real-time visibility into actuator status, alarm conditions, and cycle counts.

At the field device layer, the FX0N-8EYT’s transistor outputs interface directly with servo amplifier enable signals, pneumatic valve solenoids, and conveyor motor contactors. In applications where analog feedback is required, the FX2N-2AD analog input module or FX3U-4AD-ADP can be paired alongside the FX0N-8EYT to create a complete closed-loop control segment — reading process variables from pressure transmitters or flow sensors while the transistor outputs command the corresponding control elements.

For remote diagnostics and edge connectivity, the FX3U-ENET-ADP Ethernet adapter or FX3U-232ADP-MB RS-232/Modbus adapter can be added to the FX3U host, enabling the entire I/O system — including the FX0N-8EYT’s output states — to be polled by a SCADA server or MES platform over standard industrial protocols. This transforms a traditionally isolated control segment into a fully transparent node within the smart factory data architecture, supporting predictive maintenance, OEE tracking, and remote commissioning workflows.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of control systems across different generations of hardware, communication protocols, and vendor platforms. The FX0N-8EYT, as part of the Melsec FX ecosystem, addresses this challenge by providing a standardized, well-documented expansion interface that integrates cleanly with both legacy FX0N installations and modern FX3U-based architectures.

In facilities where older FX0N or FX1S controllers manage discrete output functions, the FX0N-8EYT allows engineers to expand output capacity without replacing the host PLC — preserving existing program logic, wiring infrastructure, and operator familiarity while adding the I/O points needed for new production requirements. This approach significantly reduces commissioning time and capital expenditure compared to full system replacement.

For sites transitioning toward greater network transparency, the FX0N-8EYT’s compatibility with FX3U host controllers opens the path to CC-Link, Ethernet/IP, and Modbus TCP connectivity through the appropriate communication adapter modules. Production line data — including output cycle counts, fault states, and runtime hours — can be aggregated at the SCADA or MES level, eliminating the data silos that prevent effective production analysis and remote troubleshooting. Engineers can diagnose output faults, verify wiring integrity, and confirm actuator response from a central control room or remote workstation, reducing unplanned downtime and on-site service visits.

In process industries such as water treatment, chemical dosing, and food and beverage packaging, the FX0N-8EYT’s transistor outputs provide the switching speed and electrical isolation needed for reliable solenoid valve control, pump sequencing, and conveyor indexing — all within a compact form factor that fits standard control cabinet layouts. Its low power consumption and DIN rail mounting simplify panel design and reduce thermal management requirements in densely populated enclosures.

Industrial Connectivity FAQ

Q1: Is the FX0N-8EYT compatible with FX3U and FX3G series PLCs, and will it appear as native I/O?
Yes. The FX0N-8EYT is fully compatible with FX0N, FX1N, FX2N, FX3U, and FX3G host controllers. When connected via the FX expansion bus, the module’s 8 output points are mapped directly into the host PLC’s Y-device address space and are treated as native I/O — no special communication configuration or driver installation is required. The host CPU manages the module transparently within its standard I/O scan cycle.

Q2: Can the FX0N-8EYT’s output states be monitored over a network such as CC-Link or Ethernet?
Yes, indirectly. By adding a network communication adapter to the FX3U host — such as the FX2N-16CCL-M for CC-Link or the FX3U-ENET-ADP for Ethernet — the entire I/O system, including the FX0N-8EYT’s output states, becomes accessible to SCADA, HMI, and MES systems over the corresponding protocol. This enables real-time monitoring, remote diagnostics, and alarm management without modifying the expansion module itself.

Q3: What does the 12-Month Warranty cover, and how is it supported?
All FX0N-8EYT units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify output switching performance, bus communication integrity, and electrical isolation. In the event of a warranty claim, ZYPLC provides replacement or repair support with direct technical assistance. Contact our team at [email protected] or +86 19859288691 for warranty registration and support procedures.

Q4: How quickly can the FX0N-8EYT be sourced, and is expedited shipping available?
ZYPLC maintains ready stock of the FX0N-8EYT to support urgent project timelines and emergency replacement requirements. Standard international shipping is available to most regions, with expedited air freight options for time-critical orders. All units are shipped with full documentation including test records and export compliance certificates. Contact our sales team for current lead times and shipping options tailored to your location and project schedule.
