Mitsubishi FX2-48MR Industrial Network Interface for FX2 Systems

Mitsubishi FX2-48MR Industrial Network Interface for FX2 Systems: Bridging Field Devices and Smart Factory Data Flows

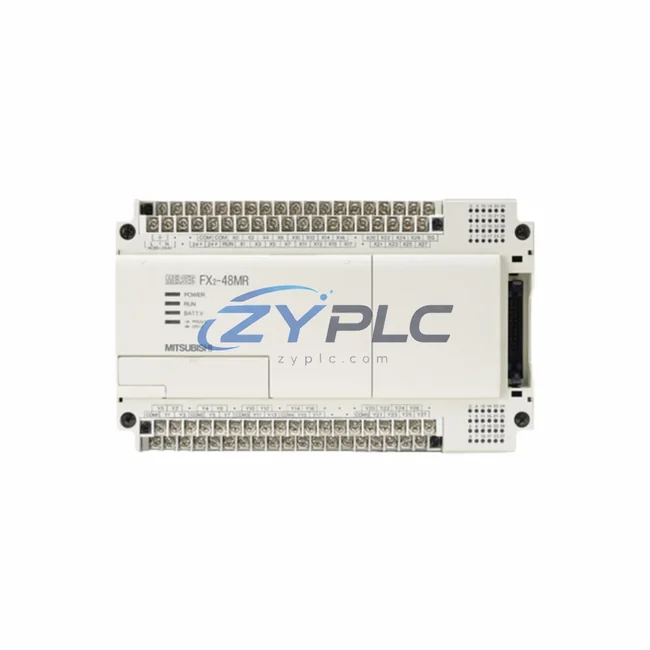

The Mitsubishi FX2-48MR is a compact yet powerful PLC I/O module from the MELSEC FX2 Series, engineered to serve as a critical node in industrial communication architectures. With 24 digital inputs and 24 relay outputs packed into a DIN-rail-mountable housing, the FX2-48MR delivers deterministic signal acquisition, reliable protocol handling, and seamless integration across multi-layer factory networks — from field-level sensors and actuators all the way up to SCADA supervisory systems and MES data platforms.

In modern smart factory deployments, the ability to collect, convert, and transmit real-time process data without latency or packet loss is non-negotiable. The FX2-48MR addresses this challenge by acting as a programmable gateway between field instrumentation and upper-level control systems. Whether you are managing a discrete manufacturing line, a process control loop, or a remote monitoring station, this module provides the communication backbone that keeps your automation architecture coherent and responsive.

Compatibility & Integration Notes

Connected Automation Data Flow

The FX2-48MR sits at the intersection of field-level signal acquisition and network-level data transmission. In a typical smart factory deployment, the data flow begins at the sensor layer — proximity switches, photoelectric sensors, pressure transmitters, and temperature probes — all feeding discrete signals into the FX2-48MR’s 24 input channels. The module’s onboard CPU processes these signals in real time, executing ladder logic programs that govern relay output commands to actuators, motor starters, solenoid valves, and conveyor drives.

For communication upward to supervisory systems, the FX2-48MR leverages expansion communication boards such as the FX2N-232-BD (RS-232C interface board) and the FX2N-485-BD (RS-485 multi-drop board), enabling Modbus RTU or MELSEC protocol data exchange with HMI panels and SCADA gateways. When the application demands higher I/O density, the FX2-64MR or FX2-32MR can be deployed in parallel cells, sharing the same communication backbone and programming environment.

For HMI connectivity, the Mitsubishi GOT2000 Series graphic operator terminals connect directly to the FX2-48MR via RS-422 or RS-232C, providing operators with real-time process visualization, alarm management, and trend logging without requiring an intermediate gateway device. In larger network topologies, the FX2N-CNV-IF conversion interface allows the FX2-48MR to connect to FX2N expansion modules, extending the I/O reach across the production floor.

At the network layer, Ethernet connectivity is achieved through dedicated communication modules such as the QJ71E71-100 Ethernet interface unit or the A1SJ71E71-B5-S3, which bridge the FX2 Series PLC data into TCP/IP networks for SCADA polling, OPC-UA data acquisition, and cloud-based analytics platforms. Variable frequency drives such as the Mitsubishi FR-E740 inverter series integrate into the same communication loop via RS-485, allowing the FX2-48MR to issue speed reference commands and read back drive status registers in real time — closing the feedback loop between motion control and process supervision.

Remote I/O expansion is supported through CC-Link adapter modules, enabling the FX2-48MR to act as a CC-Link master and distribute I/O points across geographically dispersed field panels — a critical capability for large-footprint production lines, water treatment facilities, and building automation systems where centralized wiring is impractical.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, PLCs, drives, and supervisory systems operate in communication silos, preventing plant managers from achieving true production transparency. The FX2-48MR directly addresses this problem through its multi-protocol communication architecture and flexible expansion capability.

Protocol fragmentation is resolved by pairing the FX2-48MR with the appropriate BD communication boards, allowing a single PLC platform to simultaneously support RS-232C point-to-point connections for legacy HMI panels and RS-485 multi-drop networks for Modbus-compatible instruments. This eliminates the need for standalone protocol converters and reduces network complexity.

Remote monitoring is enabled through SCADA integration: the FX2-48MR exposes its data registers and coil states to SCADA polling engines via MELSEC or Modbus RTU, allowing operators in control rooms to monitor machine status, cycle counts, alarm states, and energy consumption in real time — without physical presence on the production floor. Alarm feedback loops are configured directly in the PLC ladder program, triggering relay outputs for local annunciators while simultaneously writing alarm codes to communication registers readable by the SCADA host.

Production line transparency is further enhanced through data logging capabilities: the FX2-48MR can be programmed to timestamp events, count production cycles, and log fault conditions to connected HMI memory cards or upstream MES databases via the Ethernet gateway layer. System expansion is straightforward — the FX2 Series architecture supports incremental I/O addition through expansion units, and the communication infrastructure scales accordingly without requiring a complete system redesign.

All units supplied by ZYPLC undergo pre-shipment functional testing, verifying input response times, relay output switching, communication port integrity, and program execution — ensuring that every FX2-48MR arrives ready for immediate commissioning.

Industrial Connectivity FAQ

Q1: What communication protocols does the FX2-48MR support, and can it connect to Modbus RTU devices?
The FX2-48MR supports MELSEC protocol natively and can be extended to RS-232C and RS-485 communication via the FX2N-232-BD and FX2N-485-BD expansion boards respectively. With the RS-485 board installed, Modbus RTU communication is achievable through dedicated function blocks, enabling connectivity to a wide range of third-party instruments, drives, and remote I/O devices.

Q2: How is network stability ensured in multi-drop RS-485 configurations?
RS-485 multi-drop networks using the FX2N-485-BD board support up to 16 stations with proper termination resistors at both ends of the bus. Baud rates up to 19,200 bps are supported, and the FX2-48MR’s communication error detection registers allow the ladder program to monitor link status and trigger alarms or fallback routines if a communication timeout is detected — maintaining system stability even under adverse network conditions.

Q3: Can the FX2-48MR be integrated into an existing SCADA or HMI system without replacing the entire PLC platform?
Yes. The FX2-48MR is fully compatible with Mitsubishi GOT2000 HMI panels and supports MELSEC protocol polling from SCADA software packages including Wonderware, Ignition, and iFIX via serial or Ethernet gateway adapters. Existing ladder programs can be retained and extended, and the communication configuration is handled through GX Developer or GX Works2 programming software — minimizing integration time and engineering cost.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every FX2-48MR unit supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects, component failures, and communication port malfunctions under normal operating conditions. Pre-shipment testing includes verification of all 24 input channels, all 24 relay output contacts, RS-232C/RS-485 port continuity (where applicable), power supply regulation, and program execution integrity. A test report is available upon request for quality-critical procurement processes.
