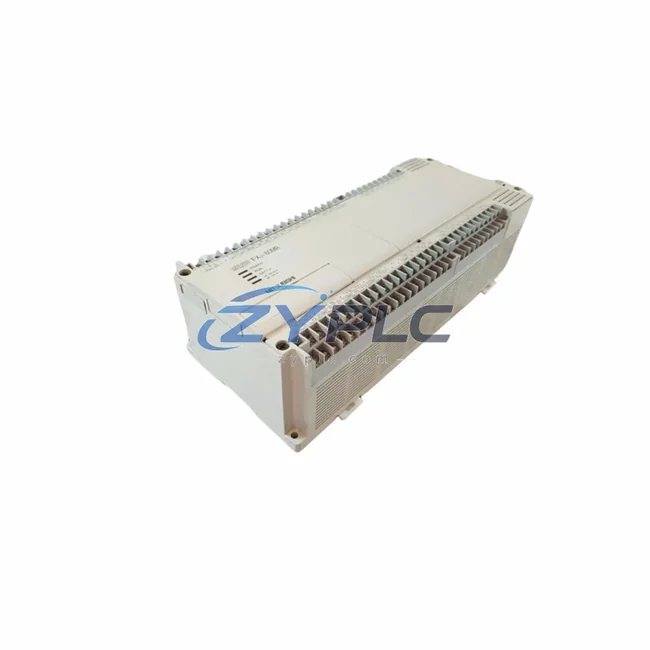

Mitsubishi FX2-80MR PLC Controller for FX2 Systems

Mitsubishi FX2-80MR Industrial Network Interface for FX2 Systems: Bridging Field Devices and Smart Factory Data Flows

The Mitsubishi FX2-80MR is an 80-point relay output programmable logic controller module engineered for the FX2 Series platform — one of Mitsubishi Electric’s most widely deployed compact PLC families in industrial automation. Designed to serve as a reliable industrial network interface, the FX2-80MR connects field-level devices, remote I/O stations, HMI panels, SCADA systems, and upper-level management networks into a unified, real-time data architecture. Whether you are modernizing a legacy production line or building a new smart factory cell, the FX2-80MR delivers the communication stability, protocol compatibility, and I/O density required for continuous industrial operation.

At its core, the FX2-80MR functions as the central controller and data gateway within the FX2 Series ecosystem. It collects discrete signals from sensors, proximity switches, and actuators across the production floor, processes control logic at high scan speeds, and transmits structured data upstream to SCADA platforms and MES systems. Its relay output architecture makes it particularly suited for applications requiring robust switching of inductive loads, motor starters, solenoid valves, and alarm circuits — all common in manufacturing, material handling, and process control environments.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the FX2-80MR sits at the heart of the field control layer, orchestrating data flow between multiple device classes. Signal acquisition begins at the sensor level — photoelectric sensors, inductive proximity switches, and temperature transmitters feed discrete and analog signals into the FX2-80MR’s input terminals. The controller processes these signals in real time, executing ladder logic programs stored in its internal program memory.

For upstream communication, the FX2-80MR interfaces with the FX2-232IF serial communication module, enabling RS-232C connectivity to barcode readers, weighing terminals, and operator panels. Where multi-drop RS-485 networks are required — such as connecting multiple FX2-48MR or FX2-64MR slave controllers along a production line — the FX2-485ADP adapter extends the communication bus efficiently, supporting Modbus RTU protocol for standardized device interoperability.

For CC-Link industrial network integration, the FX2N-16CCL-M CC-Link master module pairs with the FX2-80MR to manage remote I/O stations, distributed drives, and intelligent field devices across distances up to 1,200 meters. This architecture allows the FX2-80MR to supervise FR-E700 Series variable frequency drives for conveyor and pump speed control, receiving real-time feedback on motor current, frequency, and fault status without additional wiring overhead.

At the HMI layer, the GOT2000 Series graphic operator terminals connect directly to the FX2-80MR via RS-422 or Ethernet (through gateway modules), providing operators with live process visualization, alarm acknowledgment, and parameter adjustment capabilities. For SCADA integration, the FX2-80MR’s data is aggregated through an edge gateway running OPC-UA or Modbus TCP bridging software, feeding real-time production KPIs into platforms such as GENESIS64 or Wonderware InTouch. Remote diagnostic access is further enabled through FX3U-ENET-ADP Ethernet adapters, allowing engineering teams to monitor PLC status, upload/download programs, and review error logs without physical site visits.

The FX2-80MR also integrates seamlessly with A1SJ71UC24-R4 serial communication units in mixed Mitsubishi MELSEC-A and FX2 Series environments, enabling protocol bridging between legacy A-Series networks and modern FX2 installations. Power stability for the entire control panel is typically ensured by Mitsubishi PS-5 Series industrial power supplies, which provide regulated 24V DC to sensors, communication modules, and I/O expansion units.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, PLCs, drives, and management systems operate in disconnected silos, preventing real-time visibility and coordinated control. The FX2-80MR directly addresses this challenge through its multi-protocol communication architecture and broad expansion module ecosystem.

Protocol fragmentation is resolved by pairing the FX2-80MR with the appropriate communication adapters. Sites running legacy RS-232C equipment alongside modern RS-485 Modbus networks can bridge both protocols through the FX2-232IF and FX2-485ADP modules simultaneously, eliminating the need for separate protocol converters. For facilities requiring CC-Link integration, the FX2N-16CCL-M master module enables the FX2-80MR to act as a network coordinator, polling remote I/O stations and intelligent devices at deterministic cycle times — a critical requirement for synchronized production lines.

Remote monitoring and diagnostics are achieved through Ethernet gateway modules that expose the FX2-80MR’s internal registers and coil states to SCADA and MES platforms via OPC-DA or OPC-UA interfaces. This enables production line transparency: operators and engineers can view real-time cycle counts, fault histories, output states, and communication error logs from centralized control rooms or mobile devices, without interrupting ongoing production.

System scalability is another key advantage. The FX2-80MR supports expansion through the FX2N-CNV-BC bus converter, allowing FX2N-series I/O extension modules to be added as production requirements grow. This modular approach protects capital investment and simplifies future upgrades, making the FX2-80MR a long-term platform for smart factory development rather than a fixed-capacity solution.

Every FX2-80MR unit supplied by ZYPLC undergoes functional testing prior to shipment, verifying I/O operation, communication port integrity, and program execution. Units are shipped with a warranty terms confirmed during quotation covering manufacturing defects and operational failures under normal industrial use conditions. Global logistics via DHL and FedEx ensure reliable delivery to manufacturing sites worldwide.

Industrial Connectivity FAQ

Q1: What communication protocols does the FX2-80MR support natively, and can it connect to Modbus RTU networks?
The FX2-80MR supports RS-232C and RS-422/485 serial communication through optional adapter modules (FX2-232IF, FX2-485ADP). Modbus RTU master and slave functionality is achievable via these adapters, enabling the FX2-80MR to communicate with drives, sensors, and third-party devices on standard Modbus networks without additional protocol converters.

Q2: How does the FX2-80MR integrate with SCADA and HMI systems?
The FX2-80MR connects to GOT2000 and GOT1000 Series HMI panels via RS-422 direct link. For SCADA integration, Ethernet gateway modules or OPC server software bridge the FX2-80MR’s internal data to platforms such as GENESIS64, iFIX, and Wonderware InTouch, enabling real-time monitoring, alarm management, and historical data logging.

Q3: What is the network communication latency of the FX2-80MR in a CC-Link environment?
When paired with the FX2N-16CCL-M CC-Link master module, the FX2-80MR achieves deterministic communication cycles typically in the range of 2–10 milliseconds depending on the number of connected remote stations and data volume. This latency is well within the requirements of most discrete manufacturing and process control applications.

Q4: Does the FX2-80MR come with a warranty, and is pre-shipment testing performed?
Yes. All FX2-80MR units supplied by ZYPLC include a warranty terms confirmed during quotation covering manufacturing defects and operational failures under standard industrial conditions. Each unit is functionally tested before shipment to verify I/O performance, relay output switching, and communication port integrity, ensuring reliable operation upon installation.
