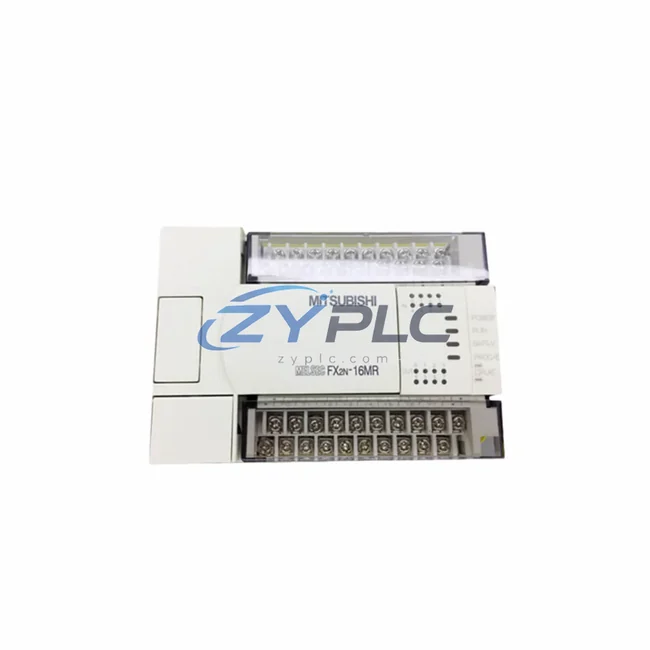

Mitsubishi FX2N-16MR-001 PLC Controller for FX2N Systems

Mitsubishi FX2N-16MR-001: Industrial Data Link and Smart Factory Connectivity

The Mitsubishi FX2N-16MR-001 is a compact, high-performance relay output programmable logic controller engineered for seamless integration within modern industrial communication architectures. As a core node in the FX2N series ecosystem, this unit bridges field-level devices and upper-level control systems, enabling real-time data exchange across the full automation chain — from signal acquisition at the sensor layer to supervisory monitoring in SCADA and MES environments. Whether deployed in discrete manufacturing, process control, or smart factory upgrade projects, the FX2N-16MR-001 delivers the protocol flexibility, network stability, and deterministic response times that industrial connectivity demands.

With 8 DC input points and 8 relay output points, the FX2N-16MR-001 supports a wide range of field devices including proximity sensors, photoelectric switches, solenoid valves, and motor contactors. Its onboard RS-422 programming port enables direct communication with Mitsubishi GX Developer and GX Works2 software environments, while optional communication expansion modules extend the unit’s reach into CC-Link, Modbus RTU, and RS-485 multi-drop network topologies. This makes the FX2N-16MR-001 a versatile gateway node capable of aggregating field data and forwarding it upstream to HMI panels, SCADA servers, and cloud-based analytics platforms.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the FX2N-16MR-001 sits at the intersection of field instrumentation and plant-wide communication networks. Signal acquisition begins at the sensor layer: inductive proximity sensors, photoelectric barriers, and temperature transmitters feed discrete and analog signals into the PLC’s input terminals. The FX2N-16MR-001 processes these inputs according to ladder logic programs developed in GX Works2, then drives relay outputs to control actuators, motor starters, and pneumatic valves on the production line.

For network expansion, the FX2N-32CCL CC-Link master/slave module connects the FX2N-16MR-001 into a CC-Link V2 network, enabling high-speed cyclic data exchange with remote I/O stations such as the FX2N-16EX input expansion module and FX2N-16EYR relay output expansion unit. This distributed I/O architecture allows a single FX2N-16MR-001 to supervise dozens of remote field points across a production cell without additional cabling runs to the main panel.

Serial communication is handled through the FX2N-485-BD RS-485 communication board, which enables Modbus RTU polling of Mitsubishi FR-E740 variable frequency drives controlling conveyor motors and pump systems. Drive speed references, fault codes, and energy consumption data are read cyclically and forwarded to the GOT2000 HMI panel via the RS-422 port, where operators monitor real-time process trends and acknowledge alarms. The GOT2000 also serves as a local data logger, buffering production counts and fault histories for upload to the plant SCADA server during scheduled synchronization windows.

At the network edge, an industrial Ethernet gateway — such as the Mitsubishi QJ71C24N serial communication module installed in a Q-series rack — bridges the FX2N-16MR-001’s RS-422 data stream into the plant’s Ethernet backbone. This allows the Q06HCPU-based supervisory controller to poll FX2N field data in real time, integrating it into the plant-wide MES database. Remote diagnostic access is provided through the SCADA OPC server, enabling maintenance engineers to interrogate PLC register values, force outputs for commissioning, and download updated programs without physical access to the panel.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation — legacy PLCs, drives, and sensors that speak incompatible communication languages, creating data silos that prevent plant-wide visibility. The FX2N-16MR-001 addresses this directly through its multi-protocol expansion architecture. By combining the FX2N-485-BD Modbus board with the FX2N-32CCL CC-Link module, a single FX2N-16MR-001 can simultaneously participate in two distinct network segments, acting as a protocol bridge between Modbus RTU field devices and a CC-Link supervisory network.

Remote monitoring is enabled through SCADA integration via OPC DA/UA servers that map FX2N data registers to standardized process variables accessible from any networked workstation. Production line transparency is achieved by linking the FX2N-16MR-001’s output status and counter values to GOT2000 HMI trend displays, giving shift supervisors real-time visibility into cycle times, reject counts, and equipment utilization rates. System expansion is straightforward: the FX2N series supports up to 8 special function modules and up to 128 I/O points via expansion units, allowing the FX2N-16MR-001 to grow alongside production requirements without replacing the base controller.

All units supplied by ZYPLC undergo pre-shipment functional testing, including I/O point verification, communication port integrity checks, and program upload/download validation. Each FX2N-16MR-001 is covered by a warranty terms confirmed during quotation from the date of shipment, with RFQ-confirmed sourcing available for same-week dispatch via DHL Express or FedEx International Priority.

Industrial Connectivity FAQ

Q: What is the communication latency of the FX2N-16MR-001 on a CC-Link network?
A: When connected via the FX2N-32CCL module on a CC-Link V2 network at 10 Mbps, cyclic refresh intervals are typically 1–5 ms per station, depending on the number of connected nodes and the data volume configured. This is well within the response time requirements of most discrete manufacturing and conveyor control applications.

Q: Is the FX2N-16MR-001 compatible with third-party SCADA systems using Modbus TCP?
A: The FX2N-16MR-001 natively supports Modbus RTU over RS-485 via the FX2N-485-BD expansion board. For Modbus TCP connectivity, an external serial-to-Ethernet gateway (such as a Moxa NPort or equivalent industrial converter) can bridge the RS-485 port to the plant Ethernet network, making the PLC accessible to any SCADA platform with a Modbus TCP driver, including Wonderware, Citect, and iFIX.

Q: Can the FX2N-16MR-001 be expanded to handle more I/O points without replacing the base unit?
A: Yes. The FX2N series supports expansion via the FX2N-16EX (16-point DC input) and FX2N-16EYR (16-point relay output) expansion modules, connected directly to the right side of the base unit. Up to 128 total I/O points can be configured, and up to 8 special function modules (analog, communication, positioning) can be added simultaneously, providing a scalable platform for growing automation requirements.

Q: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
A: Every FX2N-16MR-001 unit shipped by ZYPLC is tested prior to dispatch. Testing includes power-on verification, I/O point functional check (all 8 inputs and 8 relay outputs cycled), RS-422 communication port validation, and program upload/download confirmation using GX Works2. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions, with replacement or repair arranged within the warranty period at no additional cost to the buyer.
