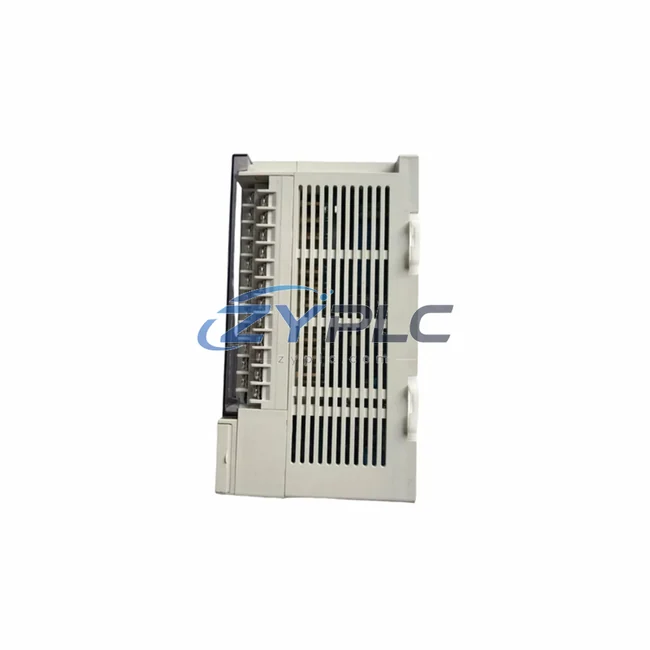

Mitsubishi FX2N-32MR-001 Industrial Network Interface for FX2N Systems

Mitsubishi FX2N-32MR-001 Industrial Network Interface: Bridging the Industrial Data Link in Smart Factory Environments

The Mitsubishi FX2N-32MR-001 is a high-performance compact PLC with integrated RS-422 communication capability, purpose-built for industrial network connectivity across FX2N Series automation systems. Designed to serve as a reliable communication gateway between field devices, PLC controllers, remote I/O modules, HMI panels, SCADA platforms, variable frequency drives, sensors, and upper-level management systems, the FX2N-32MR-001 delivers the data throughput and protocol stability that modern smart factories demand. With 32 I/O points (16 inputs / 16 relay outputs), this unit is engineered for demanding production environments where real-time data exchange, network uptime, and system scalability are non-negotiable.

In industrial automation, the integrity of the data link between the shop floor and the control room defines the efficiency of the entire operation. The FX2N-32MR-001 addresses this challenge by providing a robust RS-422 serial communication interface that supports high-speed, noise-resistant data transmission over extended cable runs — a critical advantage in large-scale manufacturing plants, process control facilities, and discrete automation lines.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the FX2N-32MR-001 sits at the heart of the field-level data network, orchestrating signal acquisition and protocol conversion across multiple device layers. At the sensor and actuator level, digital input signals from proximity switches, photoelectric sensors, and limit switches are captured directly through the unit’s 16 DI terminals. These signals are processed in real time by the FX2N CPU and transmitted upstream via the RS-422 port to connected HMI panels such as the Mitsubishi GOT2000 Series (GT2107, GT2310), enabling operators to monitor machine states, alarm conditions, and production counts from a centralized display.

For multi-node PLC network architectures, the FX2N-32MR-001 integrates seamlessly with the FX2N-16EX remote input expansion module and the FX2N-16EYR relay output expansion module, extending the I/O capacity of the base unit without additional communication overhead. When the application demands CC-Link field network connectivity — for example, linking the FX2N-32MR-001 to a Mitsubishi Q Series QJ61BT11N CC-Link master module — the FX2N-16CCL-M CC-Link master/local module can be added to the expansion bus, enabling deterministic, high-speed data exchange across the production line.

For Ethernet-based SCADA integration, the FX2N-ENET-ADP Ethernet adapter connects directly to the FX2N-32MR-001’s expansion port, bridging the RS-422 PLC environment to TCP/IP networks. This allows SCADA software platforms to poll real-time I/O status, recipe parameters, and alarm registers from the FX2N-32MR-001 at configurable scan intervals. In drive control applications, the FX2N-32MR-001 communicates with Mitsubishi FR-E700 Series variable frequency drives via RS-485 using the FX2N-485-BD communication board, enabling speed reference commands, fault readback, and energy monitoring to be handled entirely within the PLC program — eliminating the need for separate drive controllers or analog signal wiring.

Where remote I/O expansion over longer distances is required, the FX2N-32MR-001 can serve as a local station in a CC-Link network managed by a Mitsubishi Q03UDE CPU or L26CPU master controller, with the FX2N-32CCL CC-Link interface module handling the network handshake. This architecture supports up to 64 stations on a single CC-Link segment, making it ideal for distributed manufacturing cells, conveyor systems, and multi-zone process lines where centralized data aggregation and remote diagnostics are essential.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across legacy and modern equipment. A production line may simultaneously operate devices using RS-422, RS-485, Modbus RTU, CC-Link, and Ethernet/IP — each speaking a different language, creating data silos that prevent unified monitoring and control. The FX2N-32MR-001, combined with Mitsubishi’s FX2N expansion ecosystem, directly addresses this protocol heterogeneity.

By deploying the FX2N-232-BD RS-232C communication board or the FX2N-485-BD RS-485 board alongside the base unit, engineers can implement custom protocol libraries within the FX2N ladder program to communicate with third-party devices — barcode readers, weighing controllers, temperature regulators, and vision systems — using non-standard serial protocols. This eliminates the need for standalone protocol converters or OPC servers at the field level, reducing hardware cost and network latency.

For production line transparency, the FX2N-32MR-001 supports structured data logging through its internal data registers (D devices), which can be read cyclically by SCADA or MES systems via the Ethernet adapter. This enables real-time OEE (Overall Equipment Effectiveness) calculation, shift-based production reporting, and predictive maintenance alerts based on cycle count thresholds — all without modifying the core PLC control logic.

Remote diagnostics are supported through the RS-422 programming port, which allows Mitsubishi GX Works2 or GX Developer software to connect remotely via a modem or serial-to-Ethernet converter. Engineers can monitor program execution, force I/O states, modify data registers, and upload/download programs without physical access to the control panel — reducing mean time to repair (MTTR) and minimizing unplanned downtime in 24/7 production environments.

System expansion is straightforward: the FX2N-32MR-001 supports up to 8 expansion modules on its right-side bus, accommodating analog I/O modules (FX2N-4AD, FX2N-4DA), temperature input modules (FX2N-4AD-TC), and communication interface modules without requiring a new CPU or rewiring of existing field devices. This modularity protects the capital investment in existing FX2N infrastructure while enabling incremental capability upgrades as production requirements evolve.

Every FX2N-32MR-001 unit supplied by ZYPLC undergoes pre-shipment functional testing, including I/O point verification, communication port handshake testing, and program upload/download validation. Units are shipped with a warranty terms confirmed during quotation covering manufacturing defects and communication failures, with global express delivery via DHL or FedEx to ensure rapid deployment at your facility.

Industrial Connectivity FAQ

Q1: What is the maximum communication distance supported by the FX2N-32MR-001 RS-422 port?
The RS-422 interface on the FX2N-32MR-001 supports cable runs of up to 50 meters at 19,200 bps. For longer distances, a signal repeater or RS-422 to fiber optic converter can extend the link to several hundred meters without signal degradation, maintaining reliable data exchange between the PLC and connected HMI or SCADA systems.

Q2: Is the FX2N-32MR-001 compatible with Modbus RTU protocol for third-party device integration?
Yes. Using Mitsubishi’s FX2N series protocol library (ADPRW instruction), the FX2N-32MR-001 can communicate with Modbus RTU-compatible devices via the RS-485 port (FX2N-485-BD expansion board required). This enables integration with third-party drives, meters, and sensors without additional gateway hardware.

Q3: How does the FX2N-32MR-001 maintain network stability in electrically noisy industrial environments?
The RS-422 differential signaling architecture provides inherent common-mode noise rejection, making the FX2N-32MR-001 suitable for installation in close proximity to variable frequency drives, servo amplifiers, and high-current switching equipment. Proper cable shielding, grounding at a single point, and physical separation from power cables further enhance communication reliability in demanding EMI environments.

Q4: What warranty and after-sales support does ZYPLC provide for the FX2N-32MR-001?
All FX2N-32MR-001 units supplied by ZYPLC carry a warranty terms confirmed during quotation against manufacturing defects and communication failures. Pre-shipment testing is performed on every unit. In the event of a warranty claim, ZYPLC provides replacement or repair support with expedited shipping. Technical support for integration, programming, and network configuration is available via email and phone throughout the warranty period.
