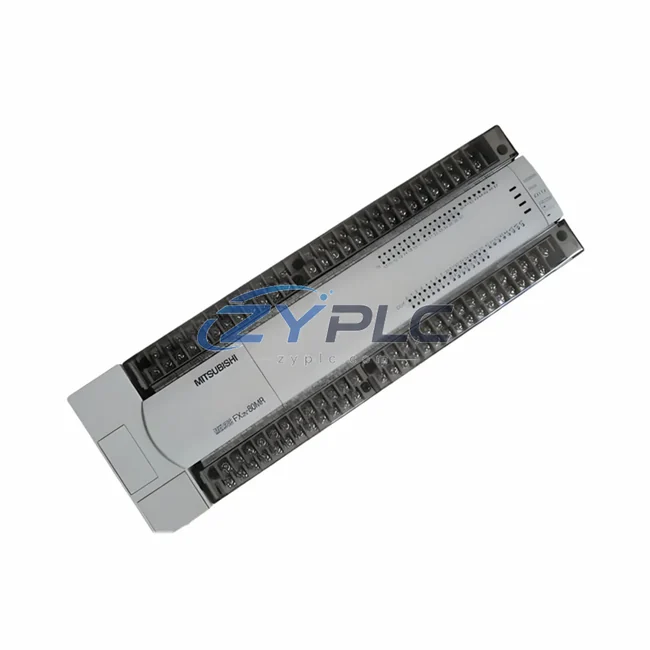

Mitsubishi FX2N-80MR-001 PLC FX2N Automation

Mitsubishi FX2N-80MR-001 PLC for FX2N Automation

The Mitsubishi FX2N-80MR-001 is a high-performance relay output programmable logic controller engineered for energy-conscious industrial environments. As part of the renowned FX2N series, this 80 I/O PLC delivers precise, low-latency control across demanding production lines — enabling factories to reduce idle operating load, tighten cycle times, and extend equipment service life without sacrificing throughput.

In modern manufacturing, energy efficiency is no longer a secondary concern — it is a core KPI. The FX2N-80MR-001 addresses this directly by offering deterministic scan-cycle execution, relay output switching with minimal power dissipation, and seamless integration with condition monitoring and drive control subsystems. Whether deployed in automotive assembly, food processing, packaging, or discrete parts manufacturing, this controller provides the processing backbone that keeps production lines running at optimal efficiency.

Product Specification Table

System Compatibility and Application

The FX2N-80MR-001 is most effective when deployed as part of a coordinated automation architecture that spans sensing, control, drive regulation, and data feedback. In a typical energy-optimized production cell, the FX2N-80MR-001 serves as the central logic controller, coordinating outputs to motor starters, solenoid valves, and relay-driven actuators while receiving real-time feedback from field sensors and upstream HMI commands.

For drive-level energy regulation, the FX2N-80MR-001 pairs naturally with the Mitsubishi FR-D720 compact inverter, which provides variable frequency control over three-phase induction motors. By modulating motor speed in response to PLC output signals, the FR-D720 eliminates the unplanned downtime associated with fixed-speed motor operation — a critical gain in applications such as conveyor speed matching, pump control, and fan regulation. For higher-power applications, the FR-A740 series inverter can be integrated via RS-485 communication, enabling closed-loop torque and speed feedback directly into the FX2N-80MR-001 scan cycle.

Expanding the I/O capacity of the FX2N-80MR-001 is straightforward using the FX2N-16EX input expansion module and the FX2N-16EYR relay output extension. These modules allow the base controller to interface with additional field devices — proximity sensors, limit switches, pressure transducers — without requiring a second PLC, thereby reducing system complexity and overall power consumption. For analog signal acquisition, the FX2N-4AD analog input module enables the controller to read 4–20mA or 0–10V signals from current transformers, temperature sensors, or flow meters, providing the raw data needed for operating load calculations within the PLC program itself.

On the human-machine interface side, the Mitsubishi GT1055-QSBD GOT1000 series HMI connects directly to the FX2N-80MR-001 via RS-422, providing operators with real-time visibility into cycle counts, output states, and alarm conditions. When combined with condition monitoring data from the FX2N-4AD, the HMI can display live power consumption trends, enabling line supervisors to identify inefficient operating windows and schedule maintenance before unplanned downtime escalates into equipment failure.

For networked factory environments, the FX2N-32CCL CC-Link communication module extends the FX2N-80MR-001 into a distributed I/O network, allowing it to exchange data with remote I/O stations, servo amplifiers such as the MR-J4-10A, and energy meters across the production floor. This architecture supports centralized maintenance planning without the latency penalties of polling-based communication, ensuring that the PLC’s control decisions are always based on current system state.

Where precise motion control is required alongside energy-efficient relay switching, the FX2N-80MR-001 can be supplemented with a dedicated motion controller such as the FX3U-20SSC-H, which handles high-speed pulse output for stepper and servo axes while the FX2N-80MR-001 manages the broader process logic. This division of labor keeps both controllers operating within their optimal performance envelopes, reducing unnecessary processing overhead and the associated power draw.

Maintenance and Replacement Notes

In practice, the operational stability delivered by the FX2N-80MR-001 come from three primary mechanisms: elimination of unnecessary output activation, optimized scan-cycle scheduling, and integration with variable-speed drives.

On packaging lines, for example, the FX2N-80MR-001 can be programmed to activate conveyor motors only when product is detected by upstream sensors, rather than running continuously at full speed. This demand-driven control strategy, implemented through the PLC’s internal timer and counter functions, can reduce conveyor motor load by Actual operating results depend on the installed system, load profile, and commissioning parameters. The relay output architecture of the FX2N-80MR-001 is particularly well-suited to this application, as relay contacts provide galvanic isolation between the control circuit and the motor starter, eliminating leakage current losses common in transistor output modules under resistive loads.

In machine tool and press applications, the FX2N-80MR-001’s fast scan time of 0.08 ms per 1k steps ensures that tool engagement and retraction sequences are executed with minimal dwell time, reducing the period during which hydraulic pumps or pneumatic compressors must maintain pressure without performing useful work. This tightening of the control loop directly translates to reduced compressor duty cycles and lower energy bills.

Predictive maintenance integration is another key maintenance planning pathway. By monitoring motor run-hours through the FX2N-80MR-001’s internal data registers and comparing them against baseline current draw values captured via the FX2N-4AD analog module, maintenance teams can identify motors operating outside their efficiency curves — a leading indicator of bearing wear or winding degradation — before they fail catastrophically. Scheduled maintenance based on this data prevents the energy spikes associated with degraded motor operation and eliminates unplanned downtime that disrupts production scheduling.

All units supplied by ZYPLC undergo full functional testing prior to shipment, including I/O point verification, program execution testing, and communication port validation. Each FX2N-80MR-001 is covered by a warranty terms confirmed during quotation, with stock maintained for shipment arranged after confirmation to minimize production line downtime.

Product Sourcing FAQ

Q: How does the FX2N-80MR-001 contribute to measurable operational stability on a production line?
A: The FX2N-80MR-001 enables demand-driven control logic that activates outputs only when required by process conditions. When paired with variable frequency drives such as the FR-D720, it can help restore stable operation when a compatible replacement is required.

Q: Is the FX2N-80MR-001 compatible with existing FX2N expansion modules and communication adapters?
A: Yes. The FX2N-80MR-001 is fully compatible with the FX2N expansion module range, including the FX2N-16EX, FX2N-16EYR, FX2N-4AD, FX2N-4DA, and FX2N-32CCL. It also supports RS-422 native communication and can be extended to RS-232C or RS-485 via the FX2N-232-BD or FX2N-485-BD communication boards.

Q: Can the FX2N-80MR-001 replace an older FX2N-64MR or FX2N-48MR without reprogramming?
A: In most cases, yes. The FX2N-80MR-001 uses the same instruction set and programming environment (GX Developer / GX Works2) as other FX2N series controllers. Existing ladder programs can be uploaded and reused with minor I/O address adjustments to account for the expanded point count. ZYPLC recommends a bench test of the migrated program before live deployment.

Q: What does the warranty terms confirmed during quotation cover, and what testing is performed before shipment?
A: Every FX2N-80MR-001 supplied by ZYPLC is tested for full I/O functionality, program execution, power supply regulation, and communication port integrity before dispatch. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with original packaging where available, and replacement or repair is arranged promptly in the event of a warranty claim.
