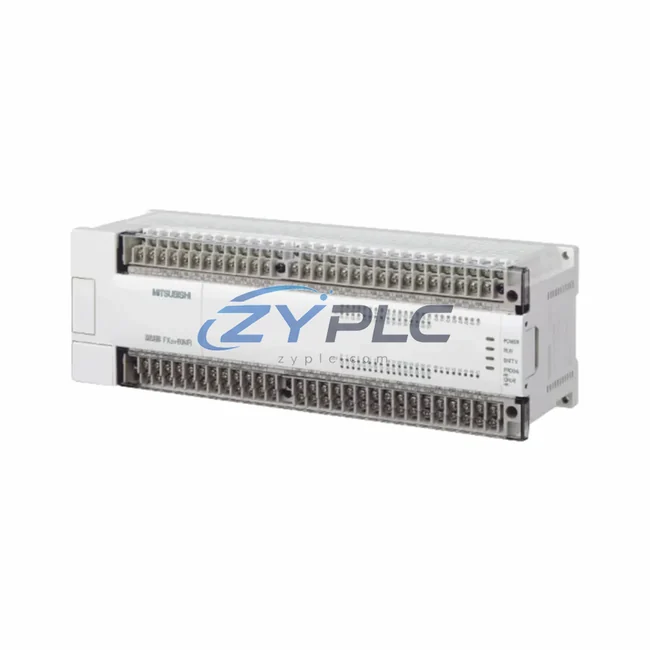

Mitsubishi FX2N-80MT-001 PLC Controller for FX2N Systems

Mitsubishi FX2N-80MT-001 Industrial Network Interface for FX2N Systems: Bridging the Industrial Data Link

In modern smart factory environments, seamless data flow between field devices and supervisory systems is no longer optional — it is the foundation of operational efficiency. The Mitsubishi FX2N-80MT-001 is a high-performance compact PLC from Mitsubishi Electric’s renowned FX2N Series, engineered to serve as a central node in industrial communication architectures. With 80 I/O points (48 inputs / 32 transistor outputs), this controller delivers the processing power, communication flexibility, and network integration capability demanded by today’s connected manufacturing environments.

From signal acquisition at the sensor level to real-time data exchange with SCADA platforms and HMI terminals, the FX2N-80MT-001 anchors the automation data chain. Its transistor output design supports high-speed pulse outputs up to 20 kHz, making it ideal for precision motion control, conveyor synchronization, and positioning applications where timing accuracy is critical.

Compatibility & Integration Notes

Connected Automation Data Flow

The FX2N-80MT-001 operates at the heart of a layered industrial communication architecture. At the field level, discrete sensors and proximity switches feed digital signals directly into the controller’s 48 input terminals. Analog process variables — temperature, pressure, flow — are captured through the FX0N-3A analog input/output module, which connects seamlessly to the FX2N expansion bus, converting real-world signals into structured data the PLC can process and act upon.

For distributed I/O across larger production lines, the FX2N-80MT-001 integrates with the FX2N-16EX input extension module, expanding the I/O footprint without requiring an additional controller. This modular approach allows engineers to scale the system incrementally as production demands grow.

Network communication is extended through the FX2N-CNV-BD conversion board, which enables RS-232C or RS-485 communication adapters to be mounted directly onto the PLC base unit. This opens the door to Modbus RTU connectivity with third-party drives, meters, and remote terminal units. When CC-Link network participation is required — for example, connecting to a Mitsubishi Q-Series master station — the FX2N-32CCL CC-Link interface module provides a direct, high-speed link into the CC-Link network, enabling the FX2N-80MT-001 to act as a remote device station exchanging cyclic data with the network master.

At the drive level, the Mitsubishi FR-D740 inverter communicates with the FX2N-80MT-001 via RS-485 Modbus RTU, allowing the PLC to issue speed commands, read drive status, and respond to fault conditions in real time. This closed-loop communication between controller and drive is essential for coordinated motion in conveyor systems, pump stations, and HVAC applications.

For operator interaction, the Mitsubishi GOT2000 series HMI connects to the FX2N-80MT-001 via RS-422, providing a graphical interface for process visualization, alarm acknowledgment, and parameter adjustment. Operators on the plant floor gain immediate visibility into machine states, cycle counts, and fault histories without requiring access to the programming environment.

At the supervisory level, Ethernet connectivity is achieved by pairing the FX2N-80MT-001 with the QJ71E71-100 Ethernet interface module in a hybrid architecture, or by using a dedicated protocol gateway to bridge the RS-422 port to TCP/IP. This enables the PLC’s data registers to be polled by SCADA systems — including Wonderware, Ignition, and Citect — for real-time trending, historical logging, and KPI dashboards. The FX2N-128MR-001 and FX2N-48MT-001 serve as companion controllers in multi-zone production lines, each managing a dedicated process segment while sharing data with the supervisory layer through the same communication backbone.

Programming and diagnostics are performed using GX Works2, Mitsubishi’s integrated engineering environment, which supports ladder diagram, structured text, and function block programming. Remote monitoring via GX Works2 over RS-422 or Ethernet allows maintenance engineers to diagnose faults, force outputs, and monitor data registers without physical access to the control panel — reducing mean time to repair and minimizing unplanned downtime.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and mixed-generation manufacturing environments is data isolation — the condition where machines, controllers, and systems operate in silos, unable to share information across protocol boundaries. The FX2N-80MT-001 directly addresses this challenge through its multi-protocol communication capability and broad ecosystem of compatible expansion modules.

Sites running a mix of older RS-232C devices alongside modern Ethernet-connected systems can use the FX2N-80MT-001 as a protocol bridge, collecting data from legacy equipment via serial communication and forwarding structured data to the SCADA layer via gateway devices. This eliminates the need for costly full-system replacements, allowing manufacturers to extract value from existing assets while progressively modernizing their communication infrastructure.

Production line transparency — the ability to see real-time machine status, output rates, and fault conditions from a central control room — is achieved by mapping PLC data registers to SCADA tags. With the FX2N-80MT-001, every input state, output command, timer value, and counter reading is accessible as a structured data point, ready for visualization, alarming, and historical analysis.

Remote diagnostics capability means that engineering teams can respond to alarms and investigate faults from off-site locations, reducing travel costs and accelerating response times. Combined with the controller’s robust design and Mitsubishi Electric’s proven reliability, the FX2N-80MT-001 supports continuous operation in demanding industrial environments — from automotive assembly to food processing, pharmaceutical manufacturing, and building automation.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing to verify I/O operation, communication port integrity, and program execution. Stock availability is maintained to support urgent project timelines, and all units are covered by a warranty terms confirmed during quotation from the date of shipment.

Industrial Connectivity FAQ

Q1: What communication protocols does the FX2N-80MT-001 support natively?
The FX2N-80MT-001 includes a built-in RS-422 programming and communication port. By adding the FX2N-CNV-BD conversion board and compatible BD adapters, the unit supports RS-232C and RS-485 communication, enabling Modbus RTU/ASCII connectivity with third-party devices. CC-Link network participation is available via the FX2N-32CCL module.

Q2: Can the FX2N-80MT-001 integrate with Ethernet-based SCADA systems?
Direct Ethernet connectivity requires an external protocol gateway or an Ethernet-capable communication module in a hybrid architecture. Once bridged to TCP/IP, the FX2N-80MT-001’s data registers are accessible to SCADA platforms including Ignition, Wonderware, and Citect via standard Mitsubishi communication drivers.

Q3: How many expansion modules can be connected, and what is the maximum I/O count?
The FX2N-80MT-001 supports up to 8 expansion units, extending the total I/O count to a maximum of 256 points. Compatible expansion modules include digital input/output units, analog modules such as the FX0N-3A, and communication interface modules.

Q4: What warranty and testing does ZYPLC provide with the FX2N-80MT-001?
All FX2N-80MT-001 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. Each unit undergoes pre-shipment functional testing covering I/O verification, communication port integrity, and basic program execution checks. Availability is confirmed via RFQ for shipment arranged after confirmation to support urgent project and maintenance requirements.
