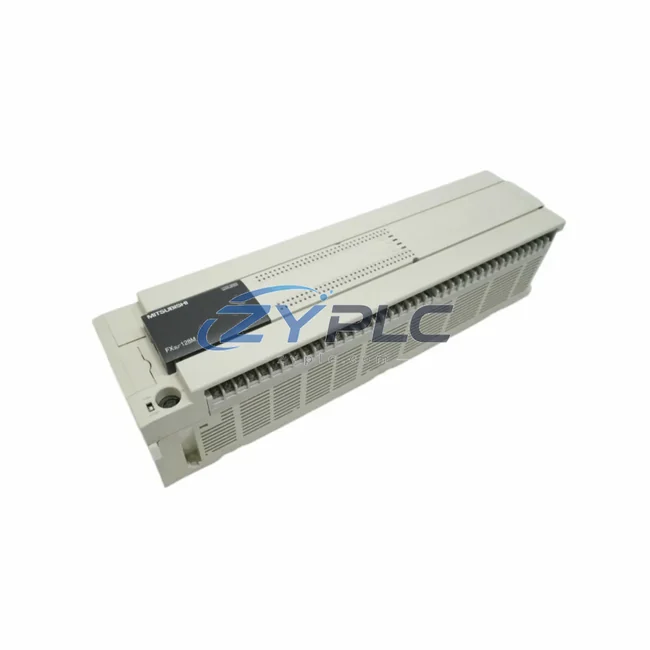

The Mitsubishi Electric FX3U-128MR/ESS is a high-performance compact PLC main unit engineered for seamless integration within the FX3U control system architecture. With 128 I/O points (64 inputs / 64 relay outputs) and Ethernet-embedded communication capability, this unit serves as the central processing backbone in multi-layer industrial automation environments. Whether deployed in standalone machine control or as part of a distributed control network, the FX3U-128MR/ESS delivers the processing speed, I/O density, and communication flexibility demanded by modern manufacturing and process industries.

In a complete FX3U-based control system, the FX3U-128MR/ESS occupies the controller layer — the decision-making core that coordinates signal acquisition from the I/O layer, executes ladder logic or structured text programs, and issues commands to the execution layer. Its embedded Ethernet port (10/100BASE-T) enables direct integration with SCADA systems, MES platforms, and HMI devices without requiring an additional communication module, reducing panel footprint and wiring complexity. This native connectivity positions the FX3U-128MR/ESS as a cost-effective yet capable controller for systems requiring real-time data exchange across the network layer.

The relay output configuration (MR) makes this unit particularly well-suited for applications involving direct load switching — motor starters, solenoid valves, indicator lamps, and contactor coils — where electrical isolation between the control circuit and the load circuit is essential. In layered automation architectures, this characteristic supports robust execution-layer interfacing without the need for intermediate relay modules in many standard applications.

Product Specification Table

System Compatibility Notes

The FX3U-128MR/ESS achieves its full potential when deployed within a coordinated FX3U system architecture. At the power layer, the unit operates on 100–240V AC input, and in applications requiring 24V DC field power distribution, the FX3U-1PSU-5V power supply unit or an external MEAN WELL DIN-rail PSU can be integrated to ensure stable field device power without loading the main CPU supply. For applications demanding higher I/O counts beyond the onboard 128 points, the FX3U-16EX (16-point digital input extension) and FX3U-16EYR (16-point relay output extension) modules connect directly to the main unit’s right-side expansion bus, extending the system’s I/O capacity up to 256 points while maintaining a unified programming environment.

Analog signal acquisition — critical in process control applications such as temperature regulation, pressure monitoring, and flow measurement — is handled by the FX3U-4AD analog input module and the FX3U-4DA analog output module. These modules interface directly with the FX3U-128MR/ESS via the special function module bus, with data exchanged through FROM/TO instructions in the ladder program. For thermocouple and RTD inputs, the FX3U-4AD-TC-ADP or FX3U-4AD-PT-ADP adapter modules provide direct sensor connectivity without signal conditioning hardware.

At the network and communication layer, the embedded Ethernet port of the FX3U-128MR/ESS supports MELSOFT connection, MC protocol, and socket communication, enabling direct data exchange with Mitsubishi GOT2000 series HMI panels (such as the GT2107-WTSD or GT2710-VTBA) over TCP/IP. For legacy RS-485 device networks — including inverters, servo drives, and smart sensors — the FX3U-485-BD communication board can be installed in the main unit’s left-side option slot, adding MODBUS RTU master/slave capability without consuming an expansion slot. In systems requiring CC-Link field network integration, the FX3U-16CCL-M CC-Link master module enables the FX3U-128MR/ESS to manage up to 64 remote I/O stations, significantly extending the physical reach of the control system across large plant floors.

For motion control applications, the FX3U-128MR/ESS supports high-speed pulse output (up to 100kHz on designated output points in transistor output variants; relay output units are used for logic control in conjunction with dedicated motion modules). The FX3U-20SSC-H SSCNET III/H motion control module can be added to coordinate servo amplifier axes — such as the Mitsubishi MR-J4 series — directly from the FX3U platform, enabling synchronized multi-axis positioning within the same control cabinet.

Industrial Application Notes

In manufacturing and assembly line automation, the FX3U-128MR/ESS is commonly deployed as the primary controller for conveyor systems, robotic cell interfaces, and quality inspection stations. Its 128 I/O capacity covers the typical signal density of a mid-size machine cell, while the embedded Ethernet port enables real-time production data upload to MES systems for OEE tracking and traceability.

In power distribution and electrical substation applications, the relay output configuration provides the electrical isolation required for switching protection relays, circuit breaker control coils, and alarm annunciator panels. The unit’s wide AC power supply range (100–240V) accommodates the varying supply conditions found in utility and industrial power environments.

In petrochemical and water treatment process plants, the FX3U-128MR/ESS handles discrete control of pump stations, valve manifolds, and chemical dosing systems. Its analog expansion capability (via FX3U-4AD/4DA modules) supports PID loop control for flow, level, and pressure regulation, while the Ethernet connectivity enables integration with plant-wide DCS or SCADA supervisory systems.

In mining and metallurgical environments, the unit’s operating temperature range (0–55°C) and IP20 rating — when housed in a sealed control cabinet with appropriate thermal management — support reliable operation in dusty, high-vibration conditions. The modular expansion architecture allows the control system to grow as process requirements evolve, without replacing the main CPU unit.

In packaging and material handling lines, the FX3U-128MR/ESS coordinates product counting, reject mechanisms, label applicators, and conveyor speed control through its high-density I/O and fast scan cycle, ensuring line throughput targets are consistently met.

Product Compatibility FAQ

Q1: Is the FX3U-128MR/ESS compatible with existing FX3U expansion modules and special function modules already installed in my control cabinet?
Yes. The FX3U-128MR/ESS is fully compatible with the complete range of FX3U-series extension and special function modules, including digital I/O extensions (FX3U-16EX, FX3U-16EYR), analog modules (FX3U-4AD, FX3U-4DA), communication boards (FX3U-485-BD, FX3U-232-BD), and motion modules (FX3U-20SSC-H). The unit supports up to 8 extension modules on the right-side expansion bus and up to 2 special function adapter modules on the left side, maintaining full backward compatibility with existing FX3U system configurations.

Q2: Can the FX3U-128MR/ESS be programmed and monitored remotely over Ethernet without additional hardware?
Yes. The embedded Ethernet port supports MELSOFT GX Works2/GX Works3 programming software connection over TCP/IP, enabling remote program upload/download, online monitoring, and device value modification without a dedicated programming cable. MC Protocol support also allows third-party SCADA and HMI systems to read and write PLC data registers directly over the network, simplifying system integration and reducing commissioning time on distributed plant layouts.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during the warranty period. Units are tested prior to shipment to verify I/O functionality, communication port operation, and power supply integrity. In the event of a warranty claim, customers should contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691 with the order reference and fault description. ZYPLC will arrange inspection, repair, or replacement as appropriate, minimizing system downtime and protecting the long-term reliability of your control architecture.
