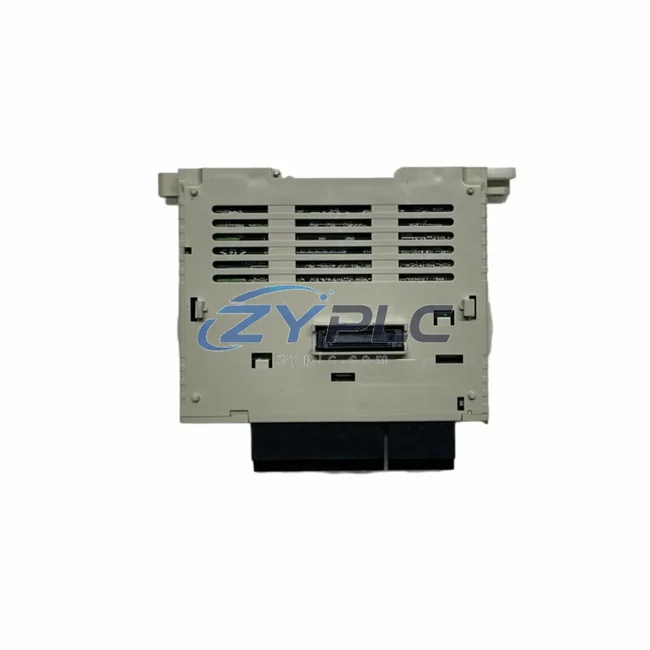

Mitsubishi FX3U-485ADP-MB Industrial Network Interface for FX3U Systems

Mitsubishi FX3U-485ADP-MB Industrial Network Interface for FX3U Systems: Bridging Field Devices to Smart Factory Data Links

The Mitsubishi FX3U-485ADP-MB is a dedicated RS-485 Modbus communication adapter engineered for the FX3U series programmable logic controller platform. Designed to serve as a high-reliability industrial network interface, this module enables seamless protocol conversion between Modbus RTU/ASCII and the native FX3U communication bus, making it an essential component in modern smart factory architectures where real-time data transparency, remote diagnostics, and multi-device connectivity are non-negotiable requirements.

In industrial environments where field devices, PLC controllers, remote I/O modules, HMI panels, SCADA systems, variable frequency drives, and intelligent sensors must exchange data continuously and without interruption, the FX3U-485ADP-MB acts as the critical link that unifies these layers into a coherent, monitored, and manageable network. Its compact form factor and direct adapter-mount design eliminate the need for additional wiring enclosures, reducing installation time and minimizing potential points of signal failure on the factory floor.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the FX3U-485ADP-MB sits at the heart of the field-level communication layer. Signal acquisition begins at the sensor and actuator level — temperature transmitters, pressure transducers, flow meters, and proximity switches feed analog and digital signals into the FX3U-32MT or FX3U-64MR main PLC unit. The FX3U-485ADP-MB then converts the PLC’s internal data registers into Modbus RTU frames, transmitting them across the RS-485 bus to upstream systems.

Variable frequency drives such as the Mitsubishi FR-E740 and FR-D740 series are commonly integrated via Modbus RTU through this adapter, allowing the FX3U PLC to issue speed reference commands, read output frequency, monitor fault codes, and execute emergency stop sequences — all over a single twisted-pair RS-485 cable. This eliminates the need for discrete analog wiring between the drive and controller, reducing noise susceptibility and simplifying cabinet layout.

At the HMI layer, panels such as the Mitsubishi GOT2000 GT2107 or third-party WEINVIEW and Weintek HMI terminals connect to the RS-485 network via Modbus protocol, reading real-time process values from the FX3U data registers and displaying them on operator screens. Alarm thresholds, production counters, and batch parameters can be written back to the PLC from the HMI, creating a bidirectional data link that supports both monitoring and control functions.

For remote I/O expansion, the FX3U-485ADP-MB enables the FX3U master to poll distributed I/O modules — such as Modbus-compatible remote terminal units — installed at distant points on the production line. This architecture supports cable runs of up to 500 meters, making it suitable for large-footprint facilities such as automotive assembly plants, food processing lines, and pharmaceutical manufacturing environments.

At the SCADA and MES integration layer, the RS-485 Modbus data collected by the FX3U is typically forwarded to an edge gateway — such as the Mitsubishi MELIPC MI5122-VW or a third-party IIoT gateway — which translates Modbus RTU frames into OPC-UA or MQTT packets for transmission to cloud-based SCADA platforms or on-premise MES servers. This multi-layer data flow — from field sensor through PLC, across the RS-485 bus via the FX3U-485ADP-MB, through the edge gateway, and into the SCADA dashboard — forms the backbone of real-time production visibility in Industry 4.0 environments.

Additionally, the FX3U-232ADP RS-232 adapter and FX3U-USB-BD board are frequently deployed alongside the FX3U-485ADP-MB in multi-port communication configurations, where the PLC must simultaneously maintain a Modbus RS-485 network, a local programming connection, and a serial link to a barcode reader or weighing terminal. The FX3U platform’s support for up to two special adapter boards makes such multi-protocol architectures straightforward to implement without additional communication processors.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and mixed-generation industrial facilities is protocol fragmentation — where PLCs, drives, sensors, and HMI systems from different manufacturers or different eras speak incompatible communication languages, creating data silos that prevent unified monitoring and control. The FX3U-485ADP-MB directly addresses this problem by providing a standardized Modbus RTU/ASCII interface that is universally supported across virtually all industrial device categories.

Where a production line previously required separate operator rounds to read local displays on individual drives, temperature controllers, and flow meters, the FX3U-485ADP-MB enables all of these devices to be polled automatically by the FX3U PLC on a configurable scan cycle. Their values are aggregated into the PLC’s data register map and made available to the SCADA system in real time, eliminating manual data collection and the transcription errors that accompany it.

Remote diagnostics capability is another critical benefit. Maintenance engineers can access live PLC register data — including drive fault codes, sensor out-of-range flags, and communication error counters — from the SCADA workstation or via a remote desktop connection to the edge gateway, without needing to be physically present at the machine. This capability is particularly valuable in multi-site manufacturing operations where a single engineering team must support equipment across several facilities.

Production line transparency is further enhanced by the ability to timestamp and log all Modbus transactions at the SCADA level, creating an auditable record of process values, alarm events, and operator interventions. This data supports OEE (Overall Equipment Effectiveness) analysis, predictive maintenance scheduling, and regulatory compliance reporting — all of which depend on reliable, continuous data flow from the field device layer upward through the FX3U-485ADP-MB to the enterprise systems above.

System scalability is built into the RS-485 architecture itself. As production capacity expands, additional Modbus slave devices — remote I/O modules, new drive units, additional sensor transmitters — can be added to the existing RS-485 bus without modifying the PLC hardware or rewiring the communication infrastructure. The FX3U-485ADP-MB supports up to 32 stations per segment, and multiple segments can be bridged using RS-485 repeaters to extend the network further.

Industrial Connectivity FAQ

Q1: What is the communication latency of the FX3U-485ADP-MB in a Modbus RTU network?
Communication latency depends on the configured baud rate, the number of slave devices being polled, and the register block sizes in each Modbus request. At 19,200 bps with 10 slave devices and typical register block sizes of 10–20 words, total scan cycle latency is generally in the range of 50–200 ms, which is well within the requirements of most process monitoring and drive control applications. For time-critical applications, increasing the baud rate to 57,600 or 115,200 bps significantly reduces per-frame transmission time.

Q2: Is the FX3U-485ADP-MB compatible with third-party Modbus devices from other manufacturers?
Yes. The FX3U-485ADP-MB implements the Modbus RTU and Modbus ASCII protocols according to the open Modbus specification, which means it is compatible with any device that correctly implements these protocols — regardless of manufacturer. This includes Schneider Electric drives, Omron temperature controllers, Yokogawa transmitters, and a wide range of third-party remote I/O modules and HMI panels. Protocol compatibility should always be verified against the slave device’s Modbus register map and supported function codes.

Q3: How does the FX3U-485ADP-MB maintain network stability in electrically noisy industrial environments?
The RS-485 differential signaling standard used by the FX3U-485ADP-MB provides inherent common-mode noise rejection, making it significantly more robust than single-ended RS-232 in environments with variable frequency drives, welding equipment, and high-current motor starters. For maximum noise immunity, Mitsubishi recommends using shielded twisted-pair cable with the shield grounded at one end, maintaining proper cable termination resistors at both ends of the RS-485 bus, and routing communication cables away from power cables in separate cable trays.

Q4: What warranty and quality assurance does ZYPLC provide for the FX3U-485ADP-MB?
All FX3U-485ADP-MB units supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify communication integrity, connector condition, and firmware version before dispatch. We maintain ready stock of FX3U series communication adapters to support urgent B2B procurement requirements, with DHL and FedEx express shipping available for international orders. For volume pricing, lead time confirmation, or technical pre-sales support, contact our team directly.
