Mitsubishi JY331BA8402F Industrial Network Interface for FX1N Systems

Mitsubishi JY331BA8402F – Industrial Data Link Power Board for FX1N Smart Factory Connectivity

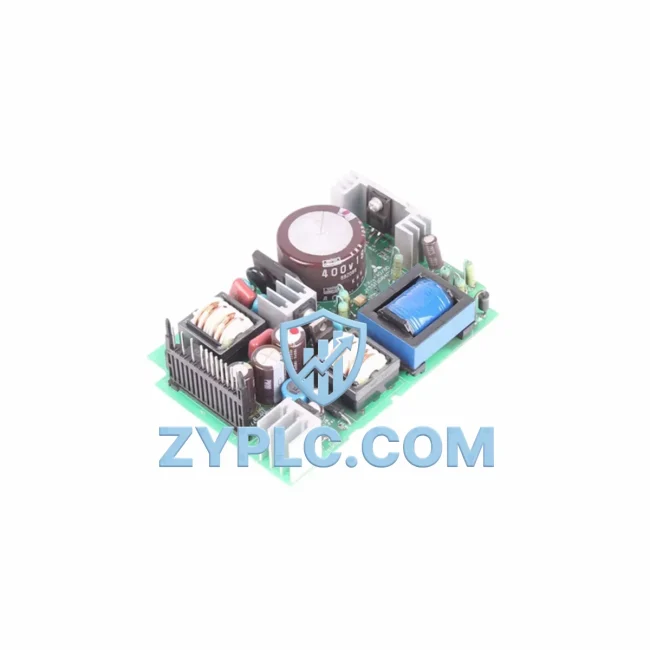

The Mitsubishi JY331BA8402F is an original power supply board engineered for the MELSEC FX1N-40MR and FX1N-60MR compact PLC platforms. As the backbone of stable power distribution within the FX1N controller chassis, this board ensures uninterrupted voltage regulation for the CPU, communication ports, and all connected I/O modules. In modern smart factory environments where real-time data exchange between field devices, supervisory systems, and enterprise networks is critical, the JY331BA8402F plays a foundational role by maintaining the electrical integrity that every communication protocol and data link depends upon.

Within a typical industrial automation architecture, the FX1N PLC serves as the primary controller responsible for executing sequential logic, managing discrete and analog I/O, and coordinating with upstream SCADA and HMI platforms. The JY331BA8402F power board guarantees that the FX1N base unit delivers consistent power to its built-in RS-422 communication port and any expansion boards installed in the system. Whether the facility relies on serial communication for legacy device polling or has upgraded to networked data acquisition, the reliability of the power supply stage directly impacts protocol stability, scan cycle consistency, and overall network uptime.

Network Communication Table

Connected Automation Data Flow

In a connected automation environment, the data journey begins at the sensor and actuator level. Field instruments such as proximity sensors, temperature probes, and pressure transmitters feed analog and digital signals into the FX1N-40MR or FX1N-60MR base unit. The JY331BA8402F power board ensures that the internal bus voltage remains within specification so that every input channel samples accurately and every output channel switches reliably.

Once signals are captured by the FX1N CPU, the controller processes ladder logic and structured programs to generate control outputs. For facilities that require serial connectivity, the FX1N-232-BD communication board can be installed directly into the FX1N base unit, enabling RS-232 data exchange with barcode readers, weigh scales, or standalone operator terminals. When RS-485 multi-drop networking is needed to connect multiple PLCs on a shared bus, the FX1N-485-BD adapter provides half-duplex communication across distances up to 500 meters, allowing several FX1N nodes to share process data without requiring a dedicated Ethernet infrastructure.

For more complex architectures, the FX1N-CNV-BD conversion adapter opens the path to special function modules from the FX2N family. By bridging the FX1N backplane to FX2N-compatible expansion blocks, engineers can integrate analog I/O modules, high-speed counters, or positioning controllers that would otherwise be unavailable on the compact FX1N platform. This expansion capability is essential when a production line evolves from simple relay replacement to multi-axis motion coordination or closed-loop process control.

At the supervisory level, a Mitsubishi GOT2000 series HMI panel connects to the FX1N PLC through RS-422 or RS-232 to provide real-time visualization of process variables, alarm annunciation, and recipe management. Operators can monitor conveyor speeds, tank levels, and machine states on a single touchscreen, while maintenance teams access diagnostic pages that display I/O status, communication error counters, and power supply health indicators — all of which depend on the stable voltage output maintained by the JY331BA8402F board.

When the automation scope extends to plant-wide monitoring, a SCADA gateway collects data from multiple FX1N stations and forwards it to a centralized server. In Mitsubishi-centric architectures, the QJ71E71-100 Ethernet communication module on an upper-level MELSEC iQ-R or Q-series PLC can act as the data concentrator, polling each FX1N node over a serial-to-Ethernet converter. This hierarchical topology enables remote diagnostics, historical trend analysis, and KPI dashboards that give plant managers full visibility into every production cell.

Variable frequency drives such as the Mitsubishi FR-D700 series are commonly paired with FX1N controllers for conveyor speed regulation, fan control, and pump management. The FX1N communicates speed references and run commands to the FR-D700 via RS-485, while the drive returns real-time frequency, current, and fault status. The JY331BA8402F power board’s role in maintaining clean DC rail voltages inside the PLC ensures that these serial transactions complete without CRC errors or timeout faults, which is especially important in high-noise environments near motor drives and welding equipment.

For facilities adopting CC-Link fieldbus networks, a dedicated CC-Link master module can be connected through the FX1N expansion interface to bring remote I/O stations, valve manifolds, and distributed sensor hubs onto a deterministic industrial network. CC-Link IE Field further extends this concept to Gigabit Ethernet speeds, enabling seamless integration with Mitsubishi MELSEC iQ-R controllers and MES-level data systems. Even in these advanced topologies, the FX1N base unit with its JY331BA8402F power board continues to serve as a reliable edge controller for localized machine logic.

Solving Data Isolation in Industrial Sites

Many legacy manufacturing facilities suffer from data isolation — individual machines operate as standalone islands with no standardized communication pathway to the rest of the plant. The Mitsubishi FX1N platform, powered by the JY331BA8402F board, addresses this challenge by offering multiple communication options that can be tailored to the existing infrastructure. A brownfield site with RS-232 serial devices can connect immediately, while a greenfield installation can leverage RS-485 multi-drop or CC-Link networking for a fully integrated architecture from day one.

Protocol inconsistency is another common barrier. When different machine builders use different communication standards, a protocol conversion gateway can translate between Modbus RTU, Mitsubishi MC Protocol, and other industrial standards, allowing the FX1N to participate in a unified data ecosystem. This interoperability eliminates manual data entry, reduces transcription errors, and enables real-time production tracking across heterogeneous equipment.

Remote monitoring and diagnostics become practical once the FX1N is connected to the plant network. Maintenance engineers can view PLC status, force I/O points for troubleshooting, and upload program changes from an engineering workstation located in a central control room — or even from a remote office via VPN. This capability reduces mean time to repair, minimizes unplanned downtime, and supports predictive maintenance strategies that rely on continuous data collection from every connected controller.

System expansion is straightforward with the FX1N architecture. Additional I/O points can be added through expansion blocks, and new communication channels can be introduced by installing adapter boards — all without replacing the base unit or its JY331BA8402F power board. This modularity protects the original investment and allows the automation system to grow in step with production requirements.

Industrial Connectivity FAQ

Q1: Does the JY331BA8402F affect communication stability on the FX1N PLC?
A: Yes. The power board regulates internal DC bus voltages that supply the CPU and communication circuits. A degraded or faulty power board can cause intermittent serial communication errors, watchdog timeouts, and scan cycle irregularities. Replacing an aging board with a new JY331BA8402F restores full electrical performance and eliminates power-related communication faults.

Q2: Is this board compatible with both FX1N-40MR and FX1N-60MR models?
A: The JY331BA8402F is designed for the FX1N-40MR and FX1N-60MR base units. It matches the PCB mounting points, connector pinouts, and voltage specifications of these models. Always verify the part number printed on the original board before ordering to confirm compatibility.

Q3: What communication protocols can the FX1N support with this power board installed?
A: With the JY331BA8402F providing stable power, the FX1N supports RS-422 natively and can be expanded to RS-232 (via FX1N-232-BD), RS-485 (via FX1N-485-BD), and CC-Link (via dedicated adapter modules). These protocols cover point-to-point, multi-drop, and fieldbus networking topologies used in smart factory environments.

Q4: Does ZYPLC test each board before shipping, and what warranty is provided?
A: Every JY331BA8402F board supplied by ZYPLC undergoes functional testing before dispatch, including voltage output verification and connector integrity checks. Each unit is covered by a 12-month warranty. Our inventory is maintained for fast fulfillment, and technical support is available at [email protected] or +86 19859288691.
