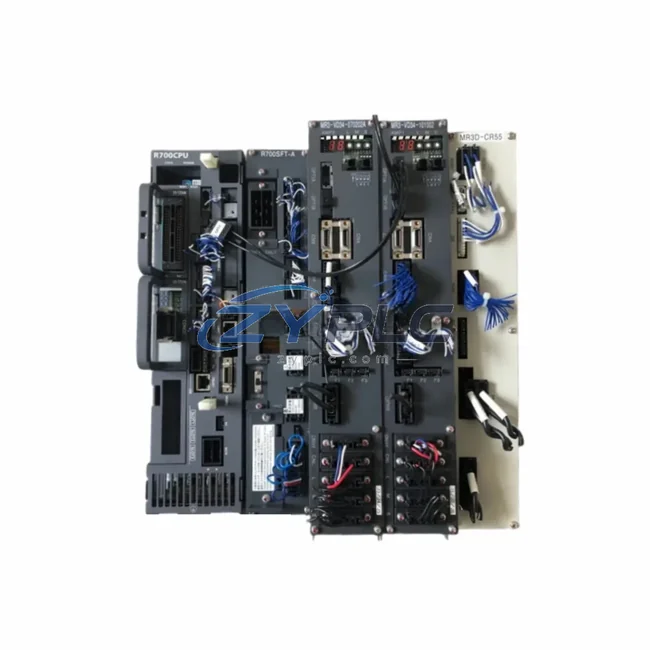

Mitsubishi MR3-VD34-070202A Servo Drive for MR3

Mitsubishi MR3-VD34-070202A Servo Drive for MR3

The Mitsubishi MR3-VD34-070202A is a precision servo drive engineered for seamless integration within the MR3 series control architecture. Designed to operate as a coordinated execution-layer component, this unit bridges the gap between high-level motion command logic and physical actuator response — delivering consistent torque control, position accuracy, and dynamic speed regulation across demanding industrial environments. Whether deployed in a standalone axis configuration or as part of a multi-axis synchronized system, the MR3-VD34-070202A is built to maintain system coherence from the control layer down to the mechanical load.

In modern industrial automation, the servo drive is not merely a power amplifier — it is a critical node in the signal flow hierarchy. The MR3-VD34-070202A receives motion commands from upstream controllers, processes encoder feedback in real time, and executes precise current regulation to the connected servo motor. Its role within the MR3 architecture ensures that system-level timing, fault propagation, and diagnostic data remain consistent across all connected axes, reducing commissioning time and improving long-term maintainability.

Product Specification Table

System Compatibility Notes

The MR3-VD34-070202A is designed to function as part of a layered automation architecture, not as an isolated component. At the control layer, it interfaces directly with Mitsubishi MELSEC Q-series CPUs such as the Q06HCPU or Q25HCPU, receiving synchronized motion commands via the SSCNET III high-speed optical network. This fiber-based communication backbone eliminates electromagnetic interference concerns in high-noise cabinet environments and supports deterministic cycle times essential for multi-axis coordination.

At the I/O layer, the drive works in conjunction with QX42 digital input modules and QY42P transistor output modules, enabling real-time interlock logic and safety signal routing without burdening the main CPU scan cycle. The Q61P power supply module provides stable 5VDC and 24VDC rails to the Q-series rack, ensuring that voltage fluctuations at the cabinet level do not propagate into the servo control loop.

For human-machine interface integration, the GOT2000 series GT2710-VTBA panel connects to the same MELSECNET/H or Ethernet backbone, giving operators real-time visibility into drive status, alarm history, and axis position data. This HMI layer is critical for reducing mean time to repair (MTTR) during unplanned stops, as technicians can isolate faults to a specific axis without disconnecting from the control network.

Network-layer connectivity is handled through the QJ71E71-100 Ethernet interface module, which allows the MR3-VD34-070202A’s host controller to participate in plant-wide SCADA or MES data exchange. For legacy integration scenarios, the QJ71C24N RS-232/422 communication module provides backward-compatible serial connectivity to older supervisory systems.

At the execution layer, the MR3-VD34-070202A is paired with Mitsubishi HG-SR series or HG-MR series servo motors, selected based on inertia ratio and load characteristics. The drive’s auto-tuning function adapts gain parameters to the connected motor-load combination, reducing manual commissioning effort and improving repeatability across identical machine builds. For multi-axis applications, the MR3-J3-T04 motion controller coordinates up to four axes simultaneously, maintaining phase synchronization across all connected MR3-VD34-070202A units.

Industrial Application Notes

In manufacturing environments — including automotive body welding lines, semiconductor wafer handling, and precision CNC machining centers — the MR3-VD34-070202A provides the axis-level execution fidelity required for tight positional tolerances and high-cycle repeatability. Its ability to switch between position, speed, and torque control modes without hardware reconfiguration makes it adaptable to both point-to-point transfer applications and continuous-path contouring tasks.

In process industries such as petrochemical blending, water treatment dosing systems, and power generation auxiliary drives, the drive’s analog torque reference input allows it to be commanded by legacy DCS systems without requiring a full network upgrade. This system integration capability extends the useful life of existing control infrastructure while introducing modern servo performance at the actuator level.

In packaging and palletizing lines, where machine cycle rates directly impact throughput, the MR3-VD34-070202A’s high-bandwidth current loop and low-latency SSCNET III communication ensure that axis settling time does not become a bottleneck. Coordinated with upstream vision systems and downstream conveyor drives, the servo maintains line synchronization even during product changeovers or speed ramp events.

For mining and metallurgical applications — including rolling mill positioning, ladle transfer cars, and ore crusher feed control — the drive’s robust thermal management and wide input voltage tolerance allow reliable operation in environments where power quality is inconsistent and ambient temperatures fluctuate significantly.

Product Compatibility FAQ

Q1: Is the MR3-VD34-070202A compatible with existing Mitsubishi Q-series PLC racks and SSCNET III motion networks?
Yes. The MR3-VD34-070202A is designed for direct integration with Mitsubishi Q-series and iQ-R series motion controllers via SSCNET III optical communication. It is compatible with the Q172DCPU and Q173DCPU motion CPUs, as well as the newer RD77MS series simple motion modules. No additional gateway hardware is required for standard axis configurations. For legacy SSCNET (non-III) networks, a protocol converter may be required — contact our technical team for compatibility confirmation.

Q2: What is the recommended commissioning procedure, and how does the drive handle parameter backup and restoration?
Commissioning is performed using Mitsubishi MR Configurator2 software, which provides guided auto-tuning, gain adjustment, and alarm diagnostics. All drive parameters are stored in non-volatile memory and can be exported to a PC for backup. In multi-axis systems, parameter sets can be batch-uploaded to replacement units, significantly reducing downtime during maintenance events. Our team performs pre-shipment functional testing on every unit, and a test report is available upon request.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims?
Every MR3-VD34-070202A shipped from ZYPLC is covered by a warranty terms confirmed during quotation from the date of delivery. The warranty covers manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions. Units are tested under load prior to shipment to verify output stage integrity, encoder interface function, and communication protocol compliance. To initiate a warranty claim, contact plc.sales@zyplc.com with your order reference and a description of the fault. Replacement or repair is processed within the agreed lead time, with priority handling available for production-critical situations.
