Mitsubishi RX312B BN634A589G53 Industrial Network Interface for MELSEC-RX Systems

Mitsubishi RX312B BN634A589G53 Industrial Network Interface for MELSEC-RX Systems: Bridging the Industrial Data Link

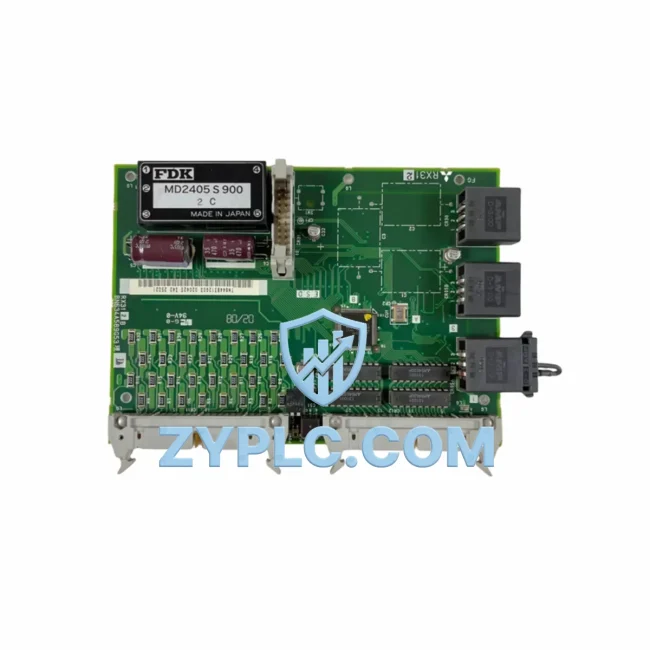

The Mitsubishi RX312B (BN634A589G53) is a high-density digital input/output board engineered for the MELSEC RX Series, purpose-built to serve as a critical node in industrial network architectures. In modern smart factory environments, the integrity of the data link between field devices and upper-level control systems determines the efficiency of the entire production line. The RX312B delivers that integrity — connecting sensors, actuators, and remote I/O terminals to PLC controllers and SCADA platforms with deterministic, low-latency signal transmission.

Designed to operate within Mitsubishi Electric’s MELSEC automation ecosystem, this I/O communication module supports seamless integration across CC-Link and MELSECNET/H network topologies, enabling real-time data exchange between distributed field nodes and centralized control logic. Whether deployed in CNC machining centers, robotic assembly lines, or process control panels, the RX312B ensures that every digital signal — from proximity sensors to limit switches — is accurately captured, transmitted, and acted upon without delay.

Network Communication Table

Connected Automation Data Flow

In a fully connected smart factory, the RX312B functions as a foundational I/O gateway within a layered automation architecture. At the field level, digital signals from inductive proximity sensors, photoelectric sensors, and limit switches are wired directly into the RX312B’s input terminals. These signals are then transmitted over the CC-Link network to the master station — typically a Mitsubishi Q06HCPU or Q12HCPU CPU module installed in a MELSEC-Q Series base unit — where the PLC ladder logic processes the data and issues control commands in real time.

For multi-axis CNC applications, the RX312B integrates directly with Mitsubishi CNC C70 and C80 controllers, providing the I/O expansion necessary to monitor spindle status, tool change signals, and door interlock conditions. The board communicates over the MELSEC-I/O Link bus, ensuring that the CNC controller receives accurate, cycle-synchronized feedback from every connected device.

At the network layer, a Mitsubishi QJ71E71-100 Ethernet interface module bridges the CC-Link field network to the plant’s TCP/IP backbone, enabling SCADA systems and MES platforms to poll real-time I/O status from the RX312B without interrupting the control cycle. This architecture supports integration with Mitsubishi GOT2000 Series HMI terminals, which display live I/O states, alarm conditions, and production counters sourced directly from the RX312B’s data registers.

For remote I/O expansion across large production floors, the RX312B works alongside Mitsubishi AJ65SBTB1-16D CC-Link remote I/O modules, extending the digital I/O network to distributed field panels without additional wiring runs to the main control cabinet. When variable-speed drives are part of the system — such as the Mitsubishi FR-A800 Series inverter — the CC-Link network carries both I/O status and drive parameter data over a single cable, reducing wiring complexity and improving diagnostic transparency.

Edge data aggregation is handled by an industrial edge gateway connected to the CC-Link master, which forwards timestamped I/O event logs to cloud-based analytics platforms for predictive maintenance analysis. This end-to-end data flow — from the RX312B’s field terminals through the PLC, HMI, SCADA, and edge gateway — forms the backbone of a transparent, data-driven production environment.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and mixed-generation factory environments is data isolation — the inability of different control systems, protocols, and network segments to share information in real time. The Mitsubishi RX312B directly addresses this challenge by serving as a standardized, protocol-native I/O interface within the MELSEC ecosystem.

In facilities where older MELSEC-A Series PLCs coexist with newer Q-Series or iQ-R Series controllers, the RX312B provides a compatible I/O expansion path that bridges generational gaps without requiring full system replacement. Its support for MELSECNET/H allows it to participate in token-ring network topologies where multiple CPU stations share I/O data across a deterministic, high-speed link — eliminating the polling delays that cause data latency in Ethernet-only architectures.

For remote monitoring and diagnostics, the RX312B’s I/O status is accessible through the MELSEC communication protocol (MC Protocol) via the QJ71E71-100 Ethernet module, allowing maintenance engineers to interrogate individual I/O points from a remote workstation or mobile device without physical access to the control panel. This capability is essential for reducing mean time to repair (MTTR) in facilities where control cabinets are located in hazardous or hard-to-reach areas.

Production line transparency is achieved by mapping the RX312B’s I/O data to SCADA tag databases, where every digital input and output is assigned a meaningful engineering tag — enabling operators to monitor machine states, detect abnormal conditions, and trigger alarm notifications in real time. System expansion is straightforward: additional RX312B boards can be added to the MELSEC base unit or connected as remote I/O stations on the CC-Link network, scaling the I/O count without modifying the existing control program structure.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing to verify I/O point integrity, communication bus response, and connector condition. Stock availability is maintained to support urgent replacement requirements, and all units are covered by a 12-month warranty from the date of shipment.

Industrial Connectivity FAQ

Q1: What communication protocols does the Mitsubishi RX312B support?
The RX312B is designed for use within Mitsubishi’s MELSEC I/O Link and CC-Link network architectures. When installed in a MELSEC-Q or CNC C70/C80 system, it communicates over the backplane bus and MELSEC-I/O Link, with upstream network connectivity provided by dedicated communication modules such as the QJ71BR11 (MELSECNET/H) or QJ71E71-100 (Ethernet/CC-Link IE).

Q2: How is network stability ensured in high-cycle production environments?
The RX312B uses a deterministic bus interface that synchronizes I/O data exchange with the PLC scan cycle, eliminating the jitter associated with asynchronous Ethernet polling. CC-Link’s token-passing protocol further ensures that every node on the network receives guaranteed access to the communication bus within a defined cycle time, maintaining stable data transmission even under high I/O update rates.

Q3: Can the RX312B be integrated with third-party SCADA or HMI systems?
Yes. While the RX312B is natively compatible with Mitsubishi GOT2000 HMI terminals and SCADA systems using the MC Protocol driver, third-party SCADA platforms (including Wonderware, Ignition, and Citect) can access I/O data through an Ethernet gateway module using the MELSEC Communication Protocol (MC Protocol) over TCP/IP. This enables seamless integration into multi-vendor automation environments.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
All RX312B units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing includes verification of all I/O points, communication bus response, and physical connector integrity. Units that do not pass functional testing are not shipped. Replacement or repair is provided at no additional cost within the warranty period.
