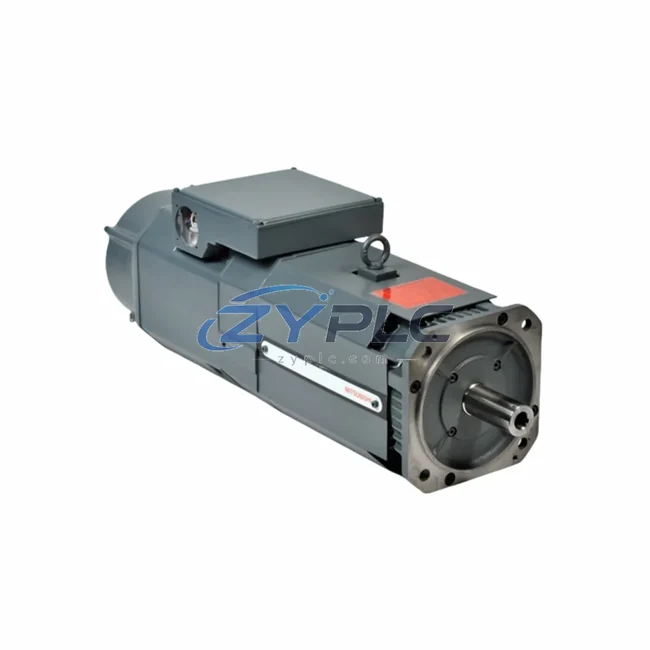

Mitsubishi SJ-PF7.5-01 AC Servo Motor for SJ-PF

Mitsubishi SJ-PF7.5-01 AC Servo Motor for SJ-PF

The Mitsubishi SJ-PF7.5-01 is a 7.5 kW AC servo motor engineered for seamless integration within Mitsubishi Electric’s SJ-PF series servo architecture. Rather than functioning as a standalone drive component, this motor is designed to operate as a coordinated node within a layered industrial control system — interfacing with servo amplifiers, motion controllers, I/O modules, communication gateways, and HMI platforms to deliver consistent, high-performance motion across demanding automation environments.

In modern industrial control architecture, every component must contribute to system-wide coherence. The SJ-PF7.5-01 fulfills this role at the execution layer, receiving precise torque and velocity commands from the servo amplifier, which in turn is orchestrated by the motion controller at the control layer. This vertical integration — from field device to supervisory system — is what defines a true system-compatible servo solution.

Product Specification Table

System Compatibility Notes

The SJ-PF7.5-01 achieves its full potential when deployed within a coordinated Mitsubishi Electric control architecture. At the control layer, a Mitsubishi Q06HCPU or Q26UDHCPU programmable logic controller manages the overall process logic and motion sequencing. The motion controller communicates with the servo amplifier — typically a MR-J4-700B or MR-J5-700G — via the high-speed SSCNET III/H optical network, which delivers deterministic, noise-immune command transmission at up to 150 Mbps.

At the power layer, a Mitsubishi Q61P or Q62P power supply module provides stable 5 VDC and 24 VDC rails to the CPU and I/O racks, ensuring that voltage fluctuations at the field level do not propagate into the control layer. The I/O layer is handled by QX42 digital input modules and QY42P transistor output modules mounted on a Q35B base unit, enabling the system to monitor limit switches, proximity sensors, and interlock signals in real time.

Network connectivity is managed through a QJ71E71-100 Ethernet interface module, which bridges the Q-series PLC to SCADA systems, MES platforms, and remote engineering workstations via TCP/IP. For applications requiring CC-Link IE Field integration, the QJ71LP21-25 MELSECNET/H module provides deterministic ring-topology communication across distributed I/O stations.

At the human-machine interface layer, a GOT2000 GT2710-VTBA graphic operator terminal provides real-time visualization of servo status, torque curves, alarm histories, and axis position data. This HMI connects directly to the Q-series CPU via RS-422 or Ethernet, enabling operators to monitor and adjust motion parameters without interrupting production cycles.

Together, these components — the SJ-PF7.5-01 motor, MR-J4/J5 amplifier, Q-series CPU, power supply, I/O modules, network gateway, and GOT2000 HMI — form a complete, validated control architecture that supports system integration across all system layers. This architecture approach reduces commissioning time, simplifies spare parts management, and ensures long-term firmware and hardware compatibility.

Industrial Application Notes

The SJ-PF7.5-01 is deployed across a wide range of industrial sectors where high-torque, precision servo motion is required within a structured control hierarchy.

In automotive manufacturing and metal forming applications, the motor drives press feeders, transfer units, and robotic joint axes where positional repeatability and dynamic response are critical. The SSCNET III/H communication backbone ensures that multi-axis synchronization is maintained even during rapid acceleration and deceleration cycles.

In power generation and electrical utilities, the SJ-PF7.5-01 is used in valve actuator systems and turbine governor test rigs, where the warranty terms confirmed during quotation and long-term parts availability provide the reliability assurance required for critical infrastructure applications.

In petrochemical and process industries, the motor operates within explosion-risk-adjacent environments (with appropriate enclosure), driving pump skids, compressor auxiliaries, and agitator drives. The IP65 protection rating and Class F insulation support continuous duty in high-ambient-temperature process areas.

In water treatment and municipal infrastructure, the SJ-PF7.5-01 controls dosing pump drives and filter backwash actuators, where the ability to integrate with CC-Link IE Field networks allows centralized SCADA monitoring of distributed pump stations.

In mining and mineral processing, the motor is applied to conveyor positioning systems and ore sampling mechanisms, where robust construction and the availability of matched spare amplifiers from the MR-J4/J5 family reduce unplanned downtime risk.

In packaging and food processing lines, the SJ-PF7.5-01 drives form-fill-seal axes, labeling heads, and case erector mechanisms, where the GOT2000 HMI integration enables recipe-based parameter switching without manual re-tuning.

Product Compatibility FAQ

Q1: Which servo amplifier is compatible with the SJ-PF7.5-01, and how does it integrate into a Q-series PLC architecture?
The SJ-PF7.5-01 is designed to pair with the MR-J4-700B or MR-J5-700G servo amplifier. These amplifiers connect to the Q-series motion CPU (e.g., Q173DSCPU or Q06HCPU with motion module) via SSCNET III/H optical fiber, providing a fully closed-loop, high-speed servo network. The amplifier handles current loop control locally, while the PLC manages position and velocity profiles, enabling deterministic multi-axis coordination without burdening the main CPU scan cycle.

Q2: Can the SJ-PF7.5-01 be used in a redundant control architecture, and what provisions support long-term maintainability?
While the SJ-PF7.5-01 itself is a single-axis motor, system-level redundancy can be achieved by pairing it with a hot-standby Q-series CPU configuration (e.g., Q12PRHCPU redundant system) and maintaining a matched spare amplifier and motor in inventory. The warranty terms confirmed during quotation covers the motor from the date of shipment, and Mitsubishi Electric’s long-term parts supply policy for the SJ-PF series supports maintenance planning over extended equipment lifecycles. ZYPLC maintains availability subject to RFQ confirmation of SJ-PF series motors and MR-J4/J5 amplifiers to support rapid replacement requirements.

Q3: What commissioning steps are required when integrating the SJ-PF7.5-01 into an existing Mitsubishi control system?
Commissioning requires setting the motor series and capacity parameters in the paired MR-J4/J5 amplifier using MR Configurator2 software, verifying encoder cable wiring and shield grounding, and performing auto-tuning to match the servo gain to the mechanical load inertia ratio. The Q-series motion CPU axis parameters must be configured to match the amplifier’s electronic gear ratio and position units. ZYPLC provides pre-shipment functional testing on all SJ-PF7.5-01 units, reducing on-site commissioning risk and supporting faster system startup.
