Mitsubishi YZ311B BU778A011G53A CNC Motherboard for BU778A Systems

Mitsubishi YZ311B BU778A011G53A: Industrial Data Link for Smart Factory Connectivity

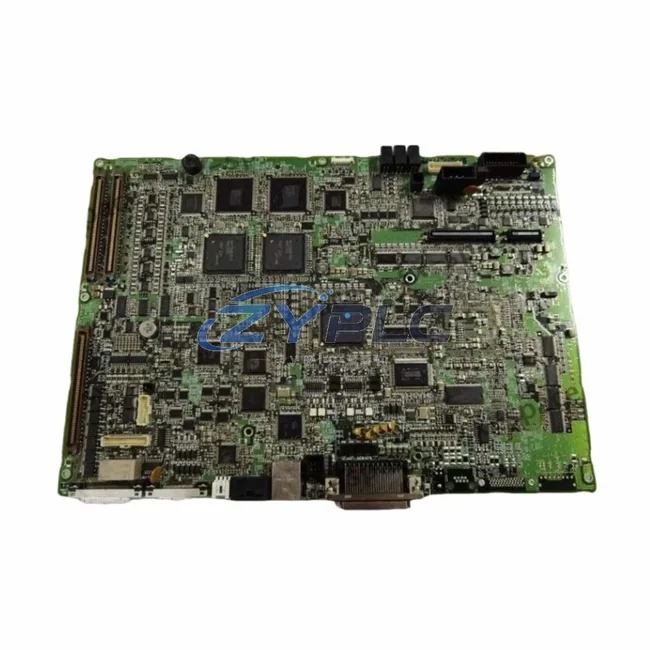

The Mitsubishi YZ311B BU778A011G53A is a high-performance CNC motherboard engineered for the BU778A series, serving as the central communication and processing node within complex industrial automation architectures. In modern smart factory environments, where seamless data flow between field devices, controllers, and supervisory systems is non-negotiable, this board delivers the processing backbone that keeps production lines transparent, responsive, and continuously connected.

From the moment a signal is captured at a proximity sensor or encoder on the machine tool, the YZ311B BU778A011G53A manages the real-time data pathway that carries that signal through the CNC controller, across the industrial network, and up to SCADA and MES platforms. Its role in the data chain is not passive — it actively coordinates protocol handling, axis interpolation data, spindle feedback, and I/O status reporting, ensuring that every upstream system receives accurate, timestamped process data without latency-induced errors.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory cell, the YZ311B BU778A011G53A operates at the heart of the data flow architecture. At the field level, rotary encoders, linear scales, and tool-length sensors feed position and velocity data directly into the CNC controller’s servo amplifier loop — components such as the Mitsubishi MDS-D2 series servo amplifiers communicate with the motherboard via high-speed serial links, delivering sub-millisecond feedback that the YZ311B BU778A011G53A processes for real-time axis interpolation.

The board’s backplane interface connects to the BU778A series expansion modules, including digital I/O units and analog input cards, which aggregate signals from coolant flow sensors, hydraulic pressure transducers, and pneumatic valve feedback. These signals are consolidated by the motherboard and made available to the CNC’s internal PLC function — a ladder-logic engine compatible with Mitsubishi MELSEC Q-series and iQ-R series programming conventions — enabling machine-level interlocking and sequence control without requiring an external PLC chassis.

For network-level integration, the YZ311B BU778A011G53A supports upward communication to CC-Link IE Field master stations, where Mitsubishi QJ71GF11-T2 network interface modules or equivalent CC-Link IE Field master cards on iQ-R series PLCs can poll the CNC for production counts, alarm codes, and program numbers at cyclic intervals. This data stream feeds directly into GOT2000 series HMI terminals on the shop floor, giving operators a live view of spindle load, feed override status, and active tool compensation values.

At the SCADA layer, an edge gateway — such as a Mitsubishi MELIPC MI5122-VW or a third-party OPC-UA server connected via Ethernet — collects the aggregated data from the CC-Link IE Field network and forwards it to MES and ERP platforms. Remote diagnostic tools can then query the YZ311B BU778A011G53A’s status registers over this path, enabling predictive maintenance alerts based on servo error accumulation, thermal drift in the spindle drive, or abnormal cycle time deviations. Variable frequency drives controlling auxiliary axes or conveyor systems adjacent to the machining cell can also report their fault codes through the same CC-Link segment, creating a unified alarm management view in the SCADA console.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy CNC environments is protocol fragmentation. Older machine tools may communicate exclusively over RS-232C or RS-422 serial links, while newer automation infrastructure demands CC-Link IE Field or Ethernet-based connectivity. The YZ311B BU778A011G53A addresses this directly: its multi-protocol serial interface supports both RS-232C and RS-422 physical layers, allowing it to bridge legacy peripheral devices — such as tool presetter units, barcode readers for pallet identification, or older FANUC-compatible DNC systems — into the modern network fabric without requiring hardware replacement of the peripheral devices themselves.

Data silos between the CNC layer and the plant-level SCADA system are eliminated by the board’s structured data output, which organizes machine state, alarm history, and production metrics into register maps that CC-Link IE Field master stations can read cyclically. This means that production managers no longer need to rely on manual data entry or end-of-shift reports to understand machine utilization — the YZ311B BU778A011G53A makes that data available in real time, enabling OEE dashboards to reflect actual machine status with minimal latency.

For facilities undergoing phased digital transformation, the board’s compatibility with the BU778A series expansion architecture means that additional communication modules can be added to the backplane as connectivity requirements grow — whether that means adding a PROFIBUS-DP gateway card for integration with third-party robot controllers, or an additional Ethernet port for direct connection to a plant historian. This modularity protects the capital investment in the CNC platform while allowing the network architecture to evolve alongside the factory’s digitalization roadmap.

Remote monitoring and diagnostics are further supported through the board’s alarm register structure, which logs fault codes with timestamps accessible via the CC-Link IE Field network. Maintenance teams can query these registers from a central control room or via a mobile HMI, reducing mean time to repair by eliminating the need for on-site visual inspection as the first step in fault diagnosis. Combined with the warranty terms confirmed during quotation and pre-shipment functional testing performed on every unit, the YZ311B BU778A011G53A delivers the reliability and serviceability that industrial connectivity demands.

Industrial Connectivity FAQ

Q1: What communication protocols does the Mitsubishi YZ311B BU778A011G53A support, and is it compatible with CC-Link IE Field networks?
The YZ311B BU778A011G53A supports MELSEC serial protocols, RS-232C, and RS-422 at the device level, and integrates with CC-Link and CC-Link IE Field networks through the BU778A series backplane and compatible network interface modules. It is designed to operate within Mitsubishi’s broader CC-Link IE Field architecture, making it compatible with QJ71GF11-T2 master stations and iQ-R series CC-Link IE Field master modules.

Q2: How does this board handle real-time data transmission without introducing latency into the CNC control loop?
The YZ311B BU778A011G53A processes axis feedback, I/O status, and spindle data on dedicated internal buses that are isolated from the network communication layer. This architecture ensures that real-time control functions — interpolation, servo loop closure, and sequence interlocking — are not affected by network polling cycles. Network data is updated cyclically in shared registers, which upstream systems read asynchronously without interrupting the control loop.

Q3: Can the YZ311B BU778A011G53A be integrated with SCADA and HMI systems from other vendors?
Yes. While the board is natively optimized for Mitsubishi GOT2000 HMI terminals and MELSEC SCADA environments, its CC-Link IE Field compatibility allows third-party SCADA systems with OPC-UA or CC-Link IE Field drivers to access its data registers. Edge gateways with protocol translation capability can further extend connectivity to MQTT-based IoT platforms or ERP systems.

Q4: What does the warranty terms confirmed during quotation cover, and is pre-shipment testing performed?
Every YZ311B BU778A011G53A unit undergoes functional verification testing prior to shipment, covering power-on initialization, communication interface continuity, and register read/write operations. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Expedited replacement support is available, and our technical team can assist with installation verification and network configuration guidance remotely.
