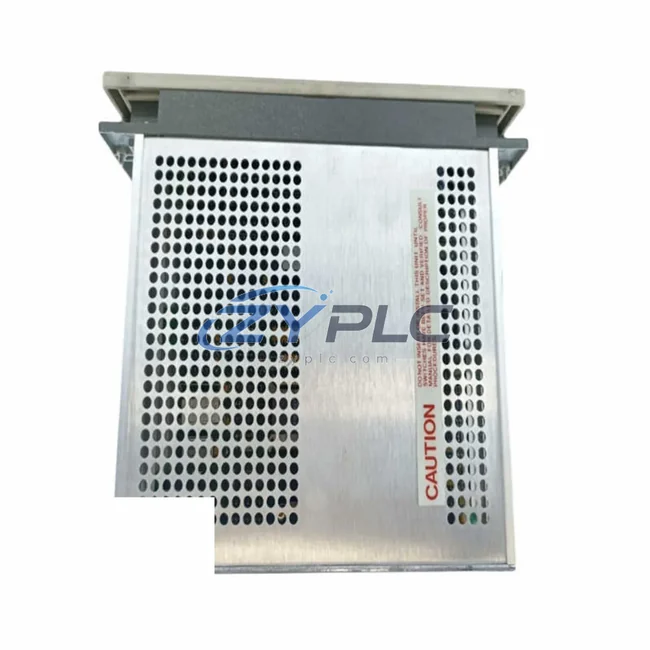

Modicon AS-J890-101 I/O Processor for 984 Series Systems

Modicon AS-J890-101 Industrial Network Interface for 984 Series Systems: Powering the Smart Factory Data Link

The Modicon AS-J890-101 is a high-performance I/O Processor designed for the Modicon 984 Series programmable logic controller platform — one of the most widely deployed industrial control architectures in process automation, discrete manufacturing, and critical infrastructure. As factories evolve toward connected, data-driven operations, the AS-J890-101 serves as a foundational node in the industrial data chain, bridging field-level devices with supervisory control systems through reliable, deterministic communication.

Whether you are integrating legacy Modicon 984 controllers into a modern SCADA environment, expanding remote I/O capacity across a distributed plant floor, or replacing a failed processor to restore production continuity, the AS-J890-101 delivers the signal integrity, protocol compatibility, and system stability that industrial engineers demand. Backed by a warranty terms confirmed during quotation and available from availability subject to RFQ confirmation, this unit ships with full pre-shipment functional testing.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the AS-J890-101 sits at the heart of the I/O processing layer, managing the real-time exchange of discrete and analog signals between field instruments and the Modicon 984 CPU. The data flow begins at the sensor and actuator level — pressure transmitters, proximity switches, flow meters, and motor feedback signals — all feeding into the I/O subsystem managed by the AS-J890-101 processor.

From the field, signals are conditioned and passed through Modicon AS-B819-100 or AS-B828-016 discrete I/O modules mounted on the same 984 chassis. The AS-J890-101 coordinates the I/O scan cycle, ensuring that all module data is refreshed deterministically within each PLC scan. This scan data is then made available to the Modicon 984-685 CPU for ladder logic execution and process control decisions.

For distributed architectures, the AS-J890-101 supports communication over the Modbus Plus peer network, enabling the 984 controller to exchange data with remote I/O drops equipped with AS-MBPL-001 Modbus Plus adapters. This allows plant engineers to extend I/O capacity across large facilities without running extensive home-run wiring back to the main control panel — a critical advantage in petrochemical plants, water treatment facilities, and automotive assembly lines.

At the supervisory level, SCADA systems such as Wonderware InTouch or Ignition connect to the Modicon 984 network via Modbus TCP/IP gateways — for example, the Schneider Electric 174 CEV 300 10 Ethernet communication module — which bridges the Modbus Plus network to the plant’s Ethernet backbone. This allows operators at HMI workstations to monitor real-time process values, acknowledge alarms, and issue setpoint changes, all with data ultimately sourced from the I/O scan managed by the AS-J890-101.

Variable speed drives and soft starters on the network — such as Schneider Electric ATV61 or ATV71 series variable frequency drives — can be integrated into the same Modbus Plus segment, allowing the 984 PLC to command speed references and read back drive status, fault codes, and energy consumption data. This creates a unified automation data loop from motor-level feedback all the way to enterprise MES and ERP systems via OPC-DA or OPC-UA edge gateways.

For applications requiring edge intelligence, an industrial edge gateway such as the Schneider Electric EcoStruxure Machine Advisor or a third-party IIoT gateway can poll the Modbus network, aggregate historical trend data, and push it to cloud analytics platforms — enabling predictive maintenance models based on I/O cycle anomalies detected at the AS-J890-101 level.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation. Older Modicon 984 systems often operate in isolation from newer Ethernet-based controllers and cloud-connected systems, creating data silos that prevent plant managers from achieving real-time production visibility. The AS-J890-101 addresses this by maintaining the integrity of the Modbus Plus communication layer while supporting gateway integration to modern Modbus TCP/IP and OPC-based supervisory systems.

Remote monitoring is another critical requirement in modern industrial operations. With the AS-J890-101 maintaining reliable I/O scan cycles, SCADA operators can configure alarm thresholds on any monitored I/O point — triggering SMS or email notifications when process values deviate from normal ranges. This eliminates the need for on-site personnel to manually inspect field conditions, reducing both labor costs and response times during process upsets.

For facilities undergoing production line transparency initiatives — often driven by ISO 9001 quality management or OEE (Overall Equipment Effectiveness) improvement programs — the AS-J890-101 provides the foundational data acquisition layer. Every I/O state change is captured in the PLC scan and made available to MES systems for cycle time analysis, downtime tracking, and quality event logging.

System expansion is straightforward with the Modicon 984 architecture. Additional I/O modules can be added to the chassis, and remote I/O drops can be connected via Modbus Plus without requiring changes to the core processor configuration. This modularity protects capital investment in existing 984 infrastructure while allowing incremental capacity growth as production demands increase.

Industrial Connectivity FAQ

Q1: What communication protocols does the Modicon AS-J890-101 support, and is it compatible with modern SCADA systems?
The AS-J890-101 operates within the Modicon 984 I/O bus architecture and supports Modbus RTU and Modbus Plus peer communication. Modern SCADA systems connect to the 984 network via Modbus TCP/IP gateways or OPC servers, providing full compatibility with platforms such as Ignition, Wonderware, and FactoryTalk. Communication latency on a properly configured Modbus Plus network is typically under 5 milliseconds per node, making it suitable for real-time process control applications.

Q2: Can the AS-J890-101 be used in a mixed-protocol environment alongside newer Schneider Electric controllers?
Yes. The AS-J890-101 can coexist in a plant network alongside newer Schneider Electric Modicon M340, M580, or Quantum series controllers by using Modbus TCP/IP gateways to bridge the Modbus Plus segment to the Ethernet-based control network. This allows legacy 984 systems to participate in unified SCADA and MES data architectures without requiring a full controller replacement.

Q3: How is network stability ensured during continuous production operations?
The Modicon 984 platform with the AS-J890-101 processor uses a deterministic token-passing protocol on the Modbus Plus network, which eliminates collision-based communication delays common in standard Ethernet. This ensures consistent I/O scan times even under high network load. For mission-critical applications, redundant communication paths can be configured using dual Modbus Plus network adapters.

Q4: What does the warranty terms confirmed during quotation cover, and is pre-shipment testing performed?
Every AS-J890-101 unit supplied by ZYPLC undergoes full functional testing prior to shipment, verifying I/O bus communication, processor initialization, and module recognition. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides post-sale support for installation, configuration, and network integration queries. Contact us at plc.sales@zyplc.com or +86 19859288691 for RFQ and availability.
