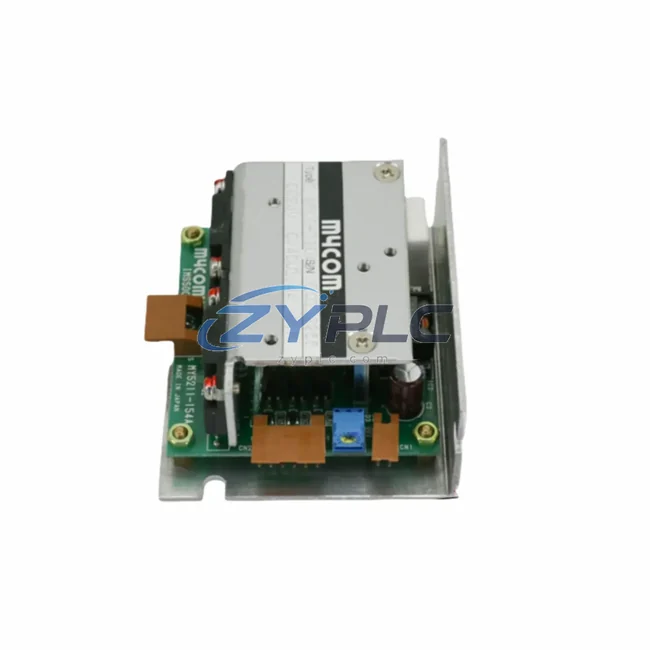

MYCOM IMS500-120AL Stepper Motor Driver for IMS500

MYCOM IMS500-120AL Stepper Motor Driver for IMS500. Availability, condition, lead time, compatibility, and export shipment options are confirmed through RFQ.

SKUIMS500-120AL BrandMYCOM TypeStepper Motor Driver SeriesIMS500 CategoryDrives & Motors
AvailabilityConfirm by RFQ, global sourcing supported
ConditionNew / Refurbished / Tested, subject to stock
Lead TimeFast quotation, shipment arranged after confirmation
ShippingDHL / FedEx / UPS worldwide
Need quotation, availability, or a compatible replacement?

Technical Details

Product specification and sourcing notes

Review the original product details, compatibility notes, and sourcing information in a clearer technical document layout.

MYCOM IMS500-120AL Stepper Motor Driver for IMS500: Control System and Upstream–Downstream Coordination

In modern industrial automation, the performance of any single component is inseparable from the architecture in which it operates. The MYCOM IMS500-120AL is a DC-input stepper motor driver engineered specifically for deployment within the IMS500 series control platform, where it functions as a precision motion execution node within a layered automation hierarchy. Rather than evaluating this driver in isolation, engineers and system integrators should understand its role across the control layer, I/O layer, network layer, power layer, HMI layer, and execution layer — and how its integration contributes to system consistency, scalability, redundancy, and long-term maintainability.

The IMS500-120AL accepts pulse-and-direction command signals from upstream motion controllers, translating digital positioning commands into precise bipolar stepper motor excitation. Within the IMS500 series architecture, this driver is designed to operate in close coordination with MYCOM’s PMC-2HS two-axis pulse motion controller, which handles trajectory planning, acceleration/deceleration profiles, and multi-axis synchronization at the control layer. The IMS500-120AL receives step pulses and direction signals from the PMC-2HS, executing each positioning command with consistent microstep resolution and low-vibration current control.

At the I/O layer, the IMS500-120AL interfaces with the broader signal infrastructure of the control cabinet. Alarm outputs, ready signals, and enable inputs connect to the system’s I/O terminal modules, ensuring that fault conditions are propagated upstream to the PLC or motion controller without delay. This tight signal integration is essential in multi-axis systems where a single axis fault must trigger coordinated safe-state responses across the entire machine. Engineers deploying the IMS500-120AL alongside the IMS500-100AL and IMS500-200AL in multi-axis gantry or conveyor systems benefit from a unified alarm architecture that simplifies both commissioning and fault diagnosis.

From a power layer perspective, the IMS500-120AL operates on a DC supply rail, typically sourced from a regulated DC power supply unit mounted within the same control enclosure. Proper power rail design — including adequate capacitance, inrush current management, and separation of logic and motor power — is critical to achieving stable microstep performance. In systems where multiple IMS500-series drivers share a common DC bus, power sequencing and bus voltage monitoring become important design considerations. The IMS501 series drivers, which share architectural compatibility with the IMS500 platform, can be deployed in adjacent axes to maintain a consistent power and signal topology across the cabinet.

At the network and communication layer, the IMS500-120AL itself operates on hardware-level pulse interfaces rather than fieldbus protocols, making it compatible with any upstream controller capable of generating step/direction signals — including MYCOM’s own PCD-233A pulse command device and third-party PLCs with high-speed pulse output modules. In systems requiring fieldbus integration, a motion network gateway or pulse-to-EtherCAT bridge module can be inserted between the controller and the IMS500-120AL, preserving the driver’s hardware interface while enabling network-level diagnostics and parameter management.

The HMI layer interacts with the IMS500-120AL indirectly through the motion controller and PLC. Operators monitoring axis position, speed, and fault status on an HMI panel receive data aggregated from the PMC-2HS or the system PLC, which in turn reads status signals from the IMS500-120AL’s I/O interface. This layered data flow ensures that HMI displays remain consistent with actual drive states, supporting both real-time monitoring and historical fault logging.

At the execution layer, the IMS500-120AL drives bipolar stepper motors in applications requiring precise open-loop positioning — including indexing tables, linear actuators, dispensing systems, and label applicators. Its microstep resolution settings allow engineers to balance positioning resolution against torque ripple, adapting the driver’s output characteristics to the mechanical requirements of each axis. In systems where the IMS500-120AL is paired with MYCOM stepper motors from the compatible motor series, the driver’s current waveform is optimized for the motor’s winding inductance, reducing resonance and improving mid-speed torque stability.

Product Specification Table

Parameter Specification
System Role Stepper Motor Driver — Execution Layer Node, IMS500 Series Architecture
SKU IMS500-120AL
Brand MYCOM (Japan)
Series IMS500
Input Voltage DC (refer to IMS500-120AL datasheet for rated voltage range)
Output Current Up to 1. 2 A/phase (per model designation)
Control Interface Pulse / Direction (Step & Direction)
Microstep Resolution Selectable (full, half, and microstep modes)
Communication Hardware pulse interface; compatible with PLC high-speed pulse outputs and MYCOM PMC-series controllers
Alarm Output Yes — fault signal for upstream I/O integration
Installation Environment Control cabinet / DIN rail mount; industrial environment
Origin Japan
Warranty warranty terms confirmed during quotation — covers manufacturing defects and verified operational faults

System Compatibility Notes

Deploying the IMS500-120AL within a complete control system requires careful selection of coordinated components across all architecture layers. At the motion control layer, the MYCOM PMC-2HS two-axis pulse motion controller provides the trajectory generation and pulse output that the IMS500-120AL requires. For systems with more than two axes, the PCD-233A pulse command device extends the command infrastructure without requiring a full PLC motion module upgrade.

Adjacent stepper axes in the same cabinet are commonly populated with the IMS500-100AL (lower current rating) or IMS500-200AL (higher current rating), depending on the torque requirements of each axis. This family consistency simplifies spare parts management and reduces the number of unique driver configurations that maintenance teams must support. In systems requiring higher power density, the IMS501 series drivers offer an architecturally compatible alternative with enhanced thermal performance.

At the I/O and terminal layer, DIN rail-mounted terminal blocks and I/O relay modules connect the IMS500-120AL’s alarm and enable signals to the system PLC’s digital input cards. Proper terminal labeling and cable segregation between signal and power wiring are essential for long-term maintainability. In redundant system designs, a secondary enable path through a safety relay module ensures that the IMS500-120AL can be de-energized independently of the main PLC output, supporting SIL-rated safe-stop architectures.

Power supply selection for the IMS500-120AL should account for the combined current draw of all drivers on the shared DC bus, with a derating factor applied for thermal margin. A regulated switching power supply with overvoltage protection and remote sense capability is recommended for multi-axis IMS500 installations. Bus capacitors mounted close to each driver’s power input terminals help suppress voltage spikes generated during motor deceleration, protecting both the driver and the power supply from transient overvoltage events.

Industrial Application Notes

The IMS500-120AL is deployed across a wide range of industrial automation sectors where precise open-loop stepper motion is required within a structured control architecture. In electronics manufacturing and PCB assembly lines, the driver controls pick-and-place axes, solder paste dispensing heads, and optical inspection stage movements, where repeatable positioning accuracy and low vibration are critical to product quality. The driver’s microstep capability reduces mechanical resonance in high-speed indexing applications, improving throughput without requiring closed-loop feedback hardware.

In packaging and labeling machinery, the IMS500-120AL drives label applicator rollers, film feed axes, and carton indexing conveyors. Its integration within the IMS500 series architecture allows the machine builder to standardize on a single driver platform across multiple machine models, reducing engineering time and simplifying after-sales support. In food and beverage processing lines, where washdown environments require careful enclosure design, the IMS500-120AL is mounted within sealed IP-rated control cabinets, with cable glands and conduit entries maintaining the enclosure’s environmental rating.

In power generation and water treatment facilities, the IMS500-120AL controls valve actuator positioning axes and chemical dosing pump drives, where reliable open-loop positioning over long duty cycles is more important than sub-millimeter accuracy. The driver’s warranty terms confirmed during quotation and availability subject to RFQ confirmation availability from ZYPLC support the maintenance planning requirements of these critical infrastructure applications, where unplanned downtime carries significant operational and regulatory consequences.

In semiconductor and flat panel display manufacturing, the IMS500-120AL is used in wafer handling robots, substrate transport stages, and mask alignment systems, where the driver’s low-vibration current control minimizes mechanical disturbance during precision positioning moves. In these applications, the driver is typically integrated with a MYCOM PMC-series controller and a high-resolution encoder feedback system on the mechanical stage, with the IMS500-120AL operating in open-loop mode while the stage position is verified by the encoder at the end of each move.

Product Compatibility FAQ

Q1: Is the IMS500-120AL compatible with third-party PLCs and motion controllers, or is it limited to MYCOM controllers?
The IMS500-120AL uses a standard pulse/direction hardware interface, making it compatible with any upstream controller capable of generating step and direction signals at the appropriate voltage and frequency levels. This includes Mitsubishi, Omron, Siemens, and Keyence PLC motion modules, as well as dedicated motion controllers from other manufacturers. Engineers should verify the pulse voltage level compatibility between the controller’s output stage and the IMS500-120AL’s input specifications before finalizing the interface design. system integration with existing control platforms is straightforward in most industrial cabinet configurations.

Q2: How does the IMS500-120AL support long-term maintenance in multi-axis systems with mixed driver generations?
The IMS500 series maintains a consistent mechanical footprint and electrical interface across driver variants, allowing the IMS500-120AL to be replaced with a same-model unit without rewiring or reconfiguring the upstream controller. ZYPLC maintains availability subject to RFQ confirmation of IMS500-series drivers to support maintenance requirements, and the warranty terms confirmed during quotation covers manufacturing defects identified during the warranty period. For systems mixing IMS500-120AL units with IMS500-100AL or IMS500-200AL drivers, the shared alarm signal architecture allows a single PLC input card to monitor fault states across all axes using a common wiring scheme.

Q3: What commissioning steps are required when integrating the IMS500-120AL into an existing IMS500 series control cabinet?
Commissioning the IMS500-120AL in an existing IMS500 architecture involves verifying DC bus voltage at the driver’s power terminals, confirming DIP switch settings for current level and microstep resolution, and testing the pulse/direction interface with a low-speed jog command before running full-speed positioning moves. Engineers should confirm that the upstream controller’s pulse output frequency does not exceed the IMS500-120AL’s maximum input frequency at the selected microstep resolution. Alarm output wiring should be verified by triggering a test fault condition and confirming that the PLC input registers the fault state correctly. Full commissioning documentation, including parameter records and wiring diagrams, should be archived for future maintenance reference.
